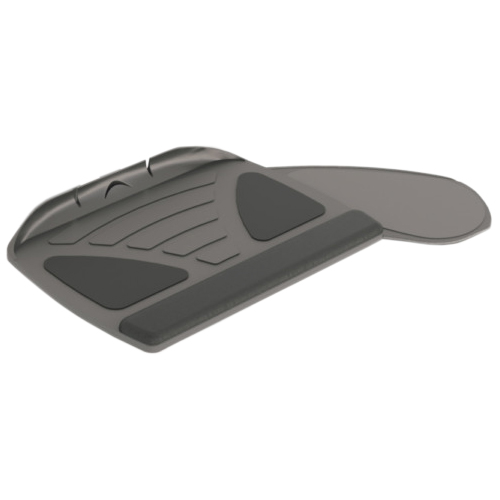

Banana Board Keyboard Tray

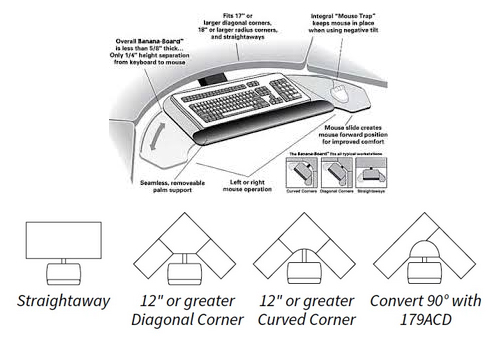

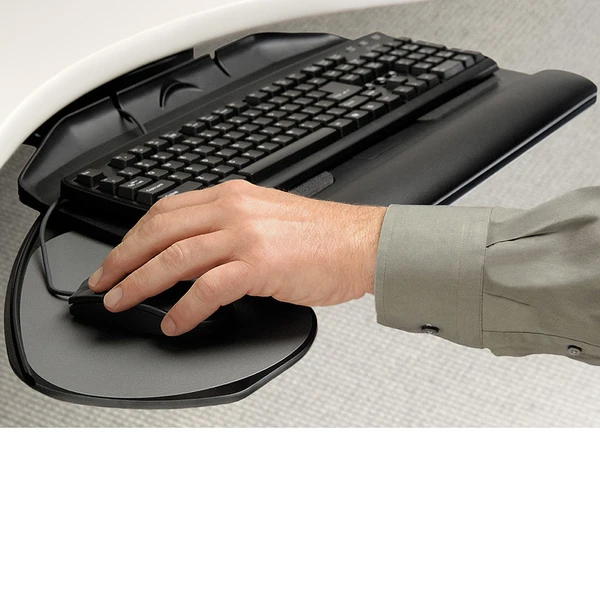

The Banana Board Keyboard Tray from WorkRite Ergonomics is an ideal solution when there is a need to reduce the reach for the mouse. The innovative sliding curved mousing surface from which the Banana Board gets its name "pivots" or "slides" through a track on the underside of the keyboard tray. Due to the pivoting action and curved design the end result is that the mousing surface is positioned about 3" closer than the keyboard tray itself. This means that smaller individuals are able to keep their mouse much closer than it would normally be on a traditional rectangular tray and eliminate the potential for overreaching. The fact that the mousing surface is effortlessly repositioned to either the left or right means it works equally well for both right and left-handed use and can encourage load-balancing by making it easier to switch between right and left-handed mousing throughout the day.

The Banana Board features extremely sturdy construction. The metal mounting plate also serves as the storage track for the sliding 0.25" thick rigid composite mousing surface. The keyboard tray itself is 19" wide by 13" deep and comes with a detachable 3" deep leatherette-covered foam palm support. Because the tray only needs to accommodate a keyboard it is also possible to deploy a separated keyboard with up to 3" of separation. The tray surface also features two grip pads to keep keyboards firmly in place. The sliding "banana board" mousing surface sits 0.5" below the keyboard tray and has a low-friction surface on both ends to ensure optimum mouse control. A retaining strip runs along the rear of the mousing surface and cables can be routed through the dual guides in the rear of the keyboard tray. The curved design of the mousing surface also makes the Banana Board a good solution for inside curved and angled corners by moving the mouse away from the desk where interference with free movement may occur.

• Keyboard and Mouse Guards: The raised keyboard guard is equipped with integrated cable guides for both Left and Right positioning and a retaining ridge at the rear of the mousing surface keeps the mouse in place when the tray is negatively inclined.
• Durable: High quality metal, composite, and plastic construction provides a rigid surface with minimal bounce and flexion.
• Detachable Palm Support: The tray is equipped with a 3.0" deep leatherette over foam palm support that can be detached if desired.

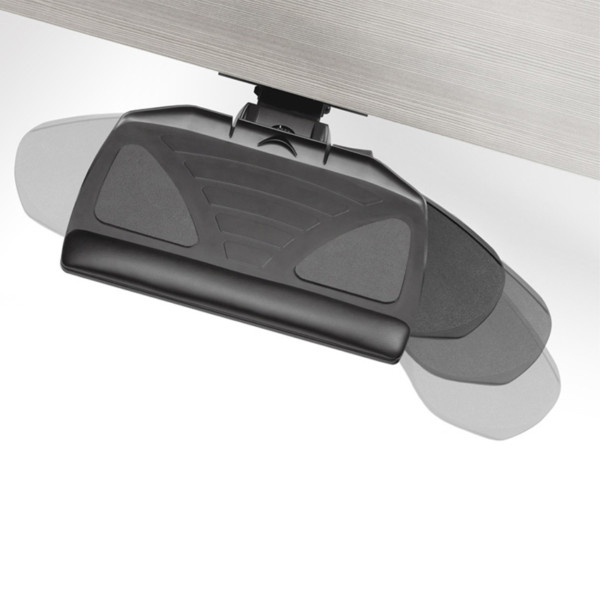

• Configurable for Right or Left-hand Mousing: The sliding "banana board" mousing surface effortlessly changes between left and right hand placement.
• Compact Design for Storage Purposes: Those with limited storage space may want to consider the Banana Board Tray for the storability of the mousing surface. Removing the mouse from the tray permits the mousing surface to be fully stored below the keyboard. This reduces the total width to less than 20", permitting the complete package to store in more restricted environments.
• Ready to Mount: The Banana Board Keyboard Tray comes ready to mount to any KV Waterloo Keyboard Arm. All necessary hardware is included.

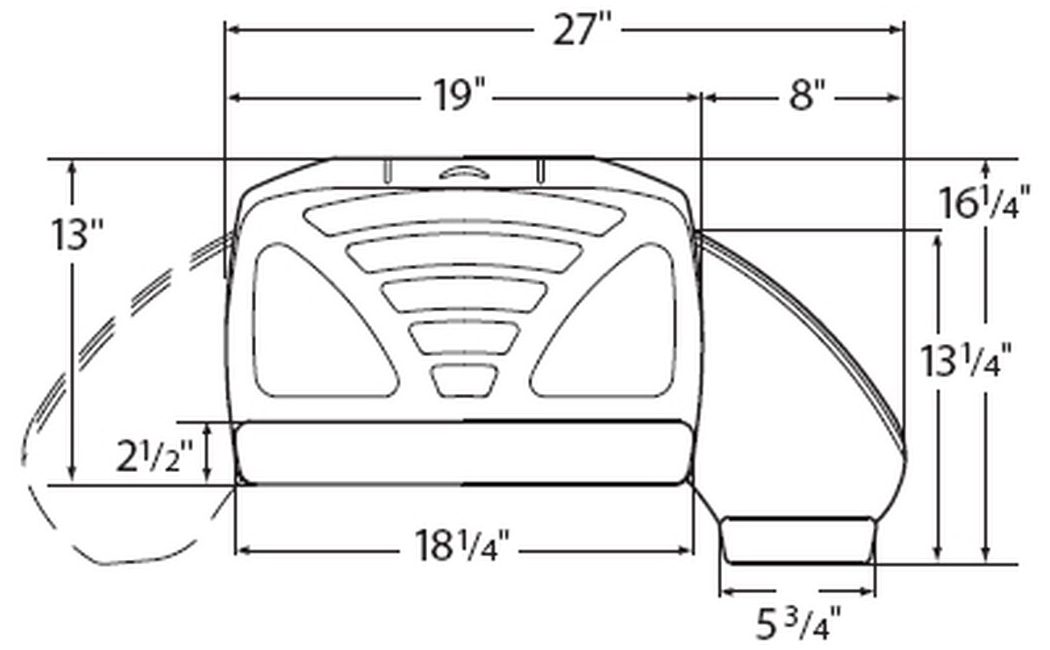

• Width:
  Keyboard Tray: 19" (48.3 cm)
  Keyboard Tray with Mousing Surface Extended: 27.0" (68.6 cm)
• Depth (front to back):
  Keyboard Tray:

  • Overall Depth: 13" (33.0 cm)
  • Usable Depth without Palm Rest: 12.0" (30.5 cm)
  • Usable Depth with Palm Rest: 9.875" (25.1 cm)


  With Mousing Surface Extended: 16.25" (41.3 cm)
• Height:
  Tray and Mousing Surface: 1" (2.54 cm)
  Overall with Keyboard Guard: 1.75" (4.45 cm)

• Height of Keyboard Guard: 0.75" (2.22 cm)
• Compatible Keyboard Arms: KV Waterloo Keyboard Arms
