| Product Summary |
---|
The Mini Keyboard from Solidtek offers a very narrow footprint of just 11.3" that serves well where space is extremely limited or where the reach to the mouse needs to be significantly reduced. It achieves this by eliminating the traditional numeric keypad and replacing it with an embedded numeric keypad with legends clearly marked on the front face of the keycaps. This embedded keypad is located in the right half of the keyboard, with function accessed via the FN key. To make the keyboard even more compact, only the alpha-numeric keys are full-size and standard 19.4 mm spacing. The remainder of the keys are significantly narrower, with just 14 mm spacing which can make accurate targeting more difficult, especially for those with larger fingers.
The Mini Keyboard employs membrane keyswitches with a shorter-than-average travel distance (3 mm instead of the standard 4 mm) and has a somewhat pronounced positive incline (i.e. it is higher at the back than at the front), in spite of the comparatively low profile it presents. In general, a neutral (flat), or negative incline is advisable for those experiencing pain in the backs of the hands, wrists, or forearms. A low cushion such as the SAMA Palm Support can be used to help offset some of the positive incline.
The Mini Keyboard is available in models with the standard US English layout as well as a unilingual French Canadian legended version (note that this is NOT bilingual).
If you still wish to have a separate numeric keypad for occasional use the USB Scissor-Switch Membrane Numeric Keypad is a very economical add-on accessory. | Ergonomic Benefits |
---|
Eliminates Overreaching Regular size keyboards with integrated numeric keypads on the right make reaching for the mouse on the right-hand side more difficult. The further one has to reach for the mouse, the greater the risk of injuries to the arm and shoulder due to overreaching. A compact keyboard like the Mini Keyboard will help remedy this potential problem by replacing the integrated numeric keypad with an embedded numeric keypad which requires no space.
Reduces Risk of Wrist Pain The relatively low front profile of the Mini Keyboard, just 0.5", minimizes the unhealthy, upward bend at the wrist known as wrist extension. Learn More About Wrist Extension.Note: Adding a low profile SAMA Palm Support can potentially reduce or even eliminate that bend, virtually eliminating any wrist extension.
| Features |
---|
- Compact: The compact size of the Mini Keyboard makes it ideal for smaller spaces. In order to achieve this compactness, the dedicated number pad has been eliminated (replaced by the embedded keypad) and many of the lesser used keys have been reduced in size.
- Embedded Numeric Keypad: The Mini Keyboard achieves its compact size due to the elimination of an integrated numeric keypad on the left or right hand side. However, it does have an embedded numeric keypad, which is easily and quickly accessed through a toggle key. Embedded Numeric Keypad Access Instructions.
If you still wish to have a separate numeric keypad for occasional use the USB Scissor-Switch Membrane Numeric Keypad is a very economical add-on accessory. - Concave Keycaps: The keycaps have a slightly concave surface that improves tactility by maximizing finger pad contact on the keycaps and guiding the fingers to the key centers.
- English and French Canadian Layout Options: The Mini Keyboard is available in two models: one with English legends and one with French Canadian legends. Learn how to access the French Canadian characters in the French Canadian layout.
- Portable: The slim profile and dimensions mean that the Mini Keyboard is highly portable. Combining it with a portable laptop stand to elevate a laptop screen can greatly improve ergonomics when working remotely.
| Images and Multimedia |
---|

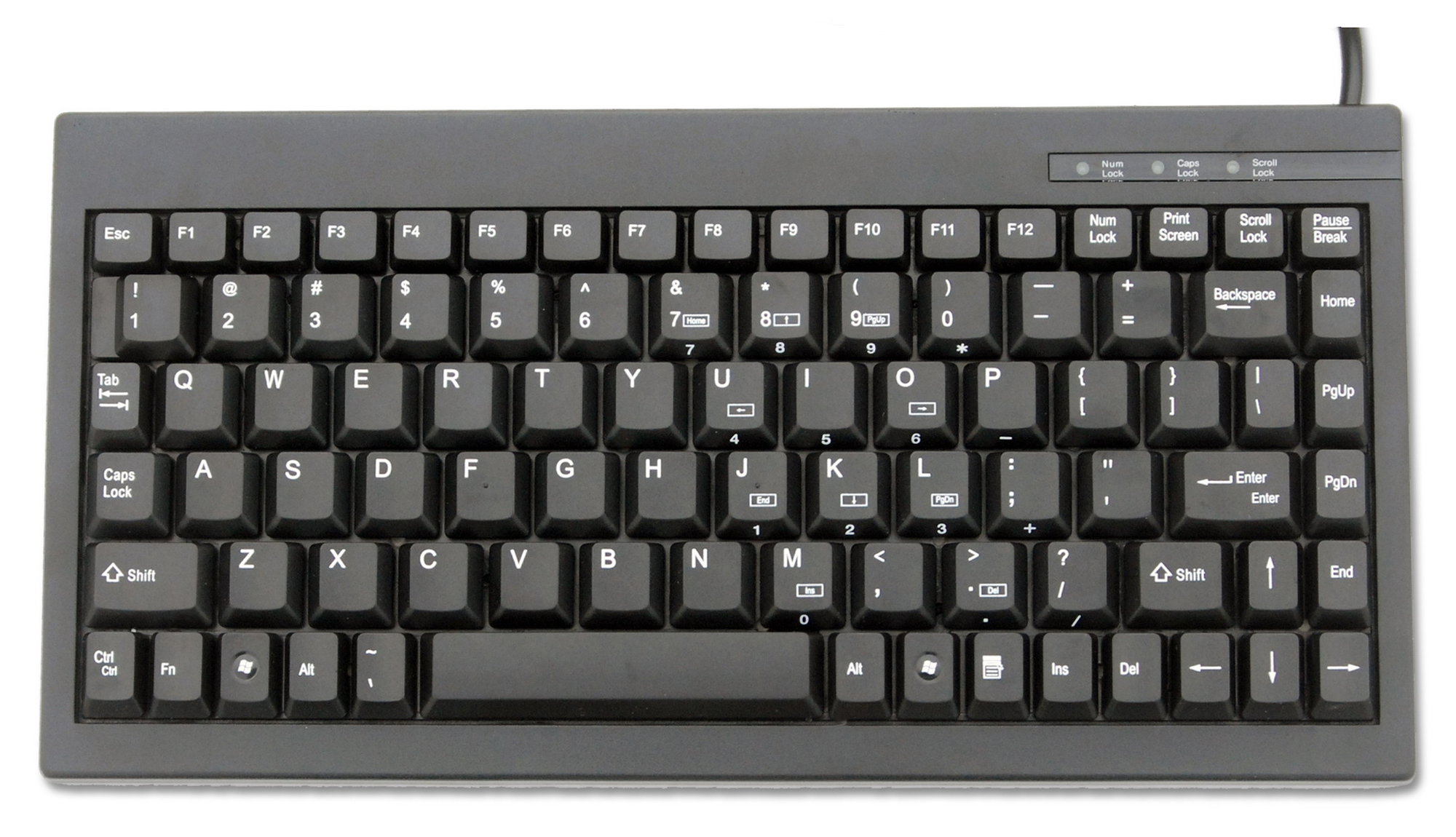

![Click to enlarge Mini-Keyboard - Black Model](https://www.ergonomicdistribution.com/images/gallery/solidtek_mini_keyboard_g1_125.jpg) Mini-Keyboard - Black Model

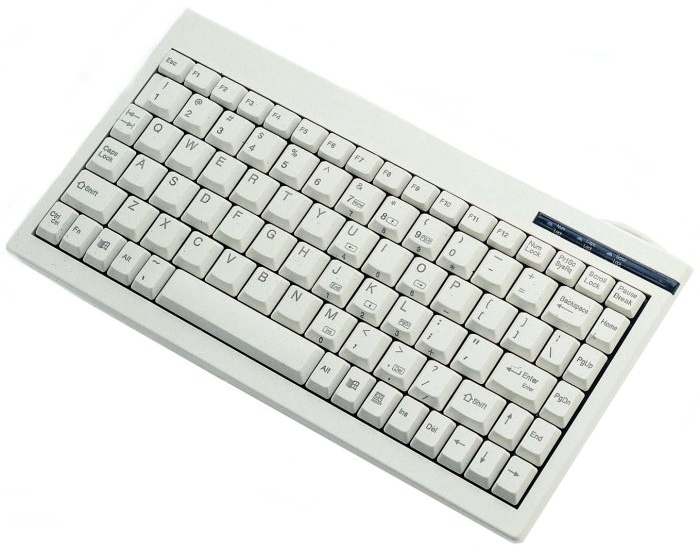

| ![Click to enlarge Mini-Keyboard - White Model](https://www.ergonomicdistribution.com/images/gallery/solidtek_mini_keyboard_g2_125.jpg) Mini-Keyboard - White Model

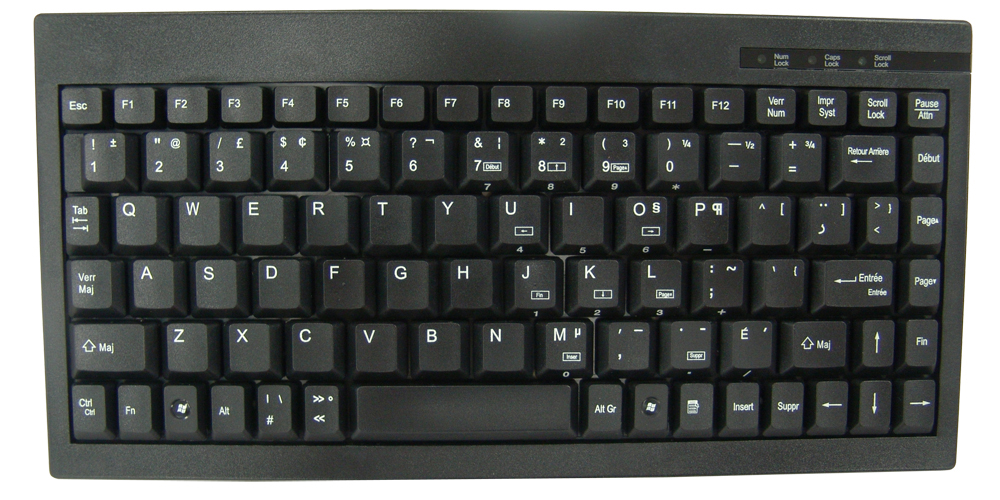

| ![Click to enlarge Mini-Keyboard - French Canadian Layout](https://www.ergonomicdistribution.com/images/gallery/solidtek_mini_keyboard_g3_125.jpg) Mini-Keyboard - French Canadian Layout

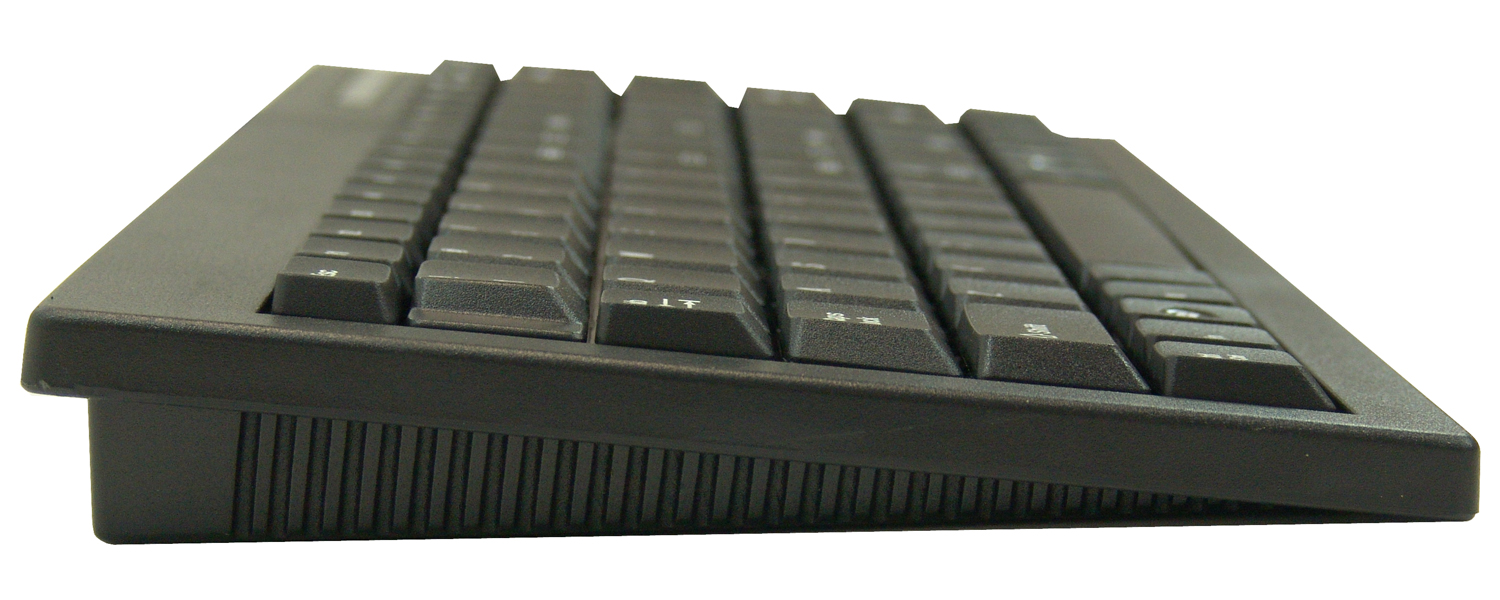

| ![Click to enlarge Mini-Keyboard - Side Profile](https://www.ergonomicdistribution.com/images/gallery/solidtek_mini_keyboard_g4_125.jpg) Mini-Keyboard - Side Profile
| |
| Technical Specifications |
---|
- Width: 11.30" (28.7 cm)
- Depth (front-to-back): 5.51" (14.0 cm)
- Height:
At Front: 0.5" (1.27 cm) At Rear: 1.14" (2.9 cm) - Weight: 1 lb (450 grams)
- Keys: 88/89 keys with embedded numeric keypad and 12 dedicated function keys (with full 104/105 key functionality)
- Key Pitch:
Alpha-Numeric Keys: 19.05 mm Secondary Keys: 14.0 mm - Peak Force: 50 g ± 10 g
- Switch Travel: 3.0 ± 0.3 mm
- Keyswitch Type: Low travel (3 mm) membrane
- Keyswitch Rating: 5 million actuations
- Numeric Keypad Actions: 20
- Compatibility:
USB: Windows 10, 8, 7 and earlier PS/2: Windows 95 and up - Interface: USB or PS/2
- Warranty: 1 year limited warranty
- Package Contents: Mini Keyboard, User Guide
| Usage Tips |
---|
- If you have larger hands you may wish to consider a different keyboard as the reduced widths of most of the secondary keys may make targeting of these keys difficult. There are numerous keyboards that are "compact" but that retain full-size keys throughout.
- This compact keyboard will work equally well for you whether you position your mouse on the right or left sides. The narrow footprint should aid you in reducing your reach on either side. If you feel that you still need a wrist support of some sort you may want to consider adding the low profile SAMA Palm Support. At just 0.5" in thickness and just 12" wide the SAMA will support the palms for a comfortable neutral alignment of the wrists.
- Familiarize yourself with the embedded numeric keypad. If your work requires occasional periods of more intense numeric entry using the numeric keypad may prove to be convenient. If the embedded numeric keypad does not meet your requirements consider adding one of the external numeric keypad options available as accessories.
| Models |
---|
For related products, visit our online product listing. | Model # | Description | Synnex SKU |
---|
ACK-595U | USB model, black, US English layout | 5358910 | ACK-595U-CF | USB model, black, French Canadian Unilingual layout | 5519459 | SK595UW | USB model, white, US English layout | | ACK-595 | PS/2 model, black, US English layout | | SK595W | PS/2 model, white, US English layout | | SK595-SIL | PS/2 model, silver, US English layout | | SK595UW-CF | USB model, white, French Canadian layout | | SK595UW-CLEARANCE | SolidTek Mini-Keyboard, embedded numeric keypad, 11.3" wide by 5.5" deep by 1.1" tall, 88 keys, English QWERTY unilingual layout, white, USB, Keycaps on unit have varying degrees of yellowing, | | SK595W-CF | PS/2 model, white, French Canadian layout | |
| Accessories |
---|
Model # | Description |
---|
SPS | SAMA Palm Support, 2" x 12" x 0.5" | SKNP-100UTB | 17 Key Numeric Keypad, Translucent Blue, USB Original Price $35. Is now 75% off - $8.75 / unit !!!
|
|
|
