Discus T Footrest

by Score

Accessories

The Discus T Footrest from Score offers a large disc-shaped platform mounted to a sturdy extruded aluminum base and is capable of supporting over 175 lbs. The height adjustment is controlled by a gas cylinder with a large foot-actuated release button conveniently situated at the rear of the platform. The platform tilts freely from between approximately +5° and +30° to encourage active movement throughout the day.

There are two models of the Discus T that offer different ranges of height adjustment. The Discus T 150 adjusts from 2" to 5.9", while the Discus T 250 has a range from 5.8" to 9.8".

Ergonomic Benefits

Can Improve Circulation The Discus T Footrests are designed to provide a resting platform for those seated on average or higher than average seats. Because circulation can be cut off on the back of the thighs when a seat is too high, it is important to have a footrest that can be adjusted to a height suited to the seat height. The Discus Footrest is available in two models that offer adjustment height ranges of 2" - 5.9" and 5.9" - 9.8" respectively.

Supports Proper Foot/Angle Alignment Many office workers sit with one foot forward of the other, putting this foot into a position called plantar flexion. Over time, sustained plantar flexion can cause the calf muscles to become tight and stiff which, in turn, can lead to a range of uncomfortable symptoms in the foot. The Discus T Footrest features an angle adjustable platform that ensures workers are not in the position of plantar flexion when resting their feet.

Improves Upper Body Posture The Discus T Footrest provides a stable and supportive surface that encourages workers to correctly utilize the back of their chair rather than "perching" on the front edge of their seat. This improved posture can reduce the risk of upper back, shoulder and neck pain. Because the Discus Footrest is available in 2 height ranges individuals can select the model that best meets their seating requirements.

Features

Easy Adjustment: Height adjustment of the Discus T Footrest platform can be easily accomplished while seated. The large release button is located at the centre rear of the platform, easily accessible by either foot. Pressing down on the button unlocks the gas cylinder that provides the upward force necessary for upward adjustment. Individuals must then press down with their foot (or feet) to move the platform to a lower level. Releasing the button locks the platform at the new height.
Height Adjustable: The two models of the Discus T Footrest offer two height ranges, 2" - 5.9" and 5.9" - 9.8". The lower range of the Discus T 150 will meet the daily needs of the majority of individuals. The Discus T 250 offers a higher range suitable for those who are sitting on elevated chairs and require a greater elevation of foot support.
Non-Locking Tilting Platform: The Discus T Footrest platform offers a free tilting range from approximately +5° to +30°.
Oversized Foot Platform: The large three-quarter disc-shaped platform is 20" W x 14" D (center) x 16" D (sides). The large surface offers plenty of support to feet of any size.
Ridged Surface: The surface of the Discus T Footrest has curved ridges to help keep the feet in position.
Robust Construction: The Discus T Footrests are sturdily built and designed to offer long life and reliability.

Images and Multimedia

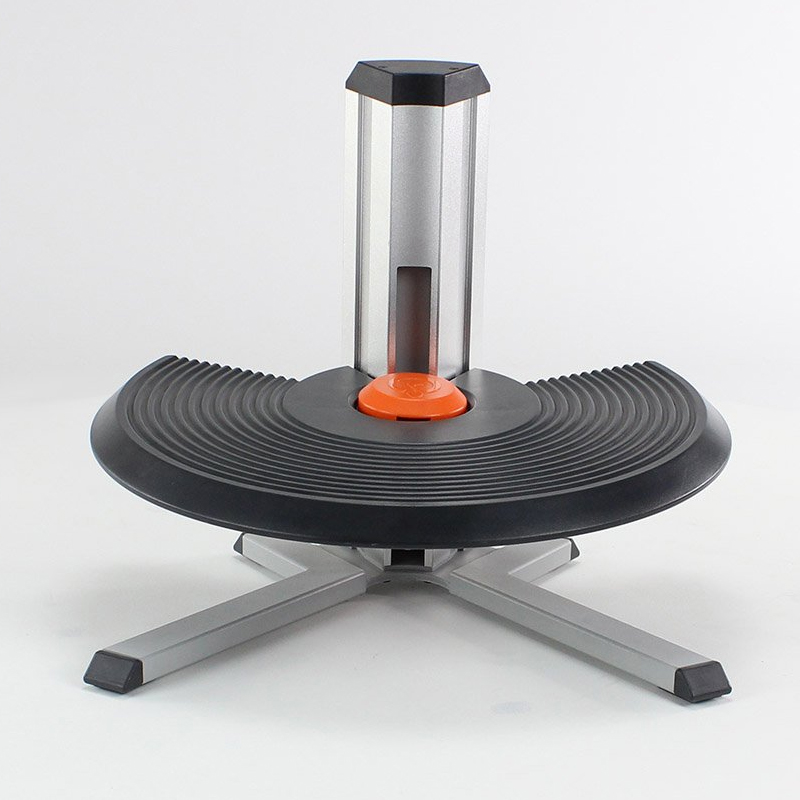

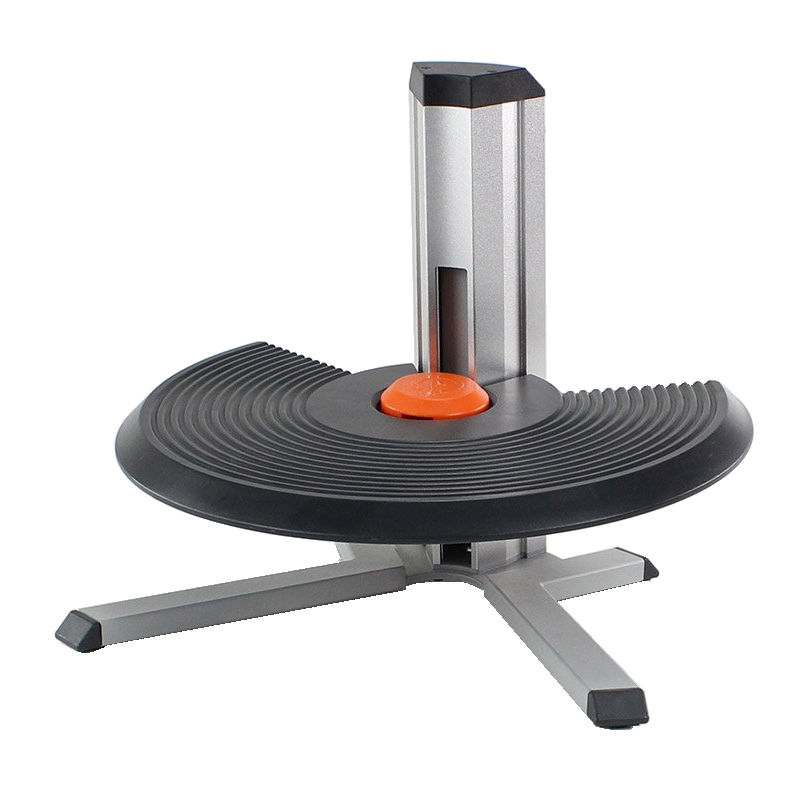

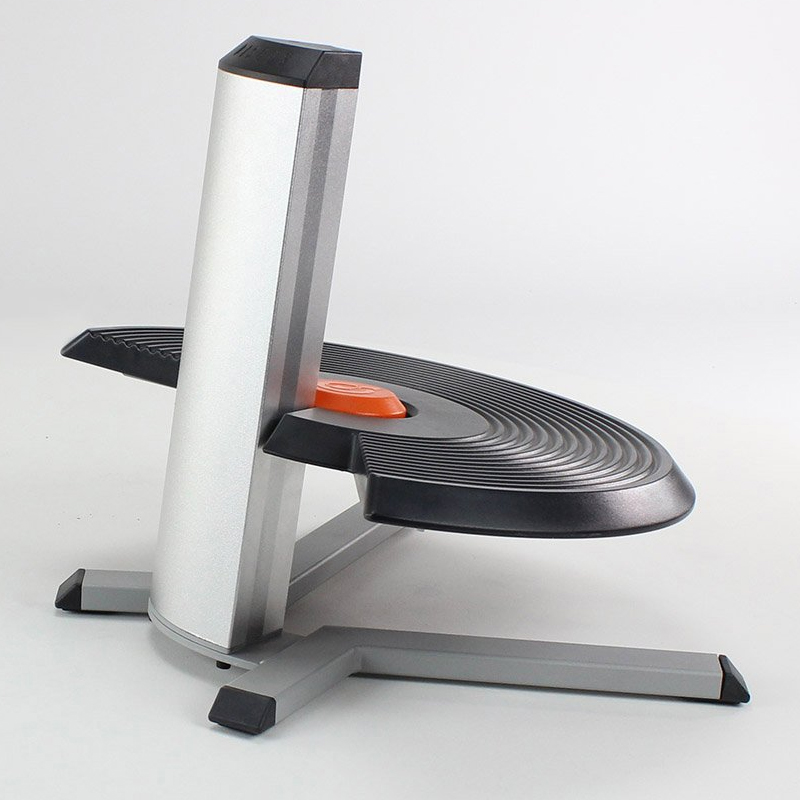

Discus T 150 Footrest	Discus T 150 Footrest	Discus T 250 Footrest	Discus T 250 Footrest
Discus T 250 Footrest

Technical Specifications

Dimensions:
Overall: 20" (50.8 cm)W x 17" (43.2 cm)D x 17.25" (43.8 cm)H
Platform:
- Width: 20" (50.8 cm)
- Depth (front to back): 16" (40.6 cm)
  Note: The platform on the Discus T Footrest is an arced shape, comprising approximately 240° of a complete disc.
Weight: 19 lbs (8.6 kg)
Height Adjustability (above floor):
Discus T 150: 2" to 5.9" (5 to 15 cm)
Discus T 250: 5.8" to 9.8" (15 - 25 cm)
Angle of Platform (Non-Locking): ~ +5° to +30°
Weight Capacity: 176 lbs (80 kg)
Materials: Sturdy Extruded Aluminum Frame and Base, ABS Plastic Platform.
Warranty: 2 Years
Package Contents: Discus T Footrest, Assembly Instructions, Assembly Hardware and Allen Wrench
Assembly Time: 10 minutes
Tool Required: Allen Wrench Included

Usage Tips

Set your Discus T Footrest to the correct height. Your feet should be supported at such a height that your feet are resting comfortably on the footrest without tilting the chair forward or having to stretch to reach the footrest. However, ensure that the platform is not set too high as this will lift the thighs off the seat pan of the chair, reducing overall comfort while also tilting the pelvis backwards and adding undesired pressure to the lower lumbar region.

Models

For related products, visit our online product listing.

Model #	Description	Synnex SKU
DISCUST150	Discus T 150 Footrest, Adjusts from 5-15 cm.	6178040
DISCUST250	Discus T 250 Footrest, Adjusts from 15-25 cm.
