X-keys XK-24 Programmable Keypad

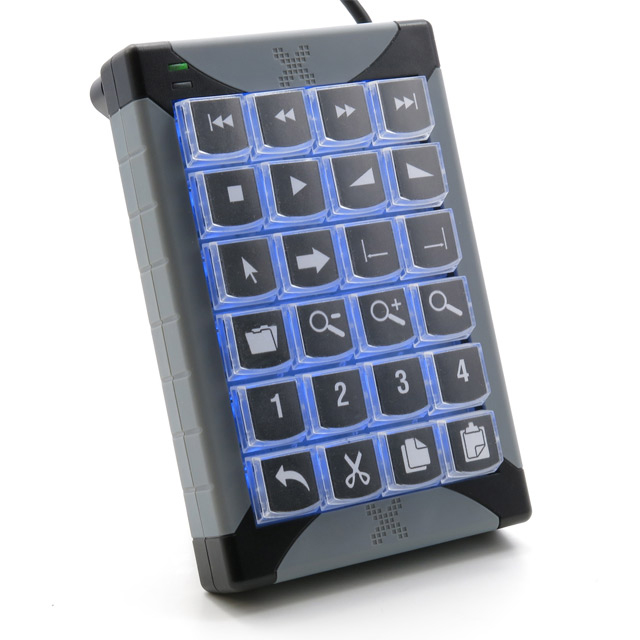

X-keys XK-24 is a user-programmable keypad which becomes a custom input solution able to meet the specific needs of any indivual or application. The XK-24 provides the ability to eliminate repetitive multiple or combination keystrokes by mapping them to a single keystroke. This keypad can be programmed in 2 distinct layers with 46 programmable functions and serve as addition or substitution to the standard USB keyboard. This device can send keystrokes to any operating system or application which recognizes a USB keyboard. The X-keys XK-24 has internal memory which facilitates programming of the keypad on one computer and retention of that programming, so that the custom layout is recognized as plug and play on other computers. Clear key lenses keep printed or handwritten legends securely in place and protect them from wear while making it quick and easy to update them. Red and blue backlighting with adjustable intensity and detachable feet improve the visibility and viewing angle of the key legends.

The Free MacroWorks 3 (MW3) Software for Windows provides simple programming for launching applications, opening files or accessing directories. It also facilitates the insertion of special characters, foreign language letters and symbols as Unicode text strings which can then be assigned to any key. PI Engineering's new PI3 firmware offers new capabilities to the developer including flash updates, a joystick / mouse emulation and the newly developed Reflector Mode. Reflector Mode allows the developer to send outbound messages to the X-keys which can be reflected back to the Operating System in keyboard, mouse or joystick data stream. Mac operators also have multiple programming options or can have the device pre-programmed on a Windows PC using the MacroWorks 3 software.

• Applicable to a Number of Occupations: X-keys is ideal for Engineers, Artists and Graphic Designers, Non-Typists, Video Editors, HTML Coders, Internet Chat, Gamers, Programmers, and Data Entry typists. It also is applicable for anyone who frequently types information like names, phone numbers, passwords and keyboard shortcuts as part of their everyday workload. Keyboard macros and hotkeys offer quick, easy and direct access to specific functions, and the X-keys provides a clearly labeled, physical location for these complex or redundant actions.
• 2 Layers of Portable Programmability: A user can program the keypad into 46 programmable function keys (24 single keys with 2 layers of programming capability using one key to toggle). The X-keys stores assigned keystrokes (scan codes) in its internal memory and may be programmed on one system and used on another (which will work plug and play). Users could make Layer 1 a Left Handed Keypad, and Layer 2 a Right Handed Keypad, or Layer 1 a layout for Program 'A' and Layer 2 a layout for Program 'B'.
• Software Mode vs Hardware Mode: In Software Mode, all programming of the keys is stored in your computer in either MacroWorks3 files (Windows) or Keyboard Maestro (Mac) and thus requires the installation of MacroWorks 3 software for Windows (included) or Keyboard Maestro for Mac (available from software vendor) to function. If the device is moved to another computer without MacroWorks 3 (or Keyboard Maestro) installed, it will not work. It would need to be installed again on another computer and the original programmed file copied to that computer or the device reprogrammed. When programming in Software Mode, sliding the programming switch on the device to the 'on' position does not program the device in Hardware Mode but is part of programming in Software Mode.
  In Hardware Mode the capability accessible through the updated MacroWorks 3 software.

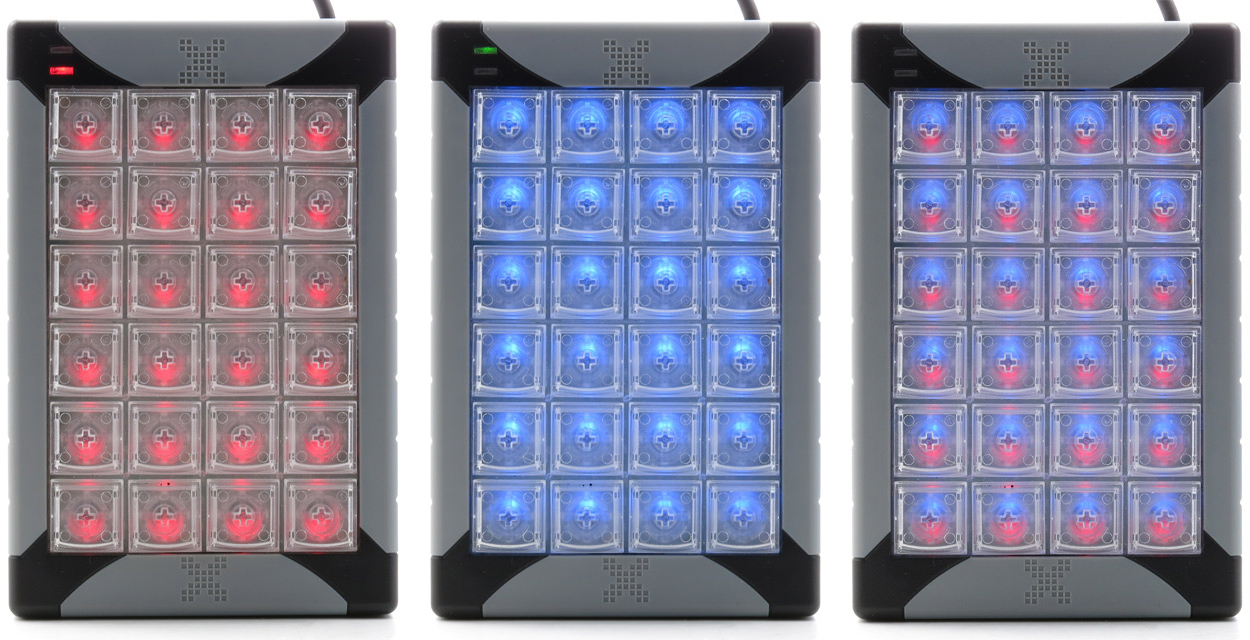

• Blue and Red LED Backlighting: Illuminates key legends in dark working environments with individually customizable blue or red backlights.
• Included Clear Keycaps: The clear keycaps snap off for applying and changing key legends, protecting the legends and providing quick visual cues to locate shortcuts and macros with a glance. Included precut legend sheets make it easy to hand inscribe labels for programmed keys.

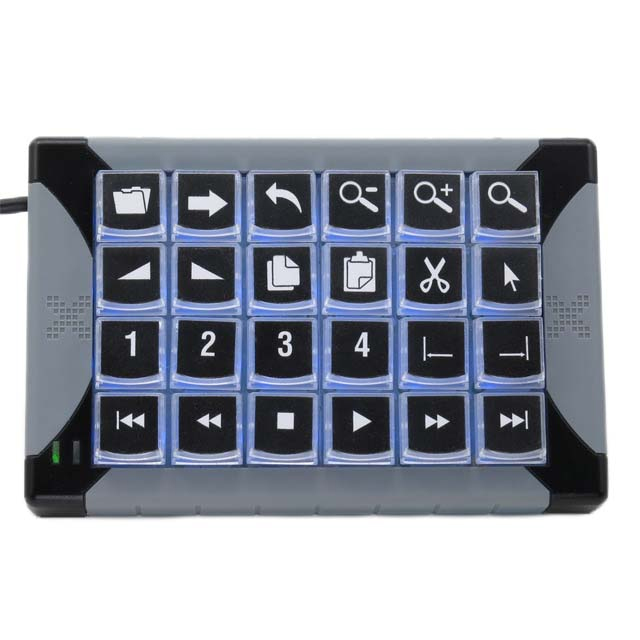

• Keypad Orientation: The keypad can be placed in landscape or portrait position either to fit the needs of the user or limitations of the workstation.

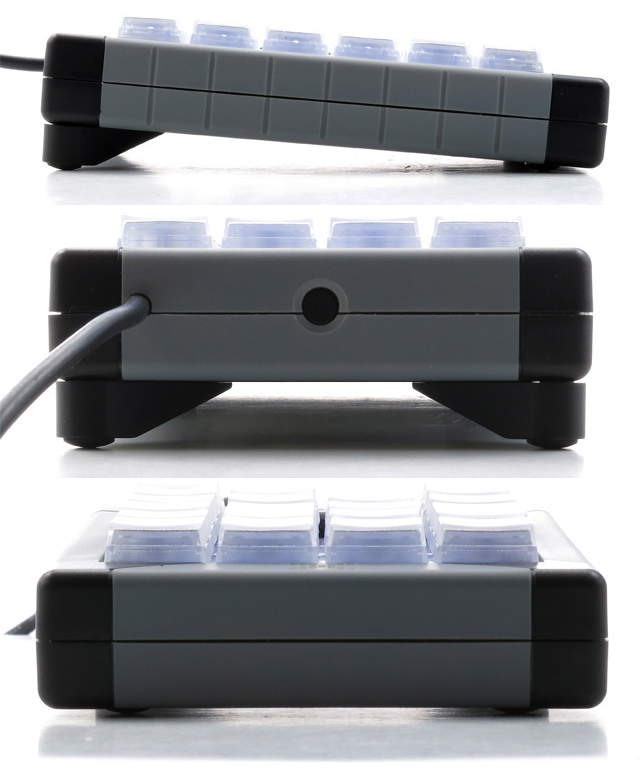

• Angle Adjustability: Removable rubber feet are included with the XKeys and provide 2 tenting positions of 7° 'side-to-side' and 8° 'front-to-back'.

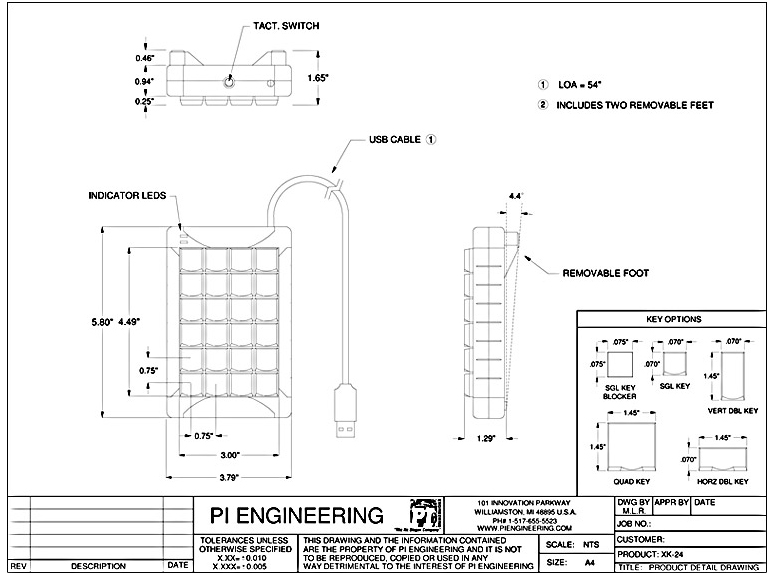

• Width: 3.8" (9.7 cm)
• Depth (front to back): 5.8" (14.7 cm)
• Height: 0.94" (2.4 cm)
• Weight: 10 oz (285 grams)
• Cord Length: 56" (1.42 m)
• Keyswitch Type: Full-travel rubber dome (higher force tactile), carbon on gold contacts, over 1 million operations
• Number of Keys: 24 single keys OR 46 programmable keys with 2nd layer (with one key programmed to toggle)
• Number of Layers: 2 layers, user selectable toggle and/or shift keys
• Key Pitch: 19 mm (removable clear caps for easy labeling)
• Memory Capacity: Each key is allocated 3 characters and a pool of 1000 additional keystrokes is available to any keys that require additional characters
• Memory Type: EEPROM, non-volatile memory (X-Keys retains memory for over 200 years)
• Power Supply: USB port, 5 V (D.C.)
  Backlighting off: less than15 mA
  All backlighting on full: less than 265 mA
• OS Compatibility:
  Use: Any OS via USB HID
  Programming:

  • Windows: XP through 11
  • Mac: OS 10.14 - Mac OS 13
• Compatibility - Programming Software:
  Windows: MacroWorks 3 (free download available)
  Mac: Keyboard Maestro (available from software developer)
• Interface: USB

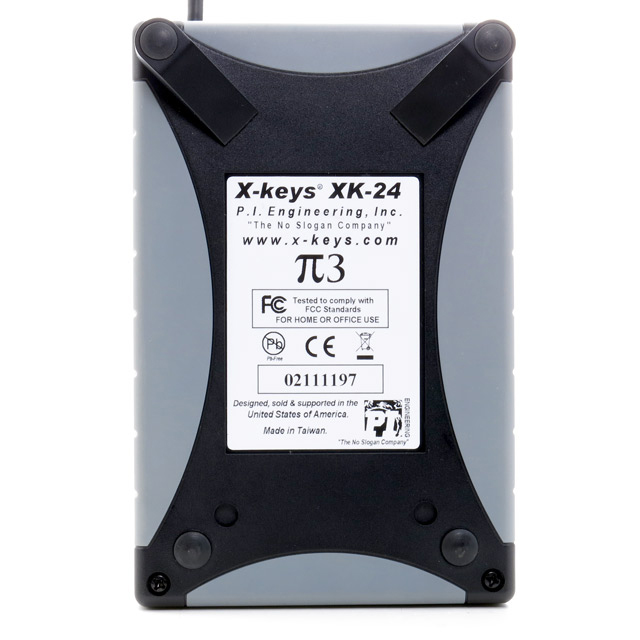

• Certifications: FCC class B, CE, RoHS


• Warranty: 1 year

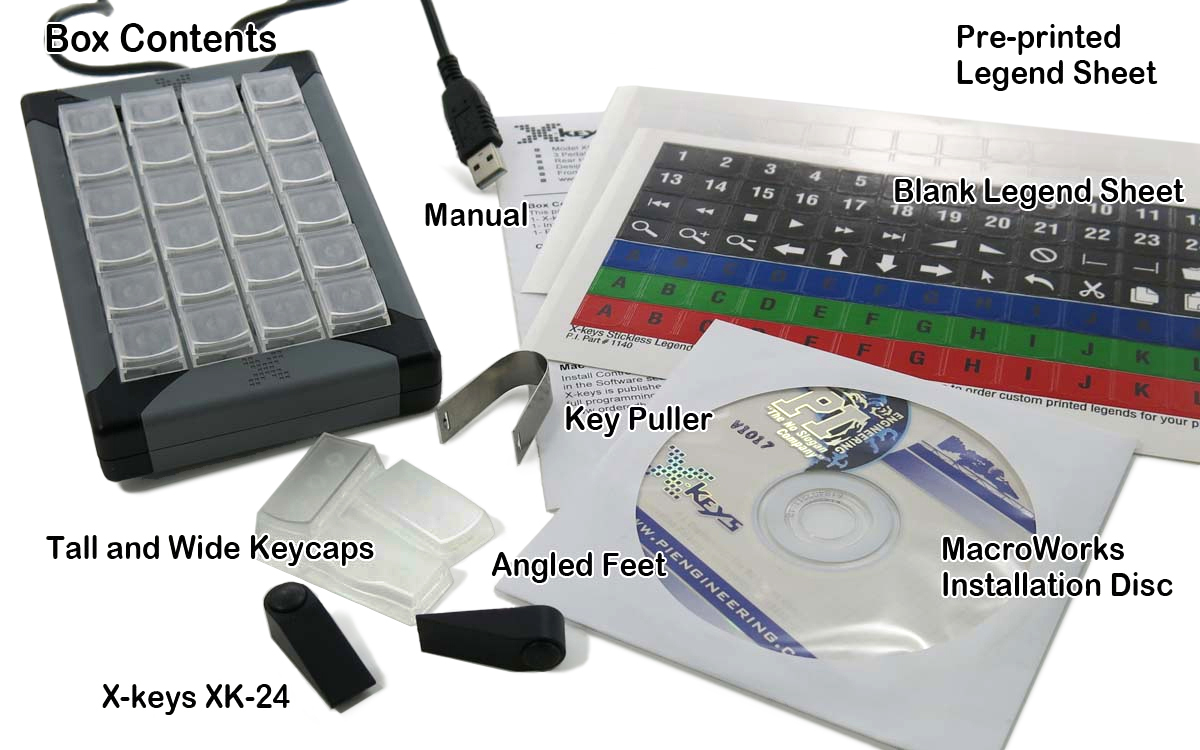

• Package Contents: Double keys (one horizontal and two vertical), Keycap puller, Legend sheet, 2 angled feet, Manual
