X-Keys XBE-24 Keypad

The X-keys XBE-24 Keypad from PI Engineering is a robust programmable keypad that lets individuals customize their input by mapping complex macros, specialized commands, and shortcuts to a single key. The keypad can be programmed in two ways. In software mode the programming software stores the program on the host computer, ideal for situations where revisions to the programming may be required. In hardware mode the programming is written to the internal memory and the device can be pre-programmed and then deployed to any computer that accepts USB keyboard input.

The XBE-24 Keypad can be programmed in 2 distinct layers with 46 programmable functions and serve as addition or substitution to the standard USB keyboard. This device can send keystrokes to any operating system or application which recognizes a USB keyboard. Clear key lenses keep printed or handwritten legends securely in place and protect them from wear while making it quick and easy to update them. XBE-24 keypads are also equipped with fully addressable RGB backlighting (both colour and intensity), and have two separately programmable LEDs per switch.

The Free MacroWorks 3 (MW3) Software for Windows provides simple programming for launching applications, opening files or accessing directories. It also facilitates the insertion of special characters, foreign language letters and symbols as Unicode text strings which can then be assigned to any key. MacroWorks 3 can be used to program the keypad in hardware mode for deployment on Mac computers. Mac users also have the option of the basic X-Keys Mac App or the third party Keyboard Maestro software. PI Engineering's new PI3 firmware offers new capabilities to the developer including flash updates, a joystick / mouse emulation and the newly developed Reflector Mode. Reflector Mode allows the developer to send outbound messages to the X-keys which can be reflected back to the Operating System in keyboard, mouse or joystick data stream.

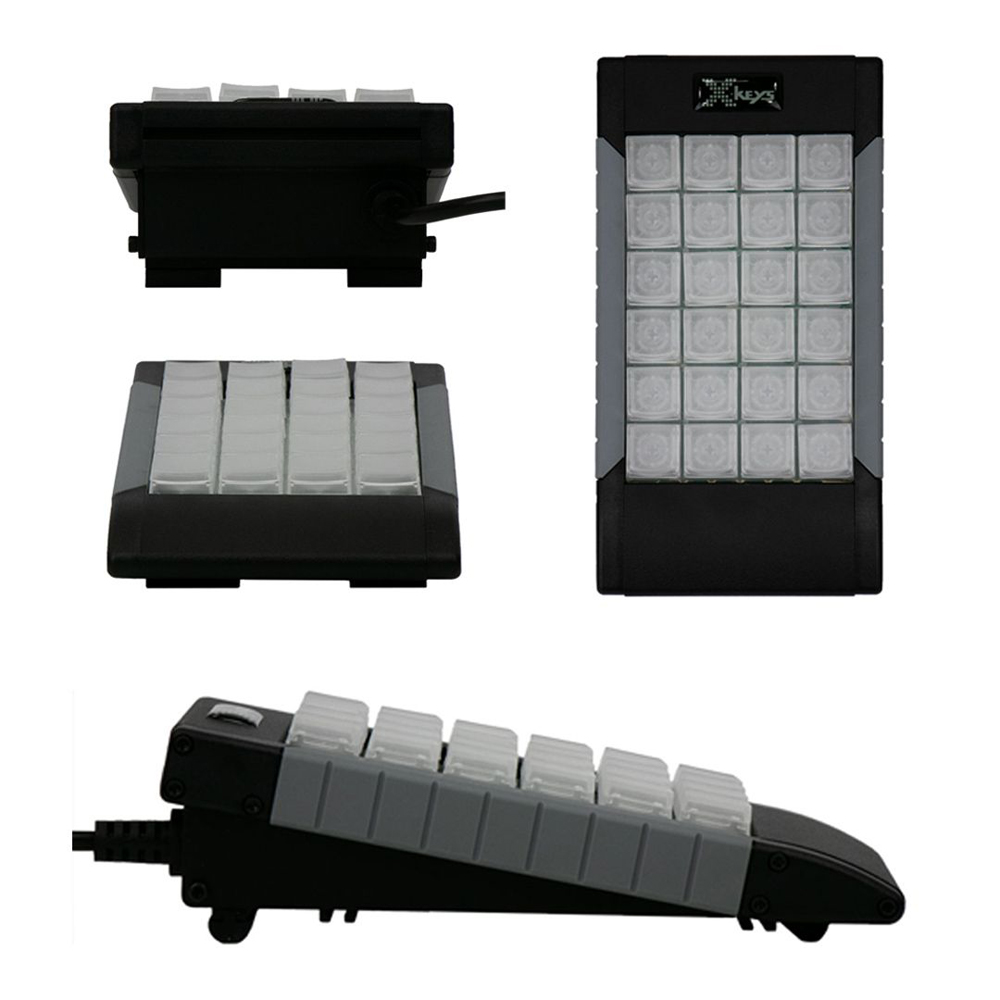

XBE-24 Keypads are designed for survival in rough environments with a machined aluminum housing. The robust design makes these equally suitable for deployment in office or industrial settings. The base is angled to offer enhanced viewing in landscape mode and the backlighting also makes them ideal where lighting levels are low.

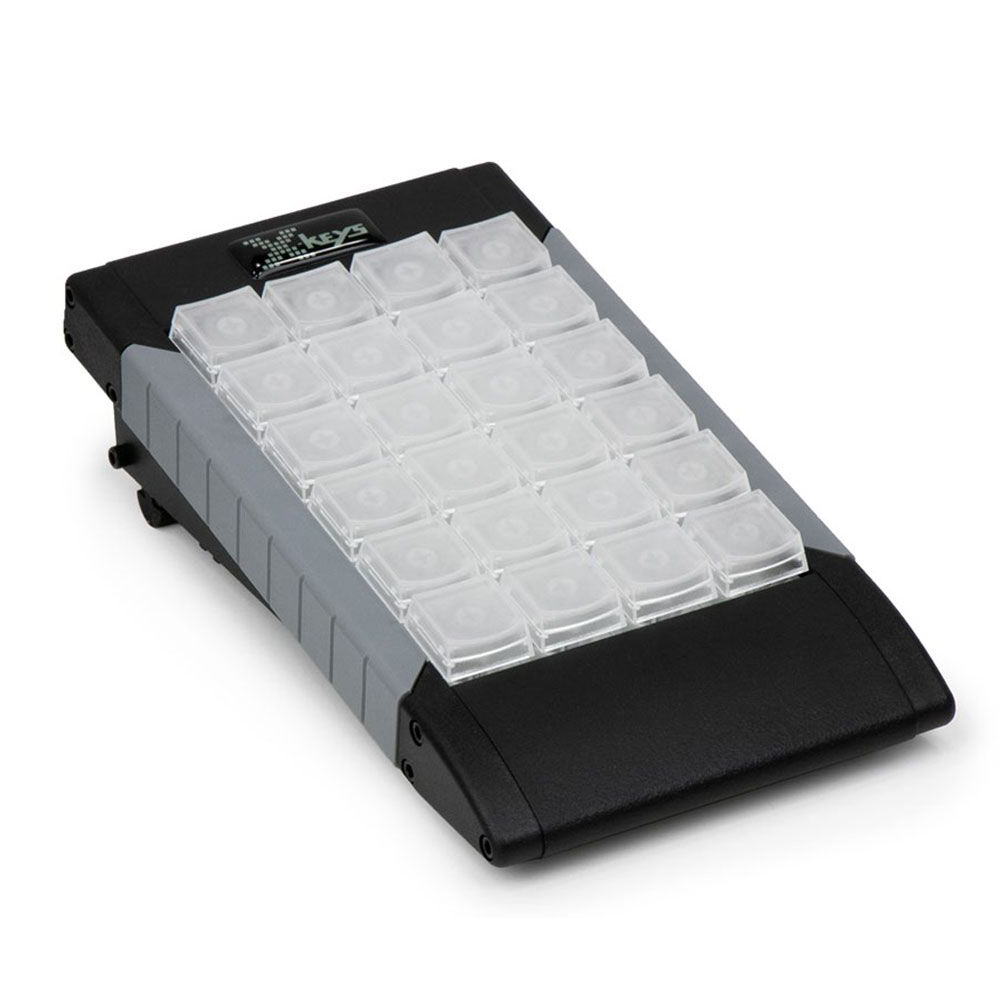

• Heavy Duty Design: The XBE-24 features a heavy machined aluminum housing with rubberized textured side grips.

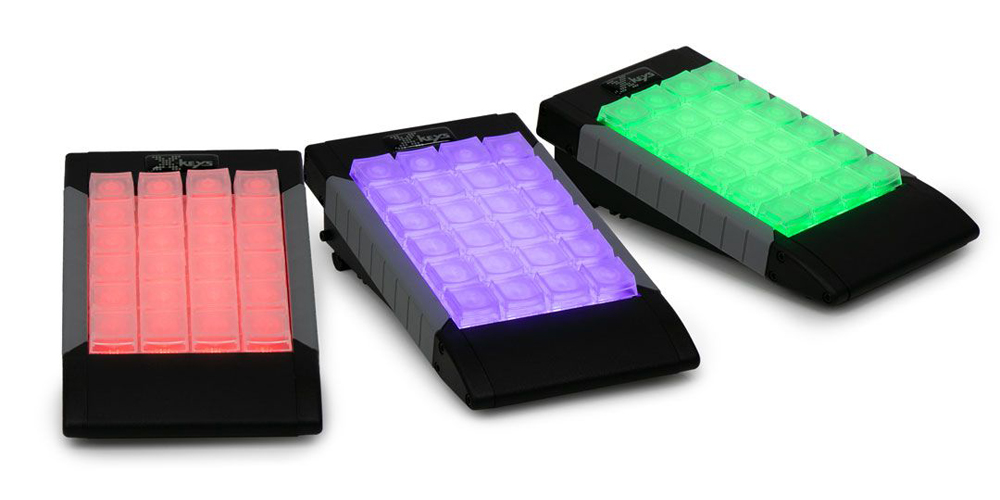

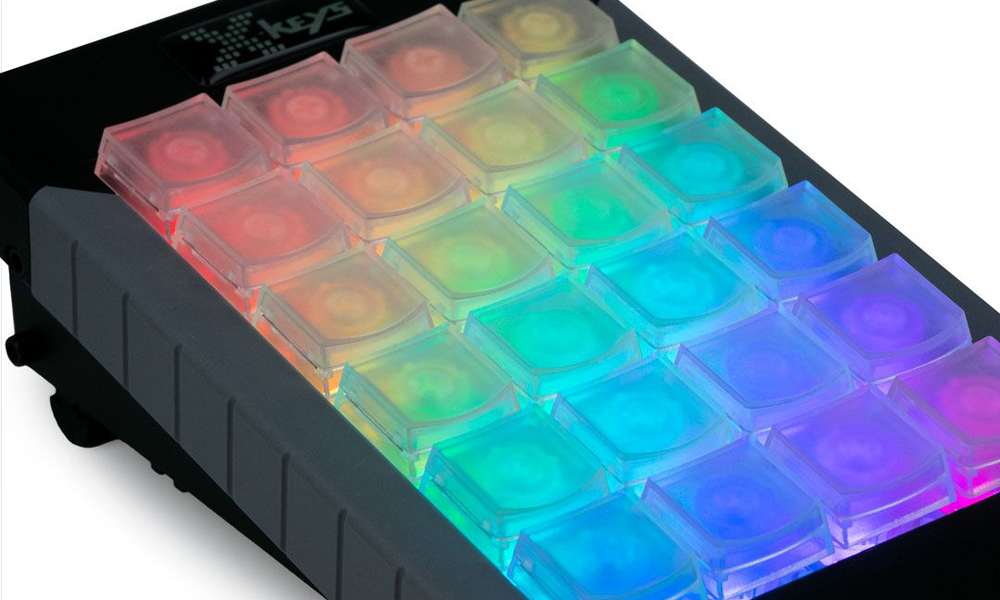

• RGB Fully Addressable Backlighting (2 LEDs per switch): Backlighting illuminates key legends in dark working environments with individually addressable colour and intensity. Each layer can also be assigned different colours, intensity settings, and special effects.

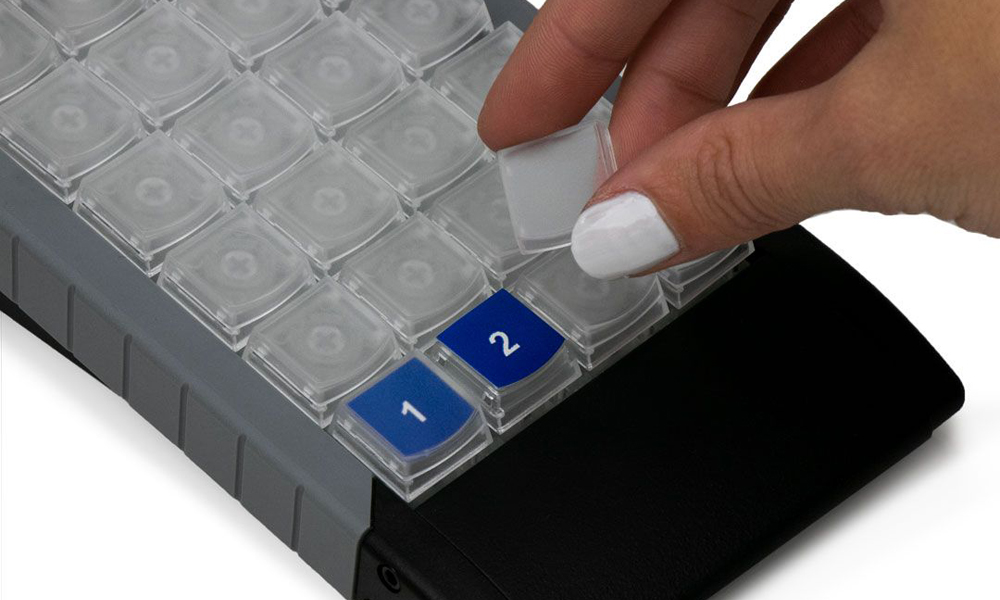

• Included Clear Removeable Keycaps: The clear keycaps snap off for applying and changing key legends, protecting the legends and providing quick visual cues to locate shortcuts and macros with a glance. Included precut legend sheets make it easy to hand inscribe labels for programmed keys.
• Reliable Keyswitches: The Rubber dome keyswitches are rated to 1 million activations.
• Layers of Portable Programmability: It is possible to access 46 programmable function keys (24 single keys with 2 layers of programming capability using one key to toggle). The X-keys stores assigned keystrokes (scan codes) in its internal memory and may be programmed on one system and used on another (which will work plug and play). For example, Layer 1 could be made a Left Handed Keypad, and Layer 2 a Right Handed Keypad, or Layer 1 a layout for Program 'A' and Layer 2 a layout for Program 'B'.
• Software Mode vs Hardware Mode: In Software Mode, all programming of the keys is stored in your computer in MacroWorks3 files (Windows) and thus requires the installation of MacroWorks 3 software for Windows to function. If the device is moved to another computer without MacroWorks installed, it will not work. It would need to be installed again on another computer and the original programmed file copied to that computer or the device reprogrammed. In Hardware mode the programming is written directly to the onboard memory. Once programmed the keypad can be attached to any computer (Windows PC or Mac) with no need for software and will perform the pre-programmed functions. There is also the basic X-Keys Mac App or the third party Keyboard Maestro that facilitates programming on Mac computers.
• Keypad Orientation: The base is angled for optimal viewing in portrait orientation.
• Applicable to a Number of Occupations: X-keys programmable devices are ideal for Engineers, Artists and Graphic Designers, Streamers, Audio & Video Editors, HTML Coders, Internet Chat, Gamers, Programmers, and Data Entry typists. They are also useful for anyone who frequently types information like names, phone numbers, passwords and keyboard shortcuts as part of their everyday workload. Keyboard macros and hotkeys offer quick, easy and direct access to specific functions, and the X-keys provides a clearly labelled, physical location for these complex or redundant actions.

• Dimensions:
  Width: 3.75" (9.5 cm)
  Depth: 7.0" (17.8 cm)
  Height: 2.0" (5.1 cm)
• Weight: 19 oz (540 grams)
• Cord Length: 118" (3.0 m)
• Keyswitch Type: Full-travel rubber dome (higher force tactile), carbon on gold contacts, over 1 million operations
• Key Force Rating: Approx. 72g break-over, approx. 42g hold
• Number of Keys: 24 single keys (use of double or quadruple keycaps or key blockers will determine the exact number of programmable keys)
• Number of ProgrammableLayers: 2 layers, user selectable toggle and/or shift keys
• Key Pitch: 19 mm (removable clear caps for easy labelling)
• Memory Capacity: Approximately 21,000 keystrokes or commands in onboard memory
• Memory Type: EEPROM, non-volatile memory (X-Keys retains memory for over 200 years)
• Power Supply: USB port, 5 V (D.C.)
• Backlighting: 2 RGB LEDs per switch, 48 total, individually addressable for colour and intensity.
• Power Consumption:

  Backlighting off: 18 mA
  Blue backlight @ full: 38 mA
  Red backlight @ full: 57 mA
  All backlights @ full: 75 mA
• OS Compatibility:
  Use: Any OS via USB HID
  Programming:

  • Windows: XP through 11
  • Mac: OS 10.14 - Mac OS 13
• Compatibility - Programming Software:
  Windows: MacroWorks 3 (free download available
  Mac: X-Keys Mac App or third party software Keyboard Maestro

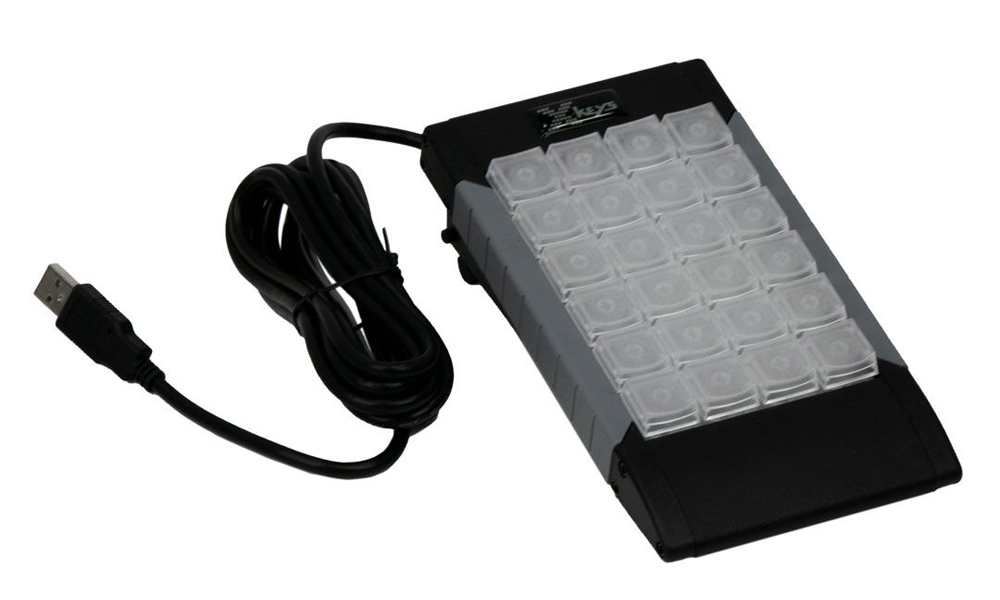

• Interface: Wired USB standard “A” plug, USB 1.1 compatible through 3.2 Type-c with adapter
• Certifications: FCC class B, CE, WEEE compliant, RoHS


• Warranty: 1 year

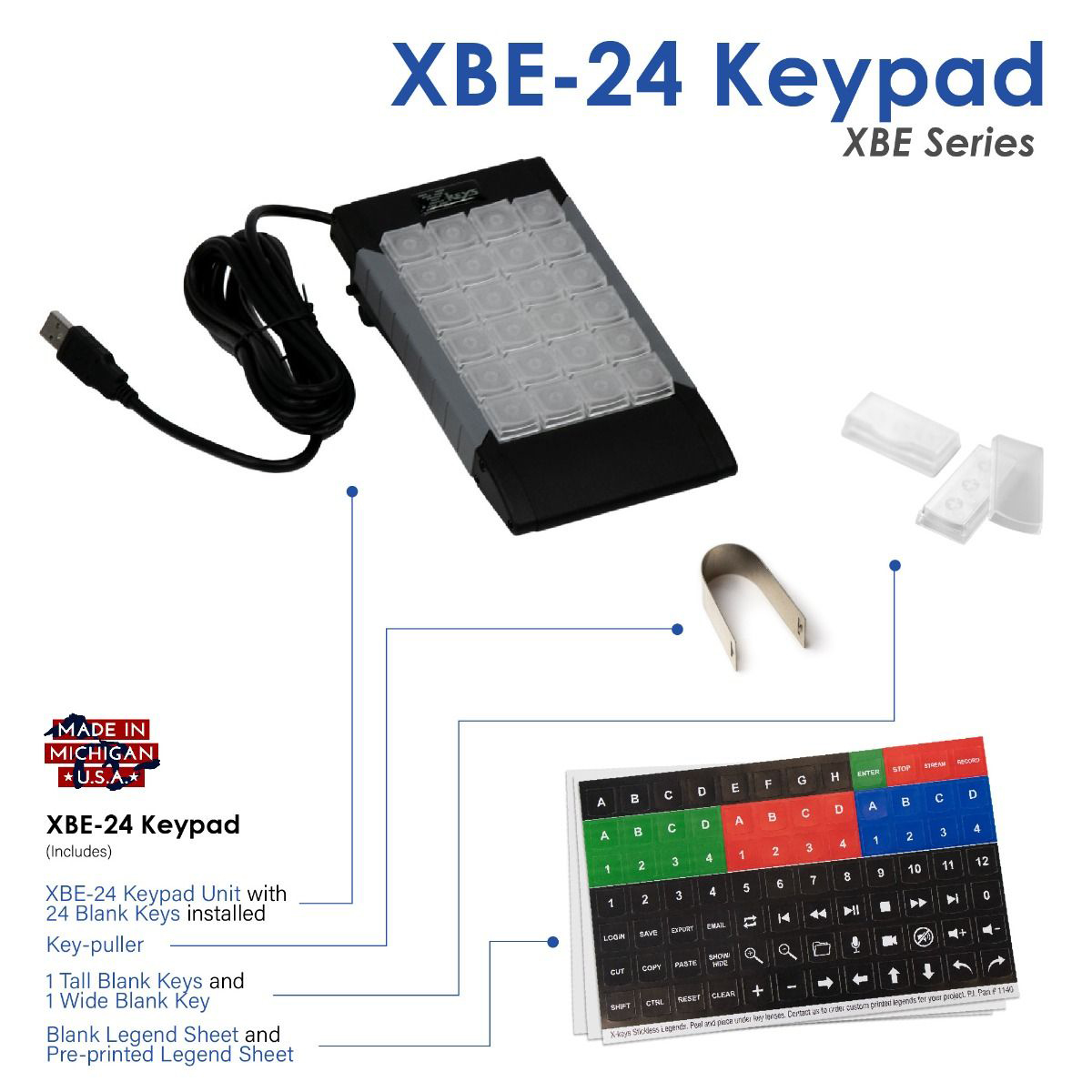

• Package Contents: X-Keys XBE-24 Keypad, Double keys (one horizontal and one vertical), Keycap puller, Pre-Printed Legend sheet, Blank Legend sheet, Manual
