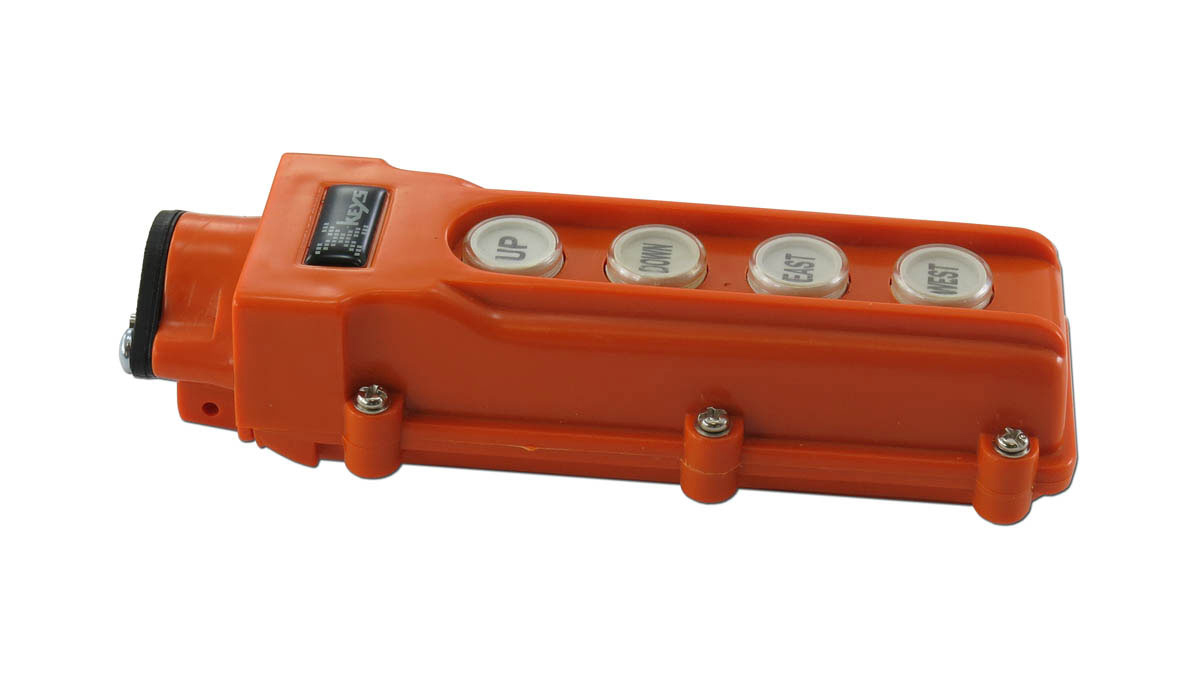

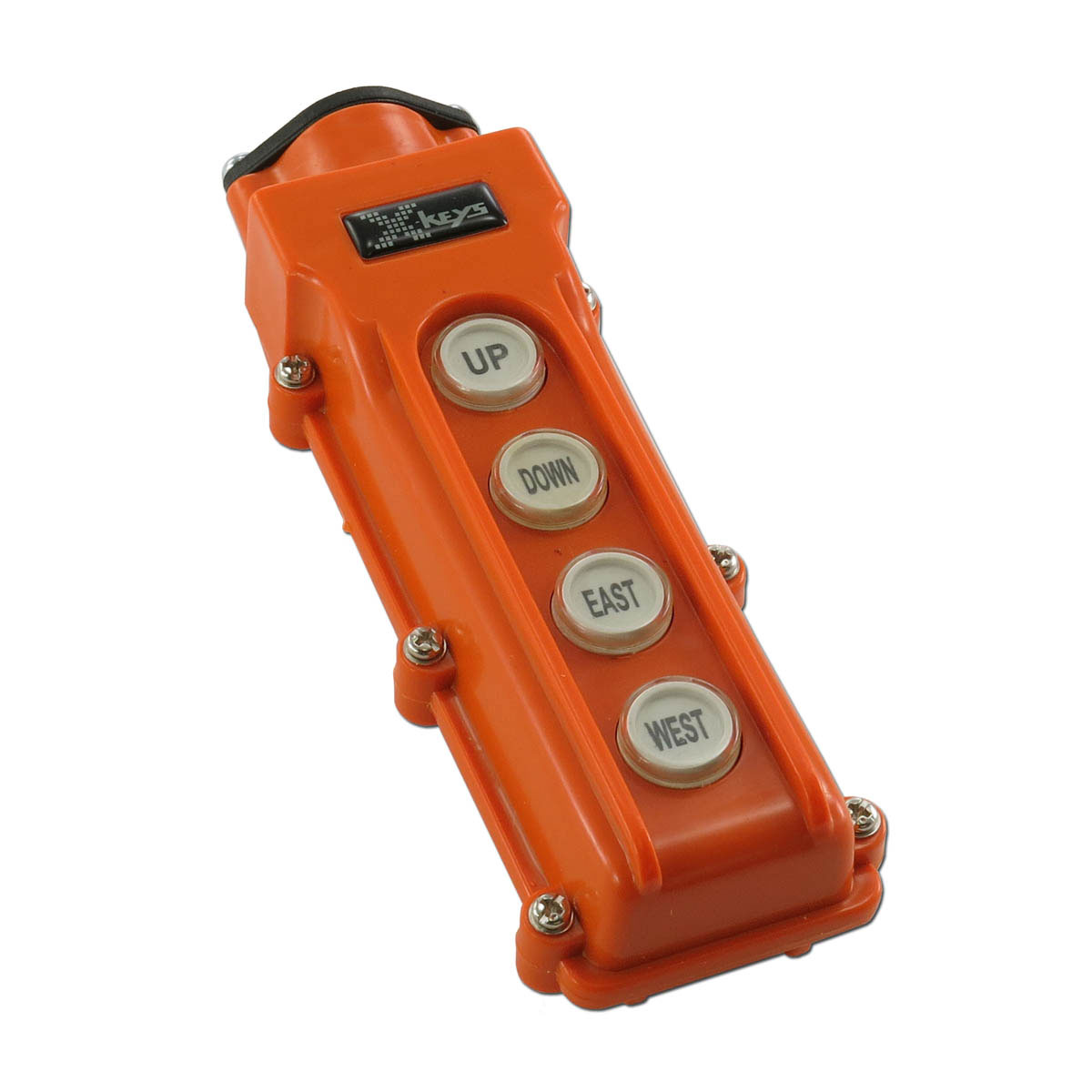

X-keys Pendant Switch

The X-keys Pendant Switch from PI Engineering is a rugged, commercial-duty switch primarily designed for light industrial or home workshop applications. This switch is useful in situations where a computer needs to be located a distance away from a working environment yet a few buttons are necessary to start or stop an operation safely with no exposure to potentially dangerous electrical currents.

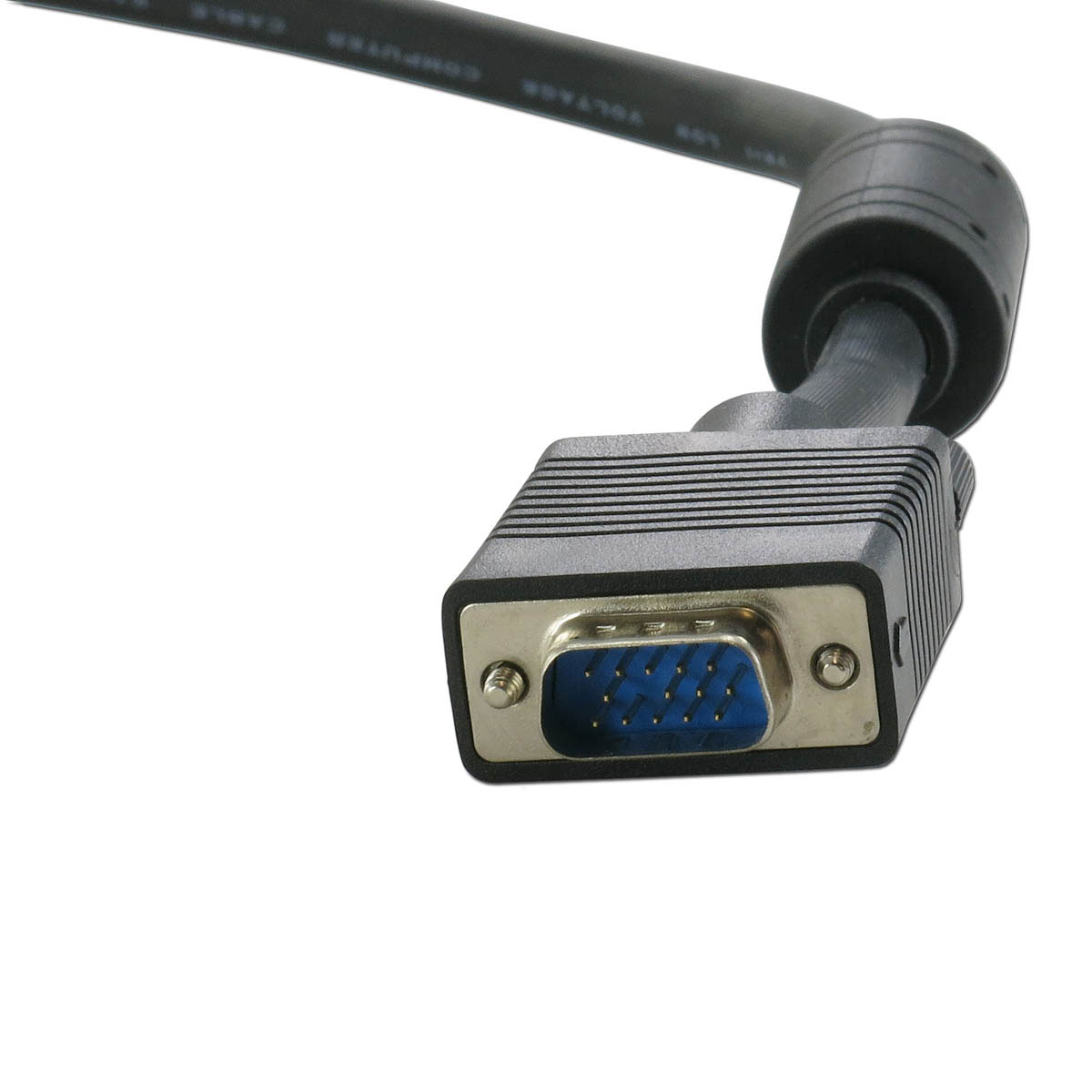

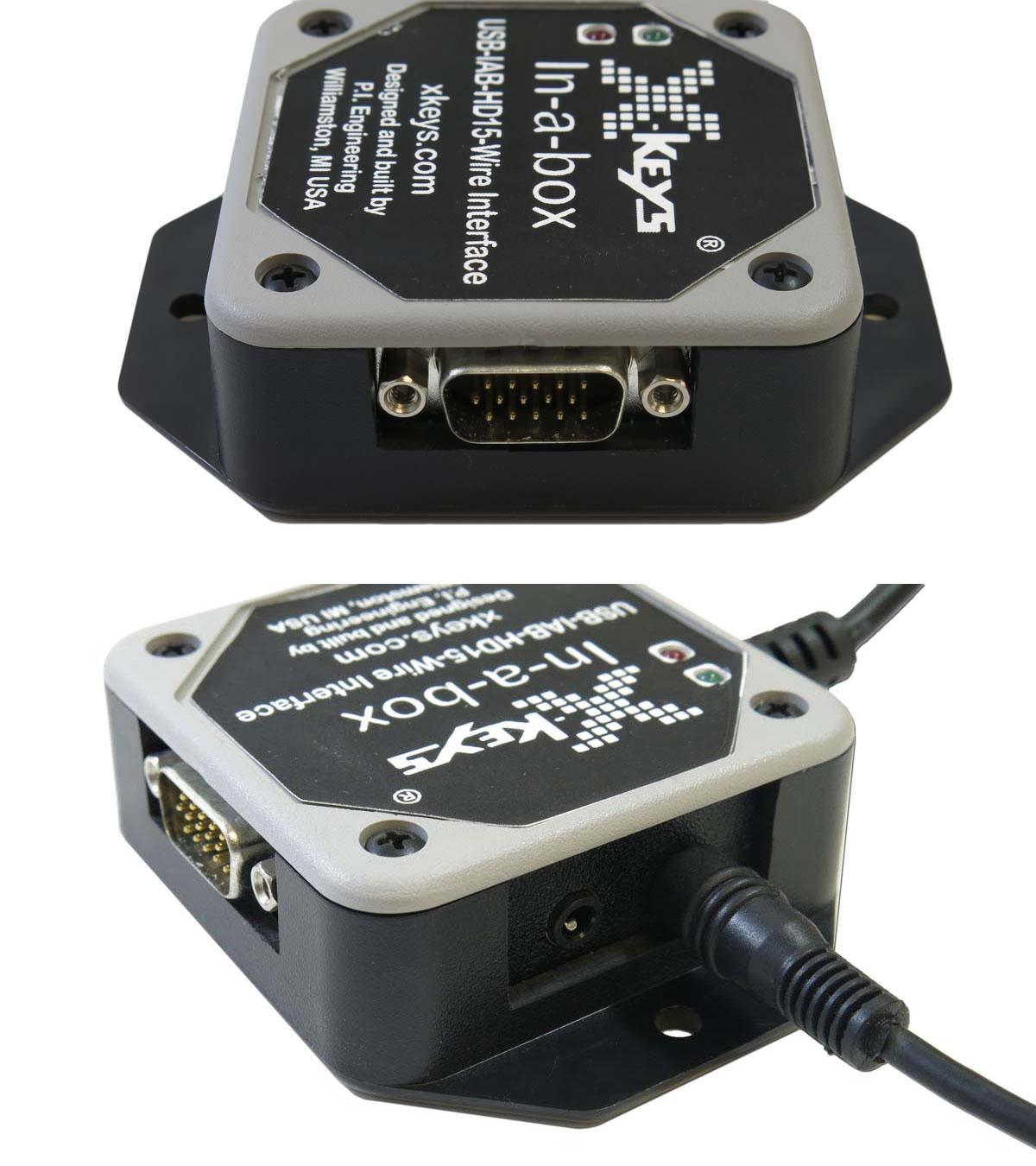

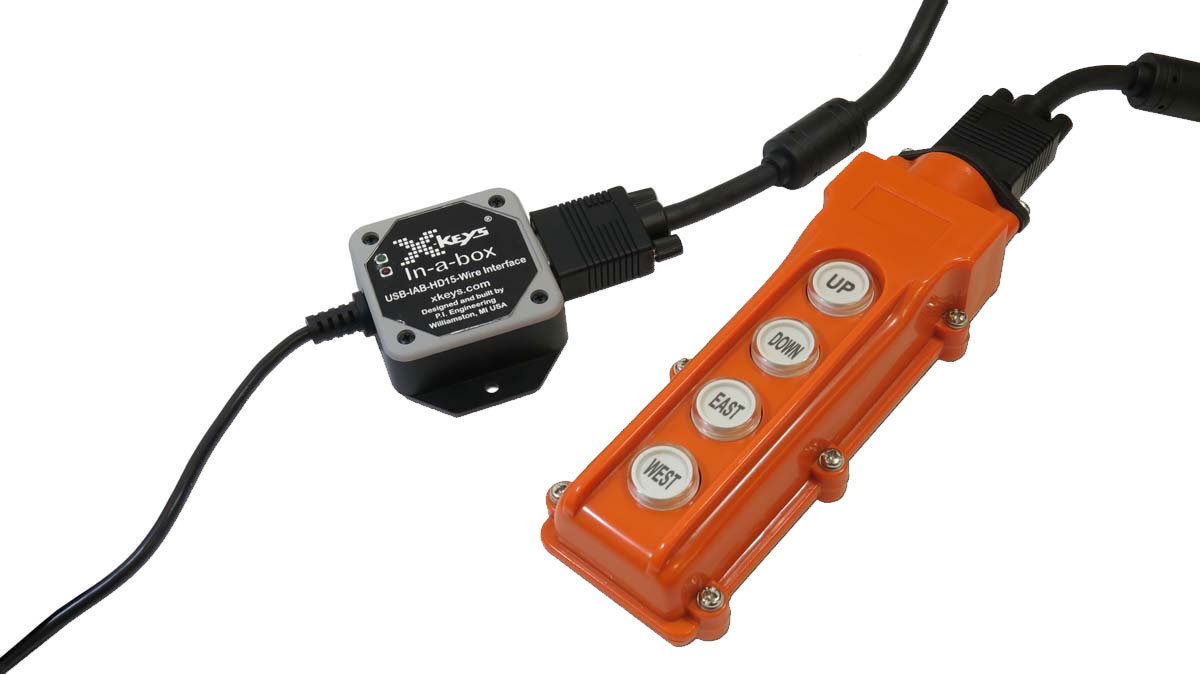

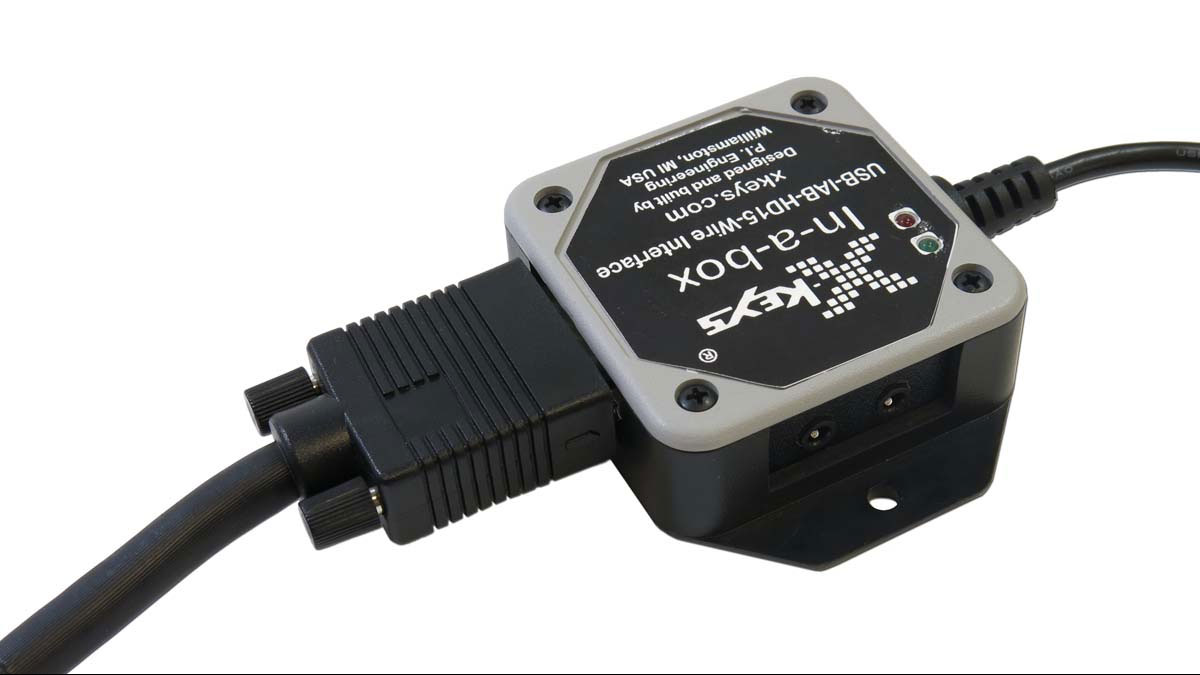

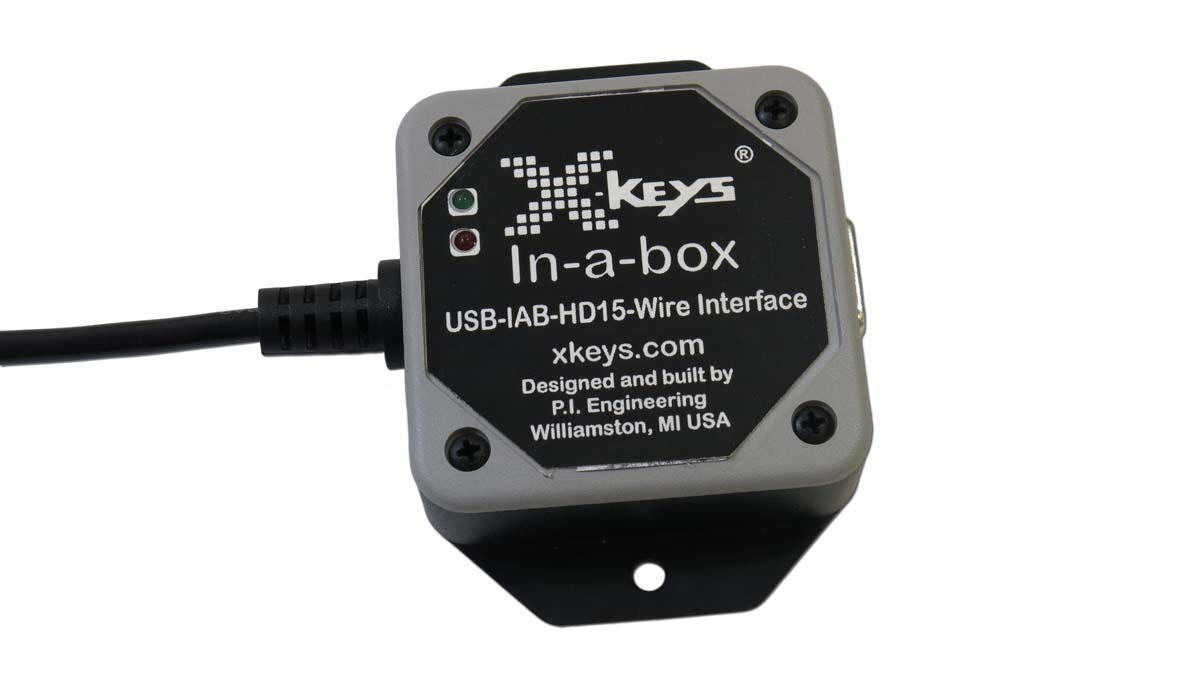

When bundled with the X-keys USB HD15 Wire Interface and the standard HD15 extension cable, the Pendant Switch can send commands to any program controlled by a computer or tablet. Different models include 4, 6, or 8 buttons. Each button has a tactile feel, giving click feedback even through gloves. Each Pendant Switch also has an attachment pin for easy mounting.

• Width:
  4 Button: 7.9"(20cm)
  6 Button: 10.2"(26cm)
  8 Button: 12.6"(32cm)

• Depth (front to back):
  2.7"(68mm)

• Height:
  2"(50mm)

• Weight:
  4 Button: 0.6lb (272g)
  6 Button: 0.75lb (340g)
  8 Button: 0.95lb (431g)

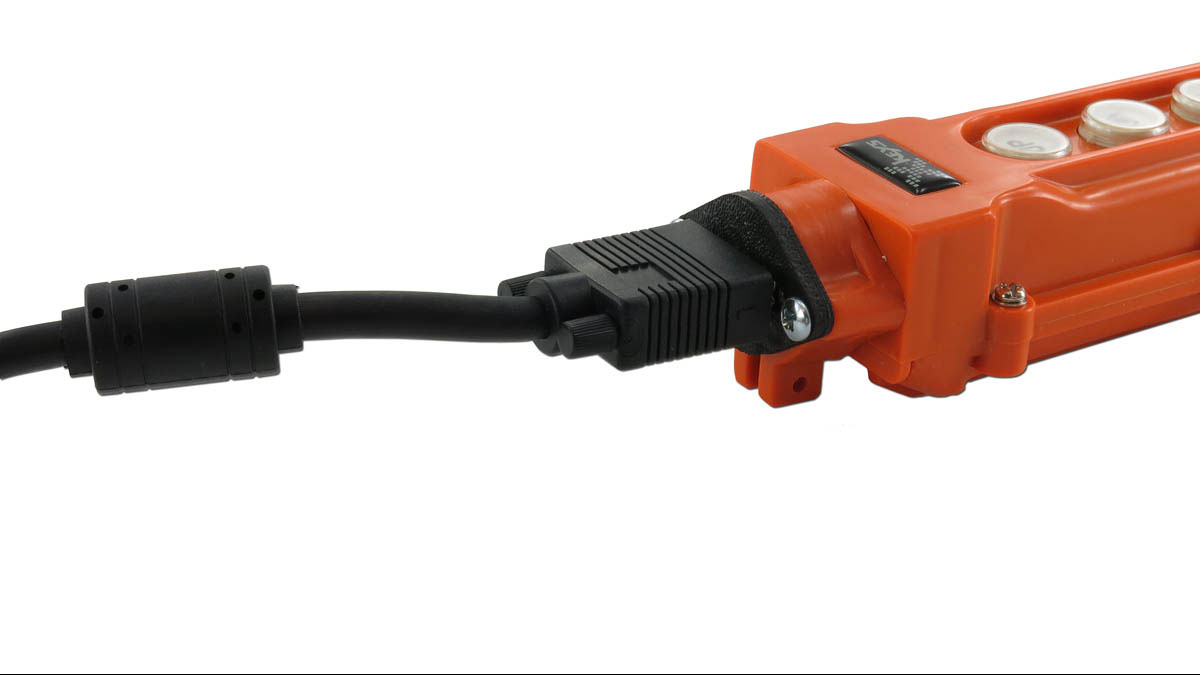

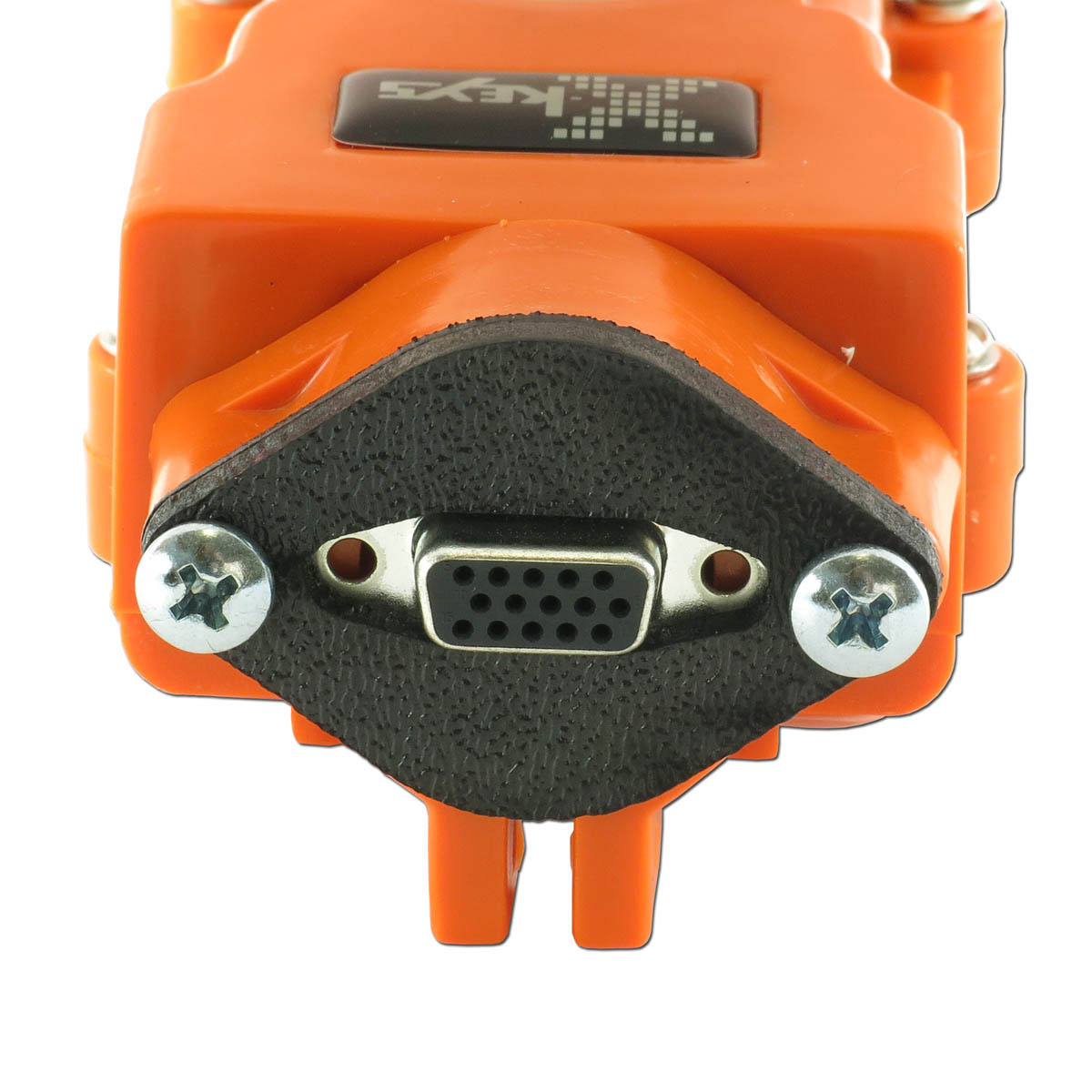

• Connector Type: HD15 female
• Actuation Force: Approx. 27oz (770g)
• Cord Length: Bundle includes 15' cable
• Case Material: Commercial duty ABS plastic
• Power Supply: Voltage less than 32-volts. Current less than 1-Amp
• Interface: USB
• OS Compatibility:
  Use: Any OS via USB HID
  Programming:

  • Windows: XP through 11
  • Mac: OS 10.14 - Mac OS 13
• Compatibility - Programming Software:
  Windows: MacroWorks 3 (free download available)
  Mac: Keyboard Maestro (available from software developer)
• Certifications: RoHS


• Warranty: 1 year
• Package Contents: 4-Button X-keys Pendant Switch, Programmable USB HD-15 Wire Interface, HD15 Extension Cable (15')
