Mousetrapper Alpha

The Mousetrapper Alpha combines the advanced mousing functions of the Mousetrapper Control Pad with a compact scissor switch keyboard for the ultimate combination of cursor control and portable convenience. At just 12.3" wide and only 8.7" deep this compact combination is superbly portable and can be placed virtually anywhere a standard keyboard would fit. The Alpha is rechargeable and can operate either as a Bluetooth or Corded device. It is also compatible with both PC and Mac platforms. In Bluetooth mode it can be connected to two devices and remember up to a total of four devices. When operating as a corded device the battery is automatically charged.

The most impressive feature of this device is the Mousetrapper "Control Pad" that is centrally located directly below the keyboard. This two-dimensional device offers intuitive fingertip-driven cursor control. Eight light-touch buttons adjacent to the pad combine to offer full standard mouse functions as well as additional shortcuts (Double Click/Copy/Paste/Zoom In/Zoom Out/Scroll Up/Scroll Down). In addition, all of these buttons can be reassigned or custom programmed to a wide variety of commands via the MT Keys software. The Control Pad is designed to be used by either hand, with the fingertips "steering" the moveable pad to provide near effortless onscreen navigation and cursor control. Unlike touchpads, the fingers can rest on the Control Pad between mouse activation tasks, with clicking accomplished by lightly pressing down against the pad. The palm rest zones to each side of the Control Pad are also slightly elevated above the keyboard to aid in maintaining a neutral wrist alignment when using the keyboard.

The incorporated chiclet-style compact keyboard has low travel scissor switches that offer a degree of tactile feedback. The full-size keycaps and standard layout mean that there is minimal learning curve when moving from a standard full-width keyboard. It is also possible to custom program up to 11 keys (F1-F11) for further customization. Three levels of optional backlighting are available, easily adjusted via a keyboard shortcut function. For protection during transport, the Mousetrapper Alpha includes a neoprene travel sleeve.

• Compact Scissor Switch Keyboard with Integrated High Performance Mousing Device: The Mousetrapper Alpha combines the advanced ergonomics and function of the Mousetrapper pointing device with a compact low profile keyboard with full-size keys. The result is a combination keyboard and high end mousing device that is highly portable. Unlike similar keyboards that have integrated pointing devices that offer the minimum in mousing functions, the Mousetrapper Alpha not only offers a much broader range of functions but goes far beyond by offering advanced programmability. In addition, the mousing device itself is far more responsive than those in other "similar" solutions. This makes the Mousetrapper Alpha an ideal compact and portable solution for someone whose work entails heavy mouse input.
• Control Pad: The Control Pad is unique to Mousetrapper products. Although it looks like a touchpad, it is more like a treadmill that moves in all directions, not just up and down. Up and down movement is continuous like a treadmill, and left to right movement is set at about 3.5" either way, which is enough to move the cursor across the screen. Rather than gliding over the surface of the Control Pad as they would on a touchpad, the fingers actually move the Control Pad itself. Cursor control is naturally intuitive as one moves the pad in a two-dimensional linear plane, unlike cylindrical central pointing devices. Left and Double clicks are easily performed using the Control Pad, also much easier than with a cylindrical device as the finger is simply pressing against a flat 2-dimensional surface, rather than a cylinder that can easily rotate from any off-centre downward pressure.
• Cursor Gliding: When the surface of the Control Pad can no longer be moved to either side (due to limited left and right movement), but the cursor is not yet at the edge of the screen, the cursor will continue to move to the screen edge. This automatic cursor repositioning feature will recalibrate the Control Pad so that normal cursor movement can resume. It is a normal part of using the Control Pad and does not impede its performance. Note: This function is referred to as "Edges" in the MT Keys interface.
• Enhanced Cursor Control: The MT Keys Software can program a single button to temporarily slow cursor movement to provide pixel-by-pixel movement. This feature can provide an incredible level of precise control for CAD, Graphic Design, or any other application where that level of fine control is necessary.
• Tactile Light Activation Buttons: All eight of the buttons require minimal effort for activation while still providing enough tactile response to notify that activation has occurred.
• Low Profile Keyboard: The integrated keyboard on the Mousetrapper Alpha features a low profile chiclet or island style design. The full size keycaps and standard layout mean that there is limited adaptation required when moving from a traditional keyboard. The low travel scissor switch keys offer a degree of tactile feedback on activation.
• Programmable: There are a total of 19 programmable buttons on the Mousetrapper Alpha. Eight of these are conveniently positioned to provide easy access to the desired mouse functions. The default configuration includes right click, double click (left click is on the Control Pad), scroll up, scroll down, zoom in, zoom out, copy, and paste. All the buttons can reprogrammed to perform a different function, including an extensive range of mouse or keyboard functions. Even lengthy text strings (up to 767 characters long) can be programmed to enter at a single touch. The remaining 11 are alternate functions that can be programmed on the F1-F11 keys. Reprogramming is done through the MT Keys software, downloadable from the manufacturer's Website, and provides an extensive range of custom programming options.
  Note: Reprogramming the Mousetrapper Alpha does require access to a Windows 10 computer in order to use the MT Keys Software. However, because the device stores the profile on its internal memory, once programmed it can be deployed on any computer, including Mac models, where it will perform the functions as programmed without the need of a driver. This makes it ideal for situations where the installation of software drivers is not permitted.
• Vertical Scrolling: The Control Pad incorporates a convenient scrolling feature that is instantly available. Simply placing the finger on the far right edge of the Control Pad and moving it up or down will scroll the page accordingly.
• Quick Access Web Back/Forward: The Control Pad also offers a convenient feature for web browsing: if a click is made while moving up, the "Back" function on the browser will be activated; if clicked while moving down, the "Forward" function will be activated.
• Shortcut Buttons: Clicks and stretches for keyboard keys are reduced via the default pre-programmed shortcut buttons. Default commands include Right Click, Copy, Paste, Double Click, Web Page Forward, and Web Page Back, Zoom In, and Zoom Out. Programmability option enables individuals to customize their own profiles.
• Compact: The design of the Mousetrapper Alpha makes it an ideal keyboard and mousing device where space is limited, where portability is required, or where the traditional extended reach to the mouse is an issue. At just 12.3" in width and 8.7" in depth this combination device can be deployed virtually anywhere.
• Wired & Bluetooth Functionality: The Mousetrapper Alpha features a rechargeable extended-life battery for wireless Bluetooth connectivity and a dual purpose data/charging cord for use with non-Bluetooth devices and for battery charging.
• Mac and PC Functionality: The Mousetrapper Alpha can be configured for either PC or Mac usage using the MT Keys Software.
• Palm Rests: The integrated palm rest zones are actually slightly elevated above the keyboard, creating a negative inclination that aids in reducing wrist extension.
• Adjustable Backlighting: Optional backlighting can be set to three intensity levels. This is accessible using the PrtSc key. The key has an illumination legend to identify the alternate function.
• Storage/Travel Case: The Mousetrapper Alpha comes with a soft neoprene travel sleeve designed to protect the unit from damage when travelling.

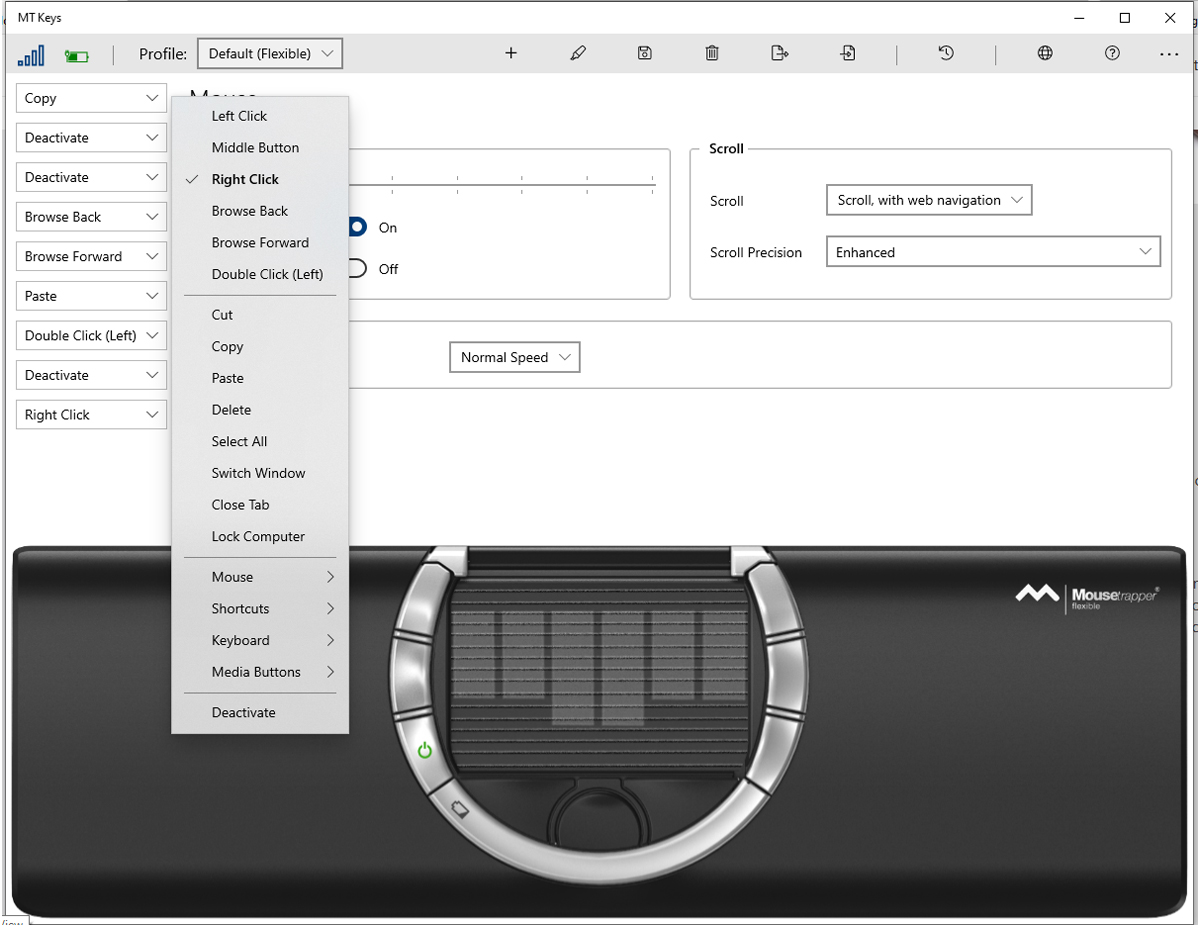

• Custom Programming: Mousetrapper offers free software called MT Keys. This powerful software enables operators to check and/or change the assignedfunctions of all buttons on the Mousetrapper Alpha (8 on the mouse portion, 11 on the keyboard). Most people have several commands which they access on a repetitive basis. Programming these into a single click can reduce awkward stretches and actually decrease the time required to perform these actions, effectively increasing productivity.

  MT Keys also enables individuals to assign specific profiles for unique purposes. By default the program offers a single pre-programmed profile for general computer usage. The default functions for this profile are as described above. Individuals can also create custom profiles specific to their needs. For example, CAD operators can take advantage of the "Enhance Cursor Precision" option to enable accuratepixel-by-pixel control while still retaining rapid movement when necessary. The range of functions available for each button is too extensive to list.

  The Profile Management is also a great solution for multi-user workstations, as each individual can assign and quickly select the settings that are most suitable to their work pattern and personal comfort.

  Note: In order to take advantage of moving between Profiles MT Keys must be installed on the host computer.
• Rechargeable: The Mousetrapper Alpha has an internal rechargeable battery. When connected as a Bluetooth device the battery is the power source unless the charging cable is attached. For non-bluetooth applications the cable also serves as the data connection, recharging the battery while connected. When the battery lamp flashes red, the battery needs recharging. When the battery symbol displays a steady green light the battery is fully charged and the Mousetrapper Alpha is ready for wireless use.

• Keys: 78
• Keyswitch Type: Scissor Switch (Chiclet/Island style)
• DPI Settings: 2000 DPI Maximum - variable using MT Keys Programming
• Width: 12.3" (313 mm)
• Depth (Front to Back): 8.7" (220 mm)
• Height: 0.78" (20 mm)
• Control Pad Width: 3.0" (7.6 cm)
• Package Contents: Mousetrapper Alpha, Neoprene Travel Sleeve, Startup Guide
• Default Control Pad Settings:
  Buttons:

  • Top Left Outside Button: Zoom In
  • Top Left Inside Button: Double Click
  • Top Right Inside Button: Right Click
  • Top Right Outside Button: Zoom Out
  • Bottom Left Button: Copy
  • Bottom Middle - Upper Button: Scroll Up
  • Bottom Middle - Lower Button: Scroll Down
  • Bottom Right Button: Paste


  Control Pad

  • Left Click: Finger can be placed anywhere on the Control Pad and gently pressed down until a clicking sound is heard.
  • Double Click: Pressing the finger down gently twice without lifting the finger will generate a double click. Note: Finger cannot be lifted from surface between clicks.
  • Scroll: Finger can be placed at the extreme right edge of the Control Pad to activate vertical scroll. Once in contact a simple up/down movement will scroll the screen accordingly.
  • Extended Scrolling: Once scrolling is begun the Control Pad may be moved up and down without keeping any finger on the right edge. The scrolling stops once the Control Pad stops. Using two fingers to maintain steady movement on the Control Pad facilitates smooth scrolling through long documents with minimum effort.
  • Web Navigation: Back - Place finger at the rightmost edge of the Control Pad. Pull down at least one centimetre (1/2") and click. Navigating further back just takes additional clicks - (finger must remain in contact between clicks). Forward - Place finger at the rightmost edge of the Control Pad. Pull up at least one centimetre (1/2") and click. Further forward navigation can be done by additional clicks - (finger must remain in contact between clicks).
• Materials: ABS Plastic housing and keys, Textile/Silicone Control Pad
• Colour: Brushed Silver top with Black Keys
• Number of Control Buttons: Fully programmable with downloadable software.
  Mouse/Control Pad: 8
  Keyboard: 11 (F1-F11 alternate function)
• Compatibility: Compatible with all PC and Mac computers with a USB port. The use of MT Keys requires Windows 10.
  Note: Mac operators who wish to have customized button functions can do so but will require access to a PC. Using the MT Keys software on the Windows PC the desired commands can be assigned and written to the Mousetrapper Alpha. The Alpha retains the programming in its internal memory, making the customized functions available when connected to the Mac. This same process also applies to Windows-based computers where drivers or software are not permitted.
• Interface:
  USB - Corded
  Bluetooth 4.1 (can pair to 2 devices simultaneously and retain up to 4 devices in memory)
• Power Source: Rechargeable Battery or USB Cord.
• Expected Battery Life: Under average usage battery should last a month between charges. The indicator light glows orange when battery needs to be charged.
• Weight: 26.25 oz. (745 grams)


• Warranty: 2 Years
• Package Contents: 2.0" (5.1 cm)

• To obtain the most benefit from your Mousetrapper Alpha make a point of learning to use the Control Pad with both hands. This will let you balance the load across both hands, reducing the risks associated with repetitive actions.
• Browse through the many options available on the MT Keys software. You may be surprised at how powerful it is and may find some unique functions that work well for specific applications.
• Consider the most common actions that you perform while mousing and program buttons to perform those actions. Reprogram buttons to match your natural movements. The default commands may not necessarily be those that you need, that is why the MT Keys is so useful - you can modify the layout to optimize your work.
