EZ-RYZE ARC Footrest

by Mey Chair Systems

Accessories

The EZ-RYZE ARC Footrest from Mey Chair Systems offers virtually effortless height adjustment while providing optimal support for the feet. Unlike comparable footrests, this model (and companion MATRIX and SOLO models) can easily be adjusted with a single foot. Users can access the release button with the heel, engaging the gas spring to gently raise or lower the platform to any point between 4.3" and 12.6" high. The non-locking platform tilts freely between 0° and 30°, encouraging flexing of the feet and ankles during use. The arc-shaped, ABS plastic platform measures 21" wide by 14" deep and has non-slip ridges on the surface to ensure comfort and to provide a massaging effect for the feet. The sturdy steel frame and base feature a wide stance for stability and support. The base is equipped with large rubber feet for secure positioning.

Ergonomic Benefits

Eliminates Strain when Adjusting Height EZ-RYZE footrests are noticeably easier to adjust than other footrests with similar capabilities. The simple button release and gas spring enable users to adjust the height of the platform with a single foot and minimal exertion.

Reduces Strain on the Foot and Ankle Many office workers while sitting position one foot forward of the other, putting the foot into a position called plantar flexion. Plantar flexion shortens the muscles of the backs of the legs. Over time, sustained plantar flexion can cause the calf muscles to become tight and stiff which, in turn, can lead to a range of uncomfortable symptoms in the foot. The non-locking platform on the EZ-RYZE ARC permits users to flex the ankle joint easily back and forth, promoting healthy movement at the joint, and reducing strain caused by sustained plantar flexion, or sustained dorsiflexion. These frequent small movements also promote better circulation, helping to reduce the risk of blood clots and varicose veins.

Improves Upper Body Posture The EZ-RYZE ARC Footrest provides users with a stable and supportive surface which encourages users to correctly utilize the back of their chair rather than "perching" on the front edge of their seat. This improved posture can reduce the risk of upper back, shoulder and neck pain. The movement range of the EZ-RYZE ARC ensures that even those of shorter stature can reap these benefits.

Features

Gas Spring: The EZ-RYZE ARC Footrest employs a gas spring for smooth and quiet adjustment with minimal physical effort.

A "gas spring" uses gas contained in a cylinder and compressed by a piston to exert a force pneumatically. Common applications include height adjustment in footrests (as in this description), as well as office chairs and premium monitor arms.
Wide Range of Height Adjustment: The wide range of vertical adjustment offered by the EZ-RYZE ARC makes it well-suited for most users, even shorter individuals.
Non-Locking, Tilting Platform: Encourages movement at the ankles and promotes circulation throughout the workday.
Single Foot Adjustment: Users can perform height adjustments with just a single foot, minimizing the impact on workflow by eliminating awkward reaching under the desk.
Large Platform: The large 20" x 12.25" surface on the EZ-RYZE ARC provides sufficient surface for larger feet.
Slip Resistant Surface: Raised arcing ridges follow the curve of the the EZ-RYZE ARC Footrest to aid in maintaining foot position and can provide a massaging effect for feet.
Robust Construction: The EZ-RYZE ARC Footrest features a heavy-duty steel frame that will last for many years. The foot platform is formed from strong ABS Plastic.

Images and Multimedia

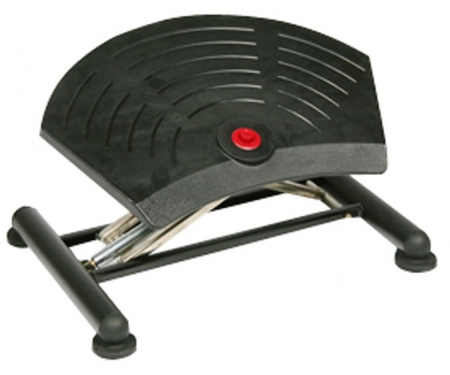

EZ-RYZE ARC Footrest

EZ-RYZE ARC Footrest - Foot Platform Dimensions

Technical Specifications

Adjustment Range: 4.3" - 12.6" (11 cm - 32 cm)
Angle Adjustment: 0° - 30°, Non-Locking
Platform Dimensions: 16.5" W x 12.6" D (42 cm x 32 cm)
Base Dimensions: 19.7" W x 14.2" D (50 x 36 cm)
Weight: 13.4 lbs (6.1 kgs)
Warranty: 5 Years
Package Contents: EZ-RYZE ARC Footrest

Usage Tips

Activation of the Release Button can easily be accomplished with the ball or heel of your foot. Most users should find little effort required to overcome the resistance of the gas spring when re-positioning the footplate.
When selecting the height of the footrest ensure that your feet are supported at a height suitable to your position in the chair when you are in an upright working position at your workstation. You should be able to rest your foot or feet on the footrest without tilting the chair forward or having to stretch for the footrest. Alternatively, it should not be too high as this can which can lift the thighs off the seat pan of the chair.

Models

For related products, visit our online product listing.

Model #	Description	Synnex SKU
13206	EZ-RYZE ARC Footrest. PLEASE SEE NEW PART NO: EAFR-13206	5592754
