Pivot and Tilt LCD Mount with Pole

by Innovative HAT

Ergonomic Benefits Usage Tips

Mount one or two LCD monitors on the supplied pole with this space-saving mount. Position each monitor independently of the other, and quickly adjust pivot and tilt as your needs change. Set height at any desired position along the included 12" (30.5 cm) or 28" (71.1 cm) pole.

A Universal Mount with 6 mounting options is included. Weight capacity is up to 30 lbs (13.6 kg) per arm and each monitor can adjust independently. The arm is equipped with a 100 mm VESA Quick-Release adapter.

Features

Compact Deployment: Never takes up more than a couple inches of desktop space.
Effortless Movement: Friction control system provides smooth adjustment while adjusting the tilt of the monitor

Images and Multimedia

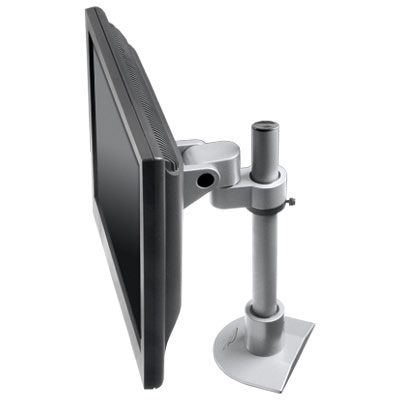

Pivot and Tilt LCD Mount with Pole - side view

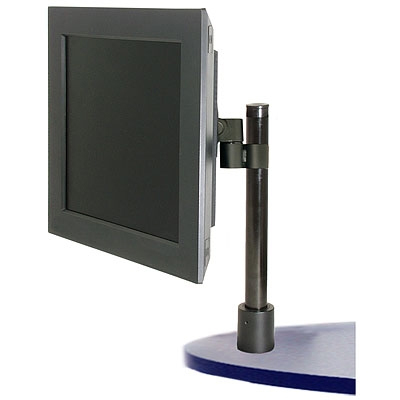

Pivot and Tilt LCD Mount with Pole - top side view

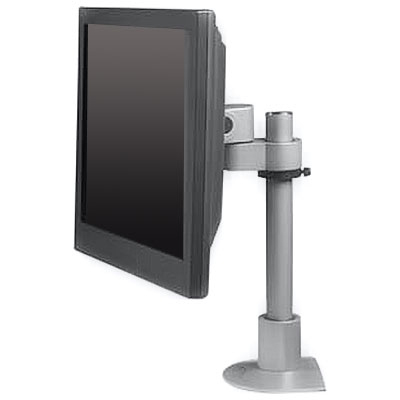

Pivot and Tilt LCD Mount with Pole - another side view

Technical Specifications

Vertical Range: (Collar slides along pole when a set screw is adjusted.)
Single: 12" (30.5 cm)
Dual: 28" (71.1 cm)
Horizontal Range: No horizontal adjustment
Rotation: VESA mount rotates for both landscape and portrait viewing
Weight Capacity: 30 lbs (13.6 kg) per arm
Available Colours: Black or silver
VESA Compatibility: 100 mm VESA Quick-Release adapter included.
Mounting Options:
The Universal FLEXmount which comes with this arm can be installed in 6 different configurations which will handle most mounting scenarios. Best of all, if it becomes necessary to change the way the arm is mounted several months after purchase, there is nothing more to buy - simply reconfigure the universal FLEXmount. This convertible mounting solution is also ideal for what can be challenging mounting scenarios for other arms such as thick desk edges, desk edges with longer trim and surfaces with a small lip. Additional mounting accessories are available to mount to financial trading slatwall, slotted panel furniture systems, and poles.
- Through the Desk - Bolt through the desk. Requires a 3/8" hole.
- Desk Edge (Using Clamp) - Clamps to the edge of the desk, no drilling required.
- Wall Mount - This heavy-duty wall mount will provide rock-solid security for the arm and monitor. Mounts vertically to the wall surface. Not recommended for dry wall, sheet rock or plaster surfaces.
- Reverse Wall Mount - An alternative mounting method
- Side Bolt (Panel System Rear Edge) - Mount to the solid side of a desk
- Grommet Hole Clamp Mount - For Grommets 2" and larger
- Warranty: 10 Years

Models

For related products, visit our online product listing.

Model #	Description	Synnex SKU
9136-S-14-FM-104	Black, single Pole is 14" long (30.5 cm)
9136-S-14-FM-124	Silver, single Pole is 14" long (30.5 cm)
9136-S-28-FM-104	Black, single Pole is 28" long (71.1 cm)
9136-S-28-FM-119	Silver, single Pole is 28" long (71.1 cm)
9136-D-28-FM-104	Black, dual Pole is 28" long (71.1 cm)
9136-D-28-FM-124	Silver, dual, 75 & 100 mm VESA fixed adapters included Pole is 28" long (71.1 cm)

Accessories

Model #	Description
8336-QR-124	Quick Release Adapter, Silver Allows for quick attach and release of the monitor. Accommodates VESA 75 and 100 monitors. Pivots and turns with user-adjustable tension.
8336-QR-104	Quick-Release Tilter, Black
8409-104	Handle Set for LCD Monitors, Black
8409-124	Handle Set for LCD Monitors, Silver
8291-119	Handle Set for LCD Monitors, Metallic Silver (older model)
8171-6-104	6" Extender Tube, Black
8171-6-124	Large Extender Tube, Silver This extender tube will raise the height of your arm by 6" (recommended), which will allow you the full range of vertical movement when the arm is deployed over a desk top surface. It does not impede 360° rotation. SPECIAL ORDER ONLY. NO 30 DAY CSG
