Ergonomic Benefits Usage Tips | Product Summary |
---|
This efficiently designed pole arm allows lateral extension up to 16" (40.6 cm) along a 12" (30.5 cm) or 28" pole which mounts using the versatile Universal FLEXMount. A wide degree of monitor tilt is available (over 200 degrees), including the ability to rotate the monitor from landscape to portrait orientation. Cables are retained using clips on the underside of the arm, keeping them out of view and out of harm's way. | Features |
---|
- Compact storage: Space-saving design allows approximately 3" (7.6 cm) of space behind the monitor.
- Effortless movement: Friction control system provides smooth adjustment while adjusting the position of the arm.
- Mounting options: The Universal Flex Mount which comes with this arm can be installed in 6 different configurations (click here to see an animation of how each of the mounts work):
- Through the Desk - Bolt through your desk. Requires a 3/8" hole.
- Desk Edge (Using Clamp) - Clamps to the edge of your desk, no drilling required.
- Wall Mount - This heavy-duty wall mount will provide rock-solid security for your arm and monitor. Mounts vertically to your wall surface. Not recommended for dry wall, sheet rock or plaster surfaces.
- Reverse Wall Mount - An alternative mounting method
- Side Bolt (Panel System Rear Edge) - Mount to the solid side of a desk
- Grommet Hole Clamp Mount - For Grommets 2" and larger
- If needed, optional additional Pole and Slatwall mounts are available as accessories for an additional cost.
This single mount will handle most mounting scenarios. Best of all, if you decide to change the way the arm is mounted several months after purchase, there is nothing more to buy - simply reconfigure your Universal FlexMount. The Universal FlexMount is also ideal for special mounting scenarios such as thick desk edges, desk edges with longer trim and surfaces with a small lip. Accessories are available to mount to financial trading slatwall and slotted panel furniture system.
| Images and Multimedia |
---|

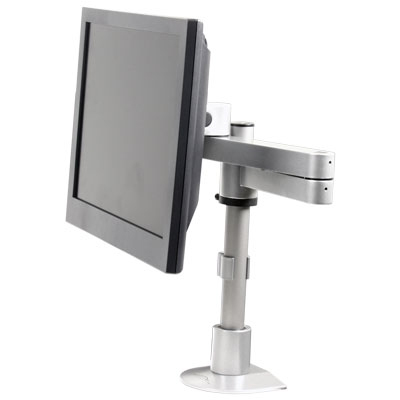

![Click to enlarge Long Reach Lateral LCD Arm on Pole, compact](https://www.ergonomicdistribution.com/images/gallery/innovative_hat_long_reach_lateral_lcd_arm_on_pole_g1_125.jpg) Long Reach Lateral LCD Arm on Pole, compact

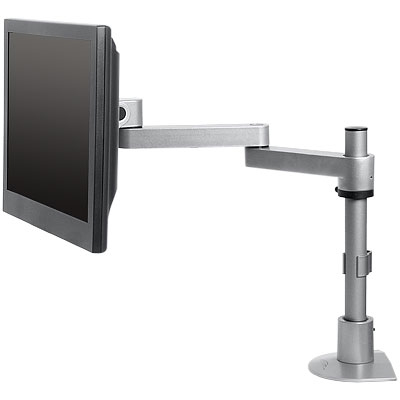

| ![Click to enlarge Long Reach Lateral LCD Arm on Pole, extended](https://www.ergonomicdistribution.com/images/gallery/innovative_hat_long_reach_lateral_lcd_arm_on_pole_g2_125.jpg) Long Reach Lateral LCD Arm on Pole, extended

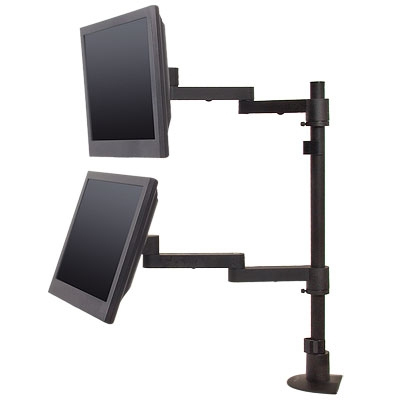

| ![Click to enlarge Long Reach Lateral LCD Arm on Pole, two monitors](https://www.ergonomicdistribution.com/images/gallery/innovative_hat_long_reach_lateral_lcd_arm_on_pole_g3_125.jpg) Long Reach Lateral LCD Arm on Pole, two monitors

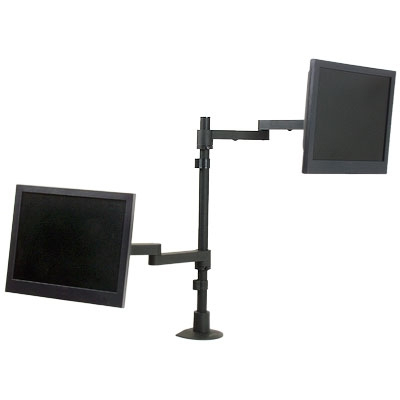

| ![Click to enlarge Long Reach Lateral LCD Arm on Pole, two monitors, facing different directions](https://www.ergonomicdistribution.com/images/gallery/innovative_hat_long_reach_lateral_lcd_arm_on_pole_g4_125.jpg) Long Reach Lateral LCD Arm on Pole, two monitors, facing different directions
| |
| Technical Specifications |
---|
| Models |
---|
For related products, visit our online product listing. | Model # | Description | Synnex SKU |
---|
9130-S-28-FM-124 | Metallic silver, single, 28" pole. | | 9130-S-14-FM -104 | Black, single, 14" pole | | 9130-S-28-FM-104 | Black, single, 28" pole | | 9130-D-28-FM-124 | Metallic silver, dual, 28" pole, (75 & 100 mm VESA fixed adapters) | | 9130-D-28-FM-104 | Black, dual, 28" pole, (75 & 100 mm VESA fixed adapters) | |
| Accessories |
---|
Model # | Description |
---|
8336-QR-124 | Quick Release Adapter, Silver Allows for quick attach and release of the monitor. Accommodates VESA 75 and 100 monitors. Pivots and turns with user-adjustable tension. | 8336-QR-104 | Quick-Release Tilter, Black | 8409-104 | Handle Set for LCD Monitors, Black | 8409-124 | Handle Set for LCD Monitors, Silver | 8291-119 | Handle Set for LCD Monitors, Metallic Silver (older model) | 8171-6-104 | 6" Extender Tube, Black | 8171-6-124 | Large Extender Tube, Silver This extender tube will raise the height of your arm by 6" (recommended), which will allow you the full range of vertical movement when the arm is deployed over a desk top surface. It does not impede 360° rotation. SPECIAL ORDER ONLY. NO 30 DAY CSG |
|
|
