LCD / LCD TV Wall Mount

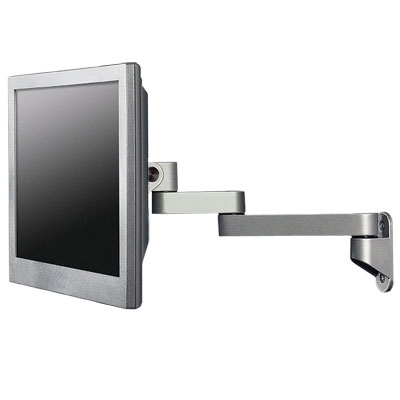

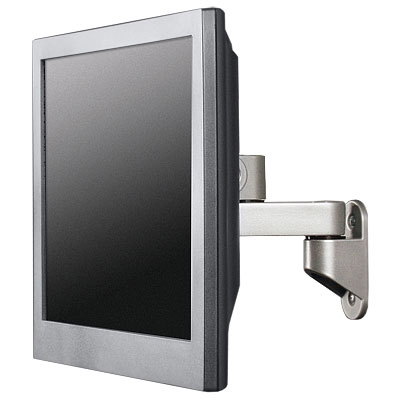

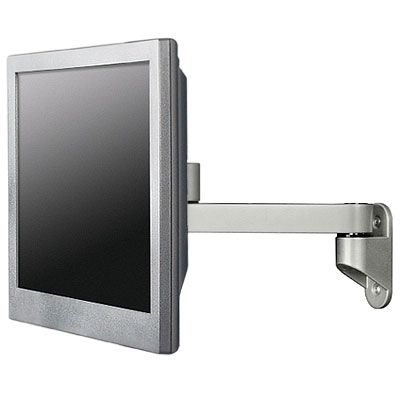

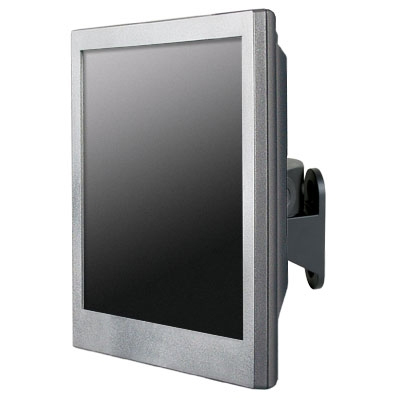

The LCD/LCD TV Wall Mount from Innovative allows you to hang your flat panel on the wall to save maximum space. It is able to tilt up and down, as well as left to right, and can be extended by up to 4", 8.5", or 12" (with 4" and 8.5" extender arms, used singly or in combination). With adjustable tension at joints, the LCD Wall Mount is ideal for touch-screen applications and can support monitors up to 45 lbs. The Silver base mount (9110) is only available by special order and is more expensive than the black base mount.

• Horizontal Adjustment Range: 0", 4", 8.5", or 12.5" (depending on model selected)
  (0 cm, 10.2 cm, 21.6 cm, or 31.8 cm)
• Vertical Adjustment Range: 0" (0 cm)
• Weight Capacity: Varies with Extension Range:
  9110-104: 30 lbs (13.6 kg)
  9110-4-104: 30 lbs (13.6 kg)

  9110-8.5-104: 28 lbs (12.7 kg)
  9110-8.5-4-104: 22 lbs (10.0 kg)
  9110-124: 30 lbs (13.6 kg)
  9110-4-119: 30 lbs (13.6 kg)
  9110-8.5-119: 28 lbs (12.7 kg)
  9110-8.5-4-119: 22 lbs (10.0 kg)
• Monitor Tilt:
  Vertical: 30°
  Horizontal: 30°
• VESA Mount Compatibility: VESA 100 with Quick-Release Adapter (unless noted below)
  Note: Models 9110-4-104 and 9110-8.5-104 are equipped with a VESA 75/100 fixed mount
• Warranty: 10 Years
