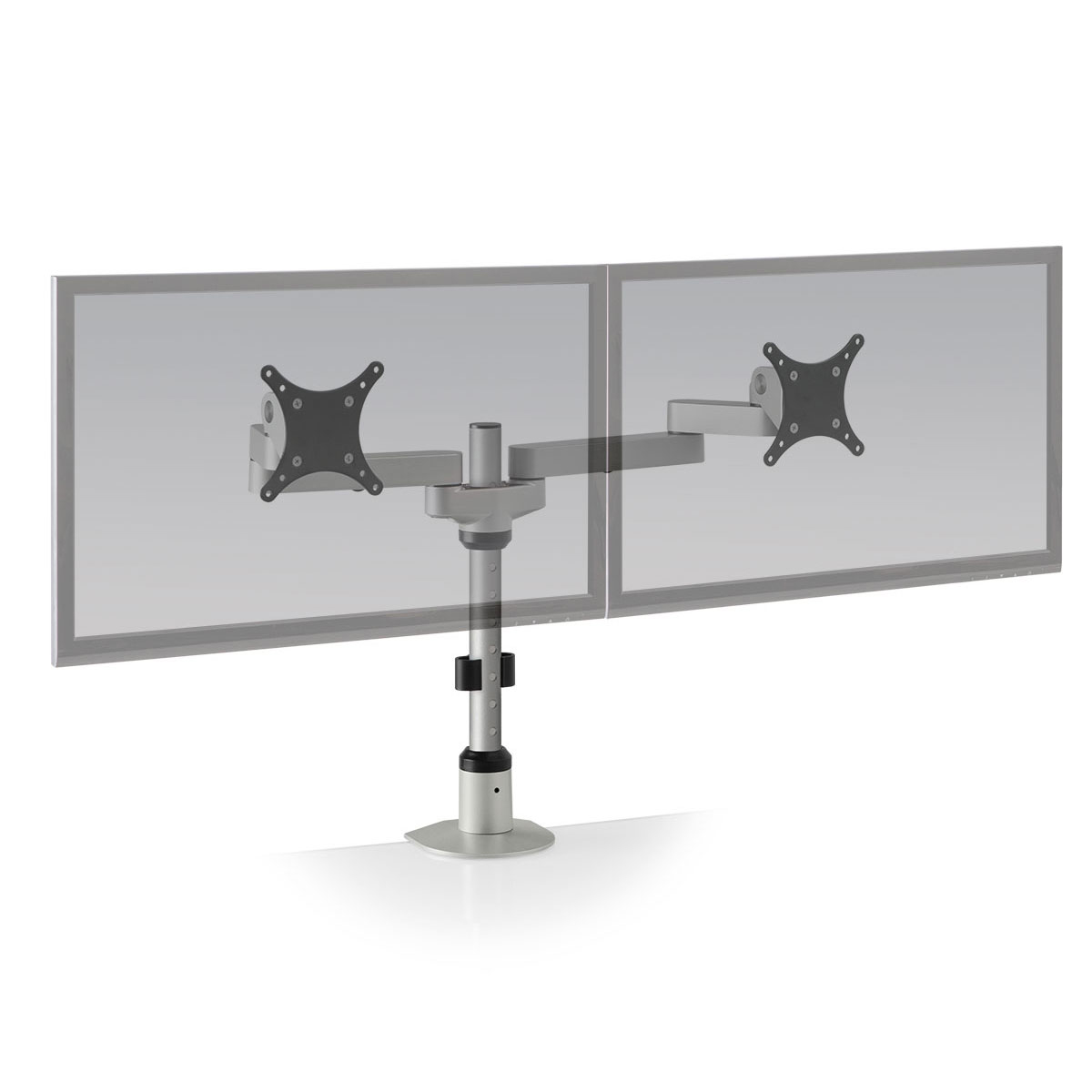

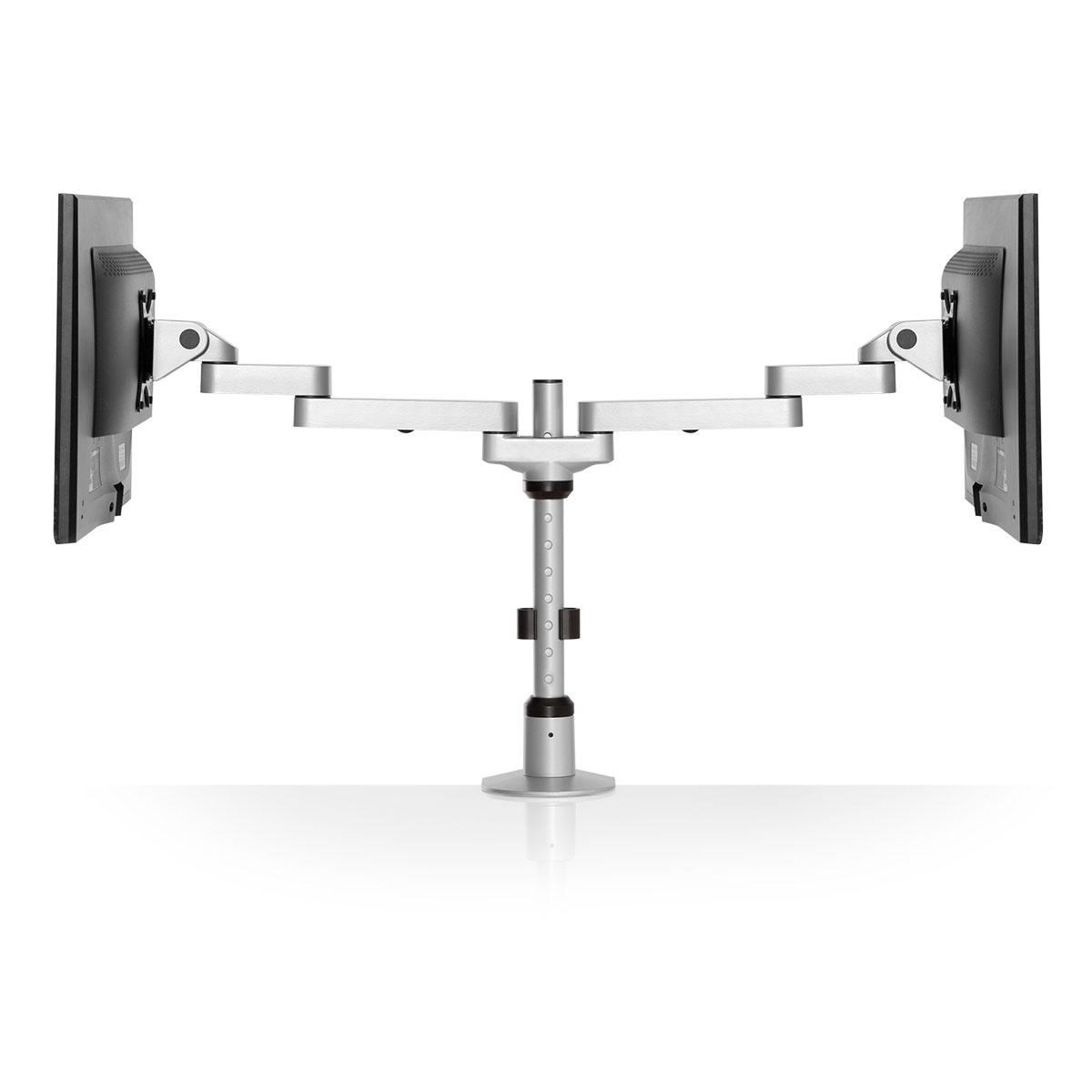

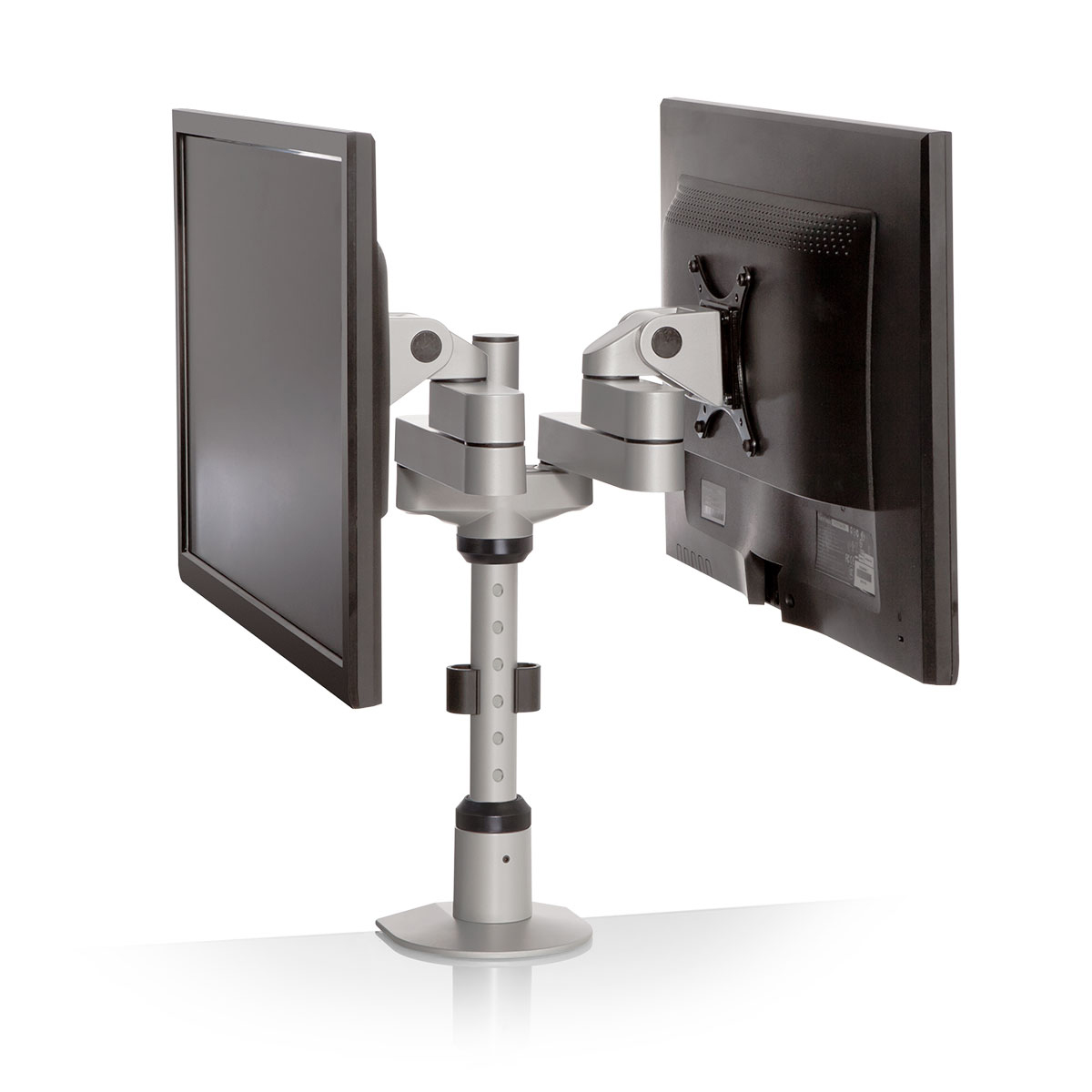

EURO Series - Dual Monitor Pole Mount

The EURO Series - Dual Monitor Pole Mount from Innovative LCD Arm features dual articulating arms which can be adjusted vertically through an 8" range along the 12" support pole. Both arms can fold up to fit in about 3" of space for back-to-back applications and extend out to provide 13.4" of extension from the support pole. For side-by-side viewing there is enough lateral extension to accommodate most 24" diagonal monitors. Cable clips and internal channels in each arm allow cables to be positioned to move with the arms. The Euro Series pole features eight notches at 1" increments which will provide a solid positive connection to position and secure the sliding adjustment clip. This clip prevents the arm extensions from sliding down, securely fastening the extension at the desired height.

The Dual Monitor Pole Mount comes with VESA plates to accommodate both 75mm and 100mm patterns. Monitors can be rotated between Portrait and Landscape modes, can pan fully left and right, and can tilt up to 190°.

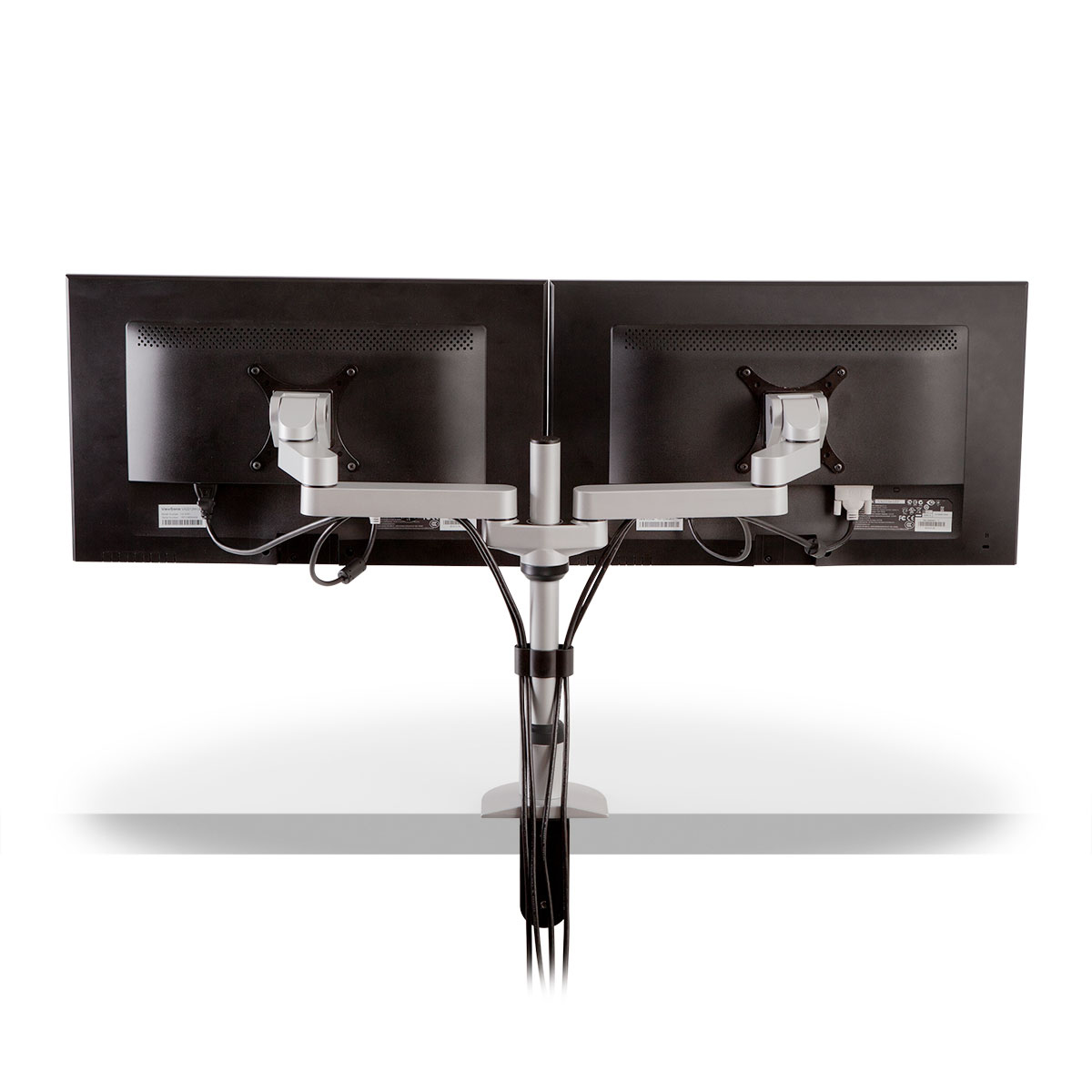

• Cable Management: Clips & Internal Channels
• Vertical Adjustment Range: 8" (20.3 cm)
• Weight Capacity: 30 lbs (13.6 kg)
• Tilt Adjustment: 190°
• Mount Options:
  The Universal FLEXmount which comes with this arm can be installed in 6 different configurations which will handle most mounting scenarios. Best of all, if it becomes necessary to change the way the arm is mounted several months after purchase, there is nothing more to buy - simply reconfigure the universal FLEXmount. This convertible mounting solution is also ideal for what can be challenging mounting scenarios for other arms such as thick desk edges, desk edges with longer trim and surfaces with a small lip. Additional mounting accessories are available to mount to financial trading slatwall, slotted panel furniture systems, and poles.

  • Through the Desk - Bolt through the desk. Requires a 3/8" hole.
  • Desk Edge (Using Clamp) - Clamps to the edge of the desk, no drilling required.
  • Wall Mount - This heavy-duty wall mount will provide rock-solid security for the arm and monitor. Mounts vertically to the wall surface. Not recommended for dry wall, sheet rock or plaster surfaces.
  • Reverse Wall Mount - An alternative mounting method
  • Side Bolt (Panel System Rear Edge) - Mount to the solid side of a desk
  • Grommet Hole Clamp Mount - For Grommets 2" and larger
• VESA Mount Compatibility: 75mm and 100mm plates included
