| Ergonomic Benefits Features Usage Tips Accessories |
| Product Summary |
|---|
The Envoy Articulating Monitor Arm from Innovative-HAT requires minimal effort to adjust for any desktop application. Rated for monitors from 2.2 to 19.8 lbs, this arm comes with a streamlined cable management system and an easy to install mounting system, either clamping or through the desk. Standard colours are black and silver. |
| Images and Multimedia |
|---|

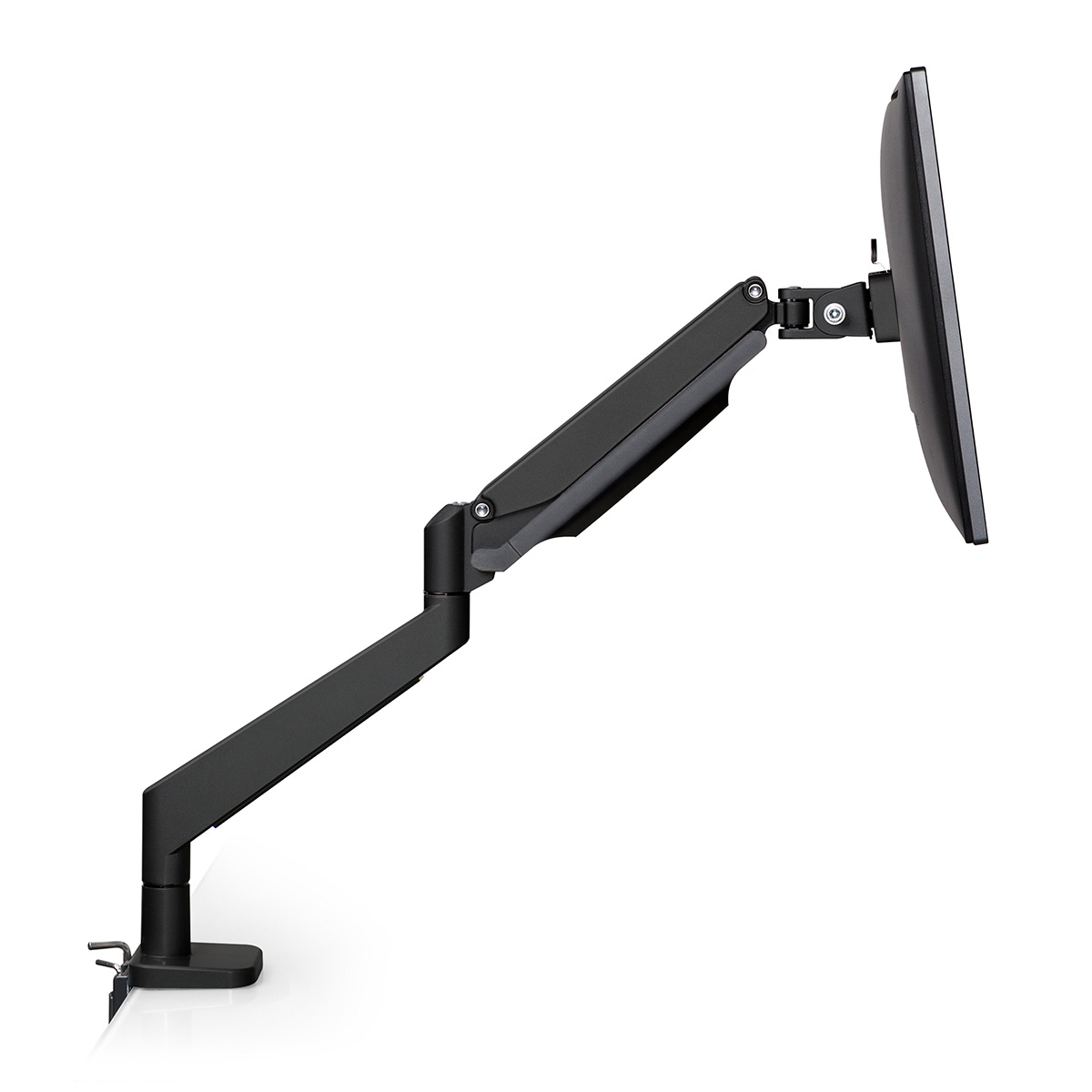

Envoy Articulating Monitor Arm
|

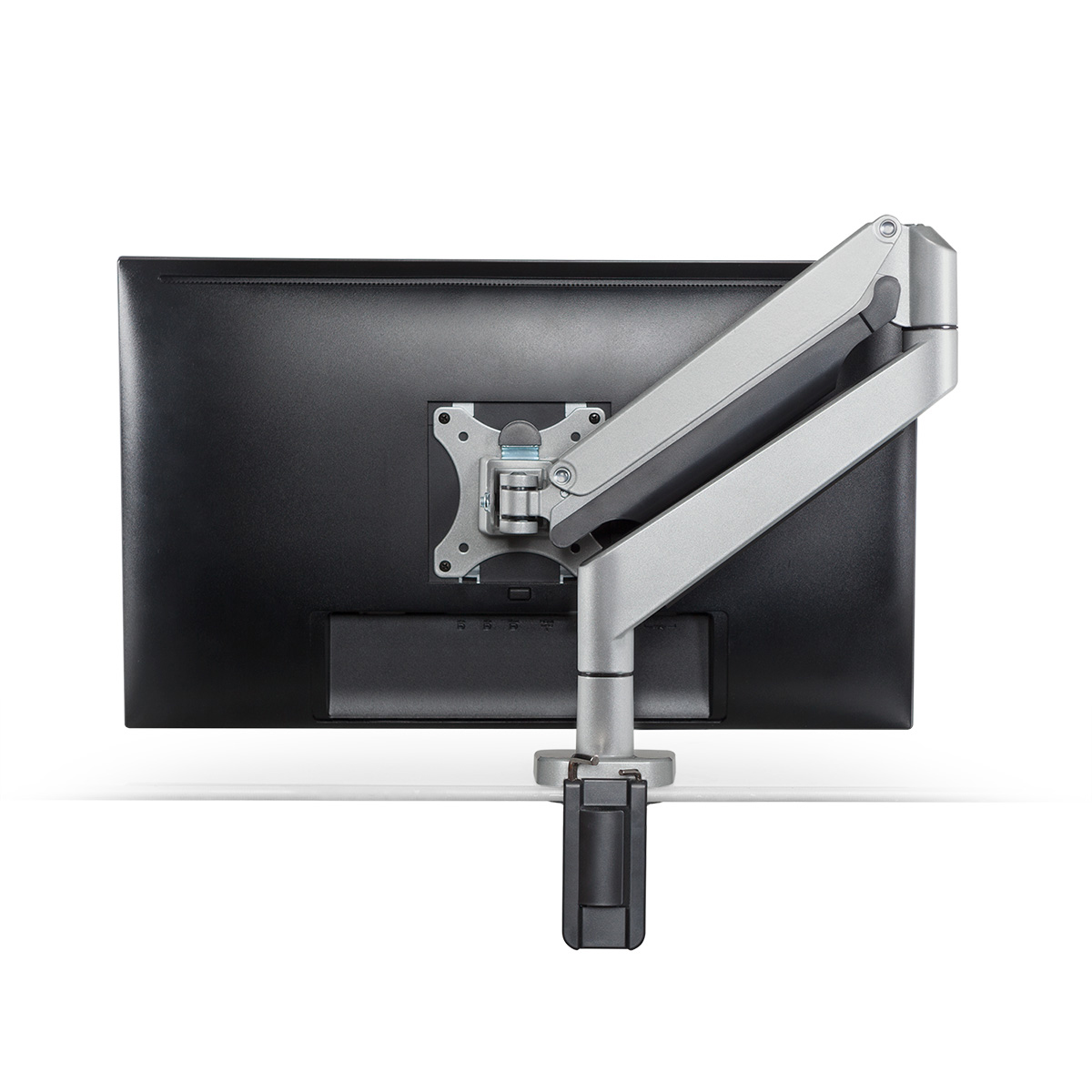

Envoy Articulating Monitor Arm - Back view
|

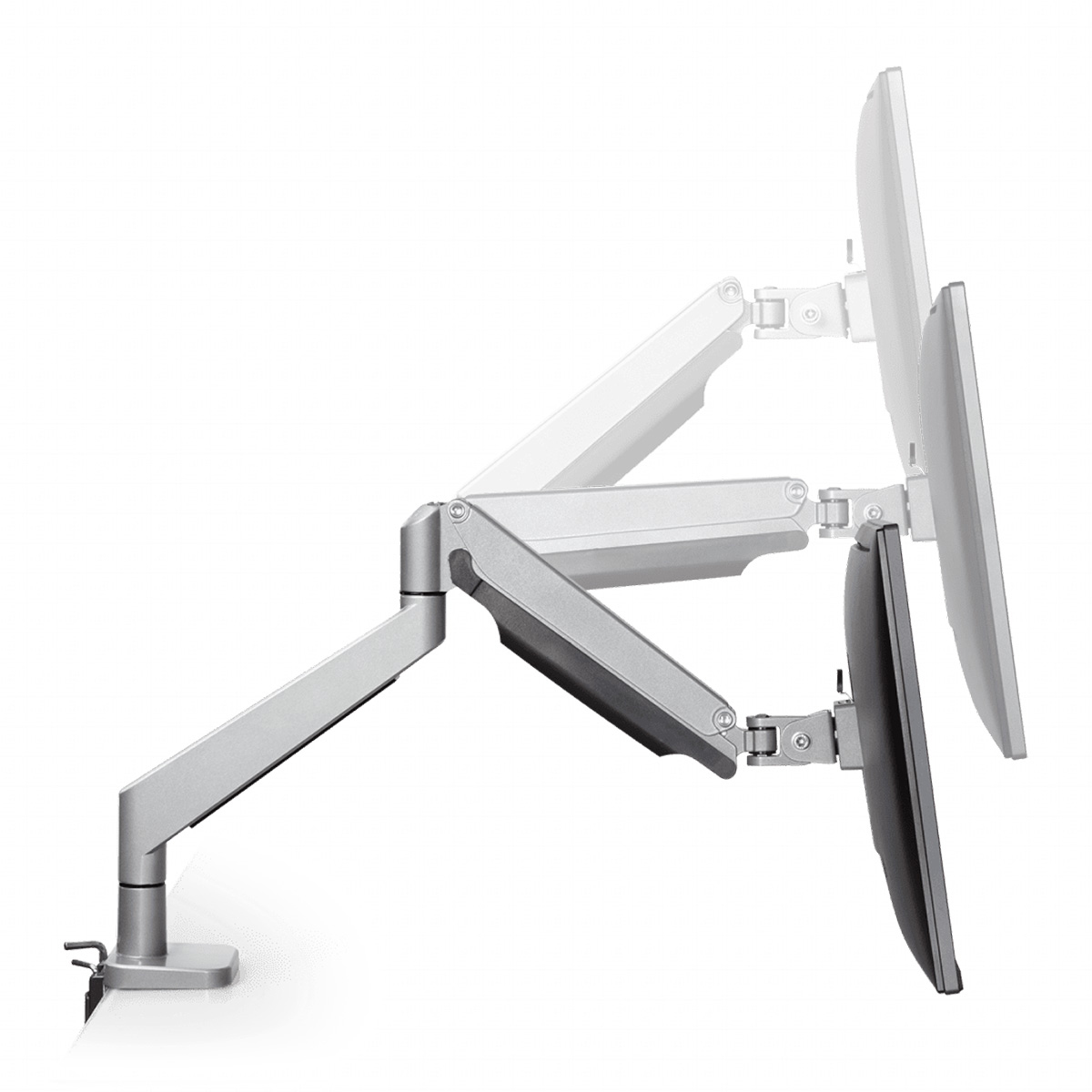

Envoy Articulating Monitor Arm - Height Range
|
Envoy Articulating Monitor Arm - Highest Range
|

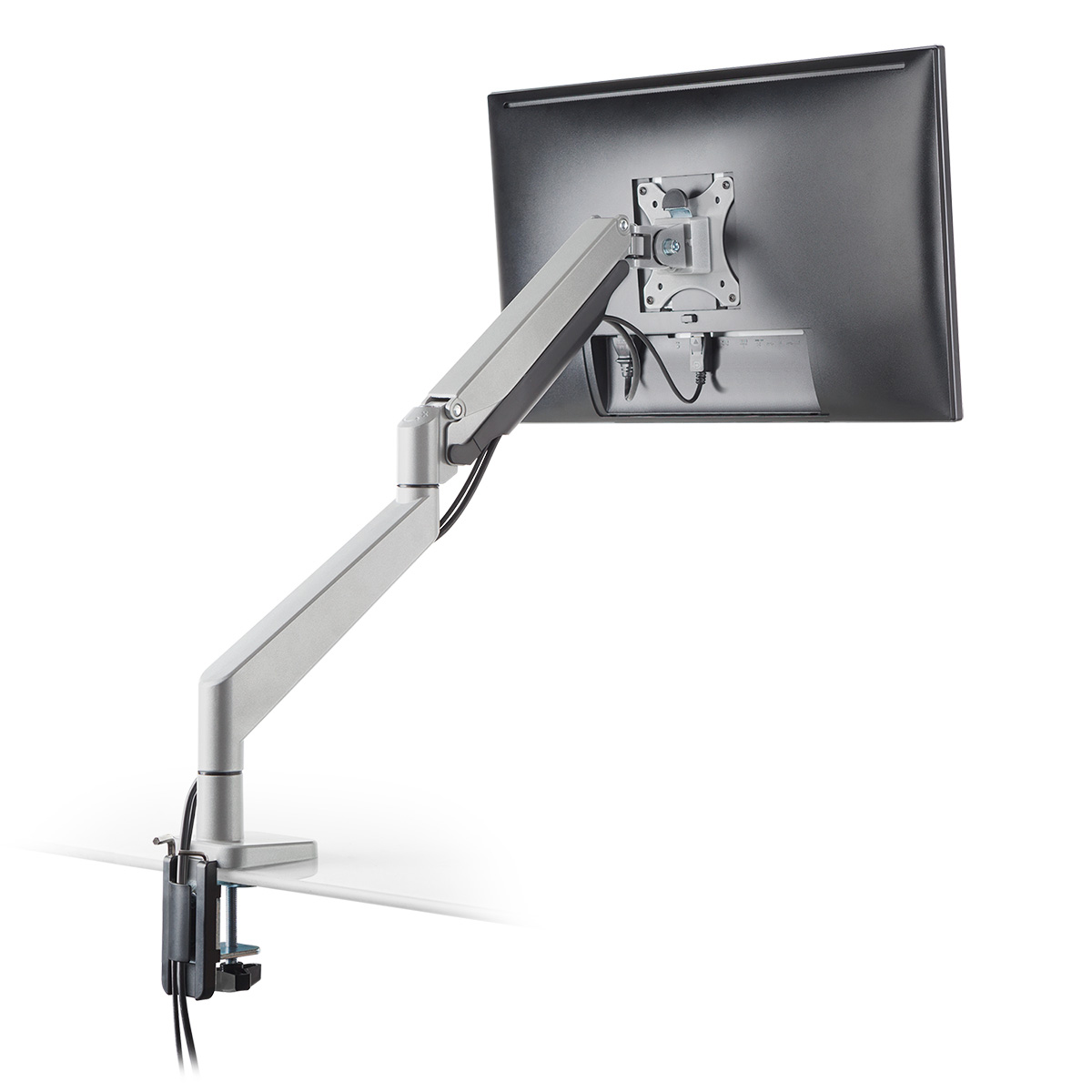

Envoy Articulating Monitor Arm - Installation
|
|
| Technical Specifications |
|---|
- Adjustment Range: 13.2" up and down
- Minimum Height: 7.0" above mounting point
- Maximum Height: 20.2" above mounting point
- Max Monitor Size: Up to 32"
- Weight Capacity: 2.2 to 19.8 lbs
- Extension Range: 23.7"
- Tilt: 180°
- Pivot: Landscape/Portrait
- Rotation: 270° at base, 360° at mid joint, 180° at upper joint
- VESA Compatible: Yes, 75 and 100mm, quick-release adapter included
- Mount Options: Desk Edge, Thru-Desk
- Warranty: 10 years manufacturer
|
| Models |
|---|
| For related products, visit our online product listing. |
| Model # | Description | Synnex SKU |
|---|
| ENVOY-1-BLK | Black, supports monitors 2.2 - 19 lbs. | | | ENVOY-1-SVL | Silver, supports monitors 2.2 - 19 lbs. | |
|
