Big Keys Keyboard LX (USB)

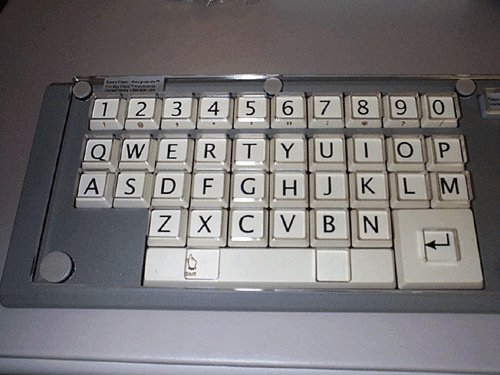

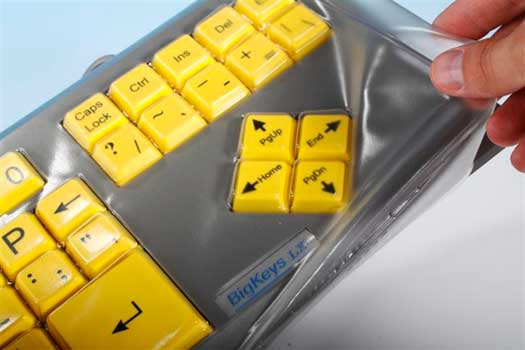

This keyboard features easy to target 0.75" x 0.75" keys, and is the only keyboards which offers full 101 key keyboard functionality with a large key keycap. All BigKeys keyboards are hard-wired to be switchable between ABC and QWERTY layouts, and you can rearrange the keycaps to match custom layouts you may have created in your operating system or software. The Function Keys are generated by pressing and holding the 'F' key and then the number i.e. "F" (as a modifier) and "3" becomes F3. Pressing and releasing the F key generates the usual letter F. Available accessories include protective skinguards (to prevent against damage from spills, etc.) and rigid plastic keyguards are available for individuals needing further targeting assistance. All keyboards have a grey housing, but color options on the keys are as follows: White Legends on Black Keys, or Black Legends on Yellow Keys.

• Large, easy to read and target key legends: All keys are easy to see - 0.75" wide by 0.75" deep (1.9 cm wide by 1.9 cm deep) at the top of the keycap!
• Switchable layout (hardwired): Familiar QWERTY or ABCkey layout, switch between them by moving the switch on the bottom of thekeyboard with a pencil tip toward the lower edge of the keyboard for ABCor toward the upper edge for QWERTY. Although the letters on the keycapswill remain the same, the computer will interpret all keystrokes as comingfrom the alternate keyboard layout.

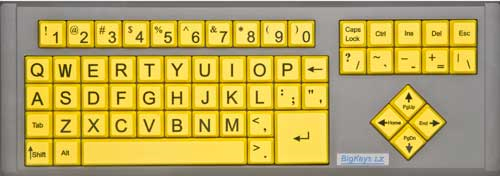

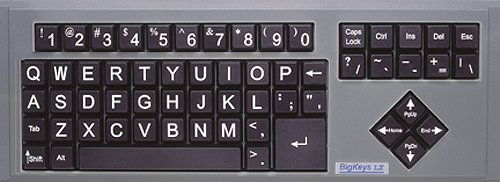

• Easy to read key labels: Large black letters on yellow keys OR white letters on black keys.
• Contains all essential characters: 97 character keyset
• No special software required: Just plug into your PC in place of the regular keyboard.
• Run-on eliminated: Each key press generates only 1 character, no matter how long the key is held down.
• F1-F10 keys: Press and hold the "F" key and thenumeric keys become F1-F10. To Accommodate one-handed operation, BigKeys LX provides an Assist Mode. In Assist Mode, function keyscan be produced by successively pressing "F" and the numerickey rather than simultaneously pressing the 2 keys.
• Assist mode: To Accommodate one-handed operation. In Assist Modefunction keys can be produced by successively pressing "F"and the numeric key rather than simultaneously pressing the 2 keys. To enterAssist Mode, press the Caps Lock key three times in a row. Toexit Assist Mode and return the keyboard to normal operation, againpress the Caps Lock three times in a row.
• All punctuation and special character keys: All punctuation and special characters that are available on a standardkeyboard except the numeric keypad, the Scroll Lock key, and the Pause/Breakkey.
• Punctuation and Other Special Keys:

  • Regular numeric keys:	1	2	3	4	5	6	7	8	9	0
    Shifted numeric keys:	!	@	#	$	%	^	&	*	(	)

  • Other Special Characters: : ; " ' < , > . ? / ~ ` _ - + = | \ { } [ ]
    • Note: The seldom-used bracket characters are hidden on the keyboard. Use the F key in combination with another key, as follows:

      For this character	Use these keys
      [	F with ;
      ]	F with '
      {	F with :
      }	F with "

  • F11 and F12: For F11: press the "F" key and the "/" key (under the Caps Lock key), For F12: press the "F" key and the "`" key (under the Ctrl key).
  • Cursor Control Keys: Left, Right, Up, Down - When you press and hold the "F" key, these become ...Home, End, PgUp, PgDn
  • Print Screen key: Press the "F" key and the "P" key.
  • Other function keys: CapsLock, Ctrl, Ins, Del, Esc, Tab, Shift, Alt

• Width: 19" (48.3 cm)
• Depth (front to back): 7" (17.8 cm)
• Height: 1" (2.5 cm)
• Weight: 2.5 lbs (1.13 kg)
• Number of keys: 60 oversized keys
• Key pitch: 1.0" (2.5 cm)
• Keyswitch type: Mechanical
• Keyswitch rating: 10 million actuations
• Key caps: High-impact,injection-molded ABS caseand keycaps withwear-resistant UV coatedkeycap printing
• Key cap size: Each key cap is extralarge - 0.75" wide by 0.75"deep (1.9 cm wide by 1.9cm deep)
• Included in the box: "https://www.ergocanada.com/products/keyboards/big_keys/bk_lx_instructions.pdf">Instruction Manual/User Guide
• Compatible with:: Windows and Mac Operating Systems
• Interface: USB
• Warranty: Manufacturer direct
