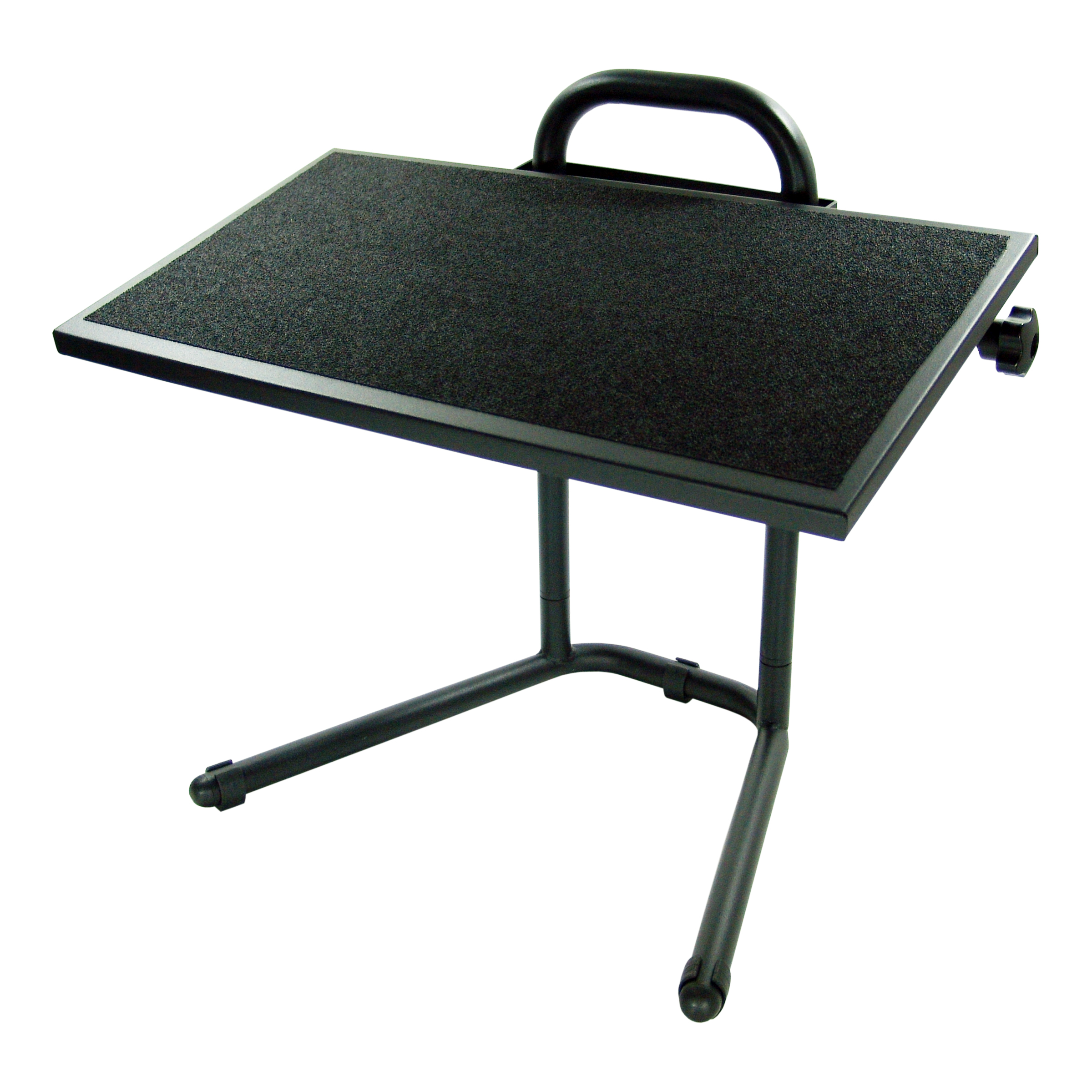

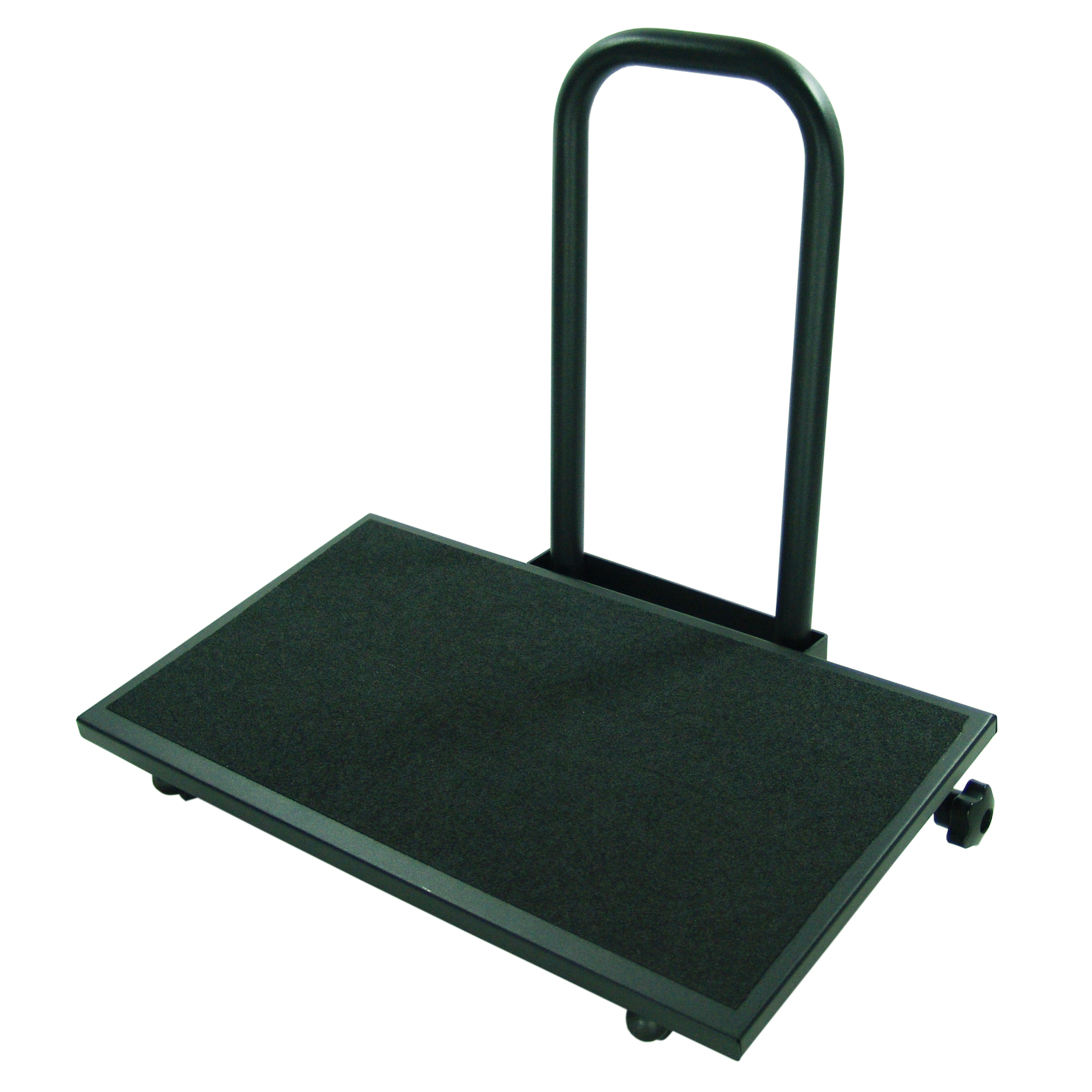

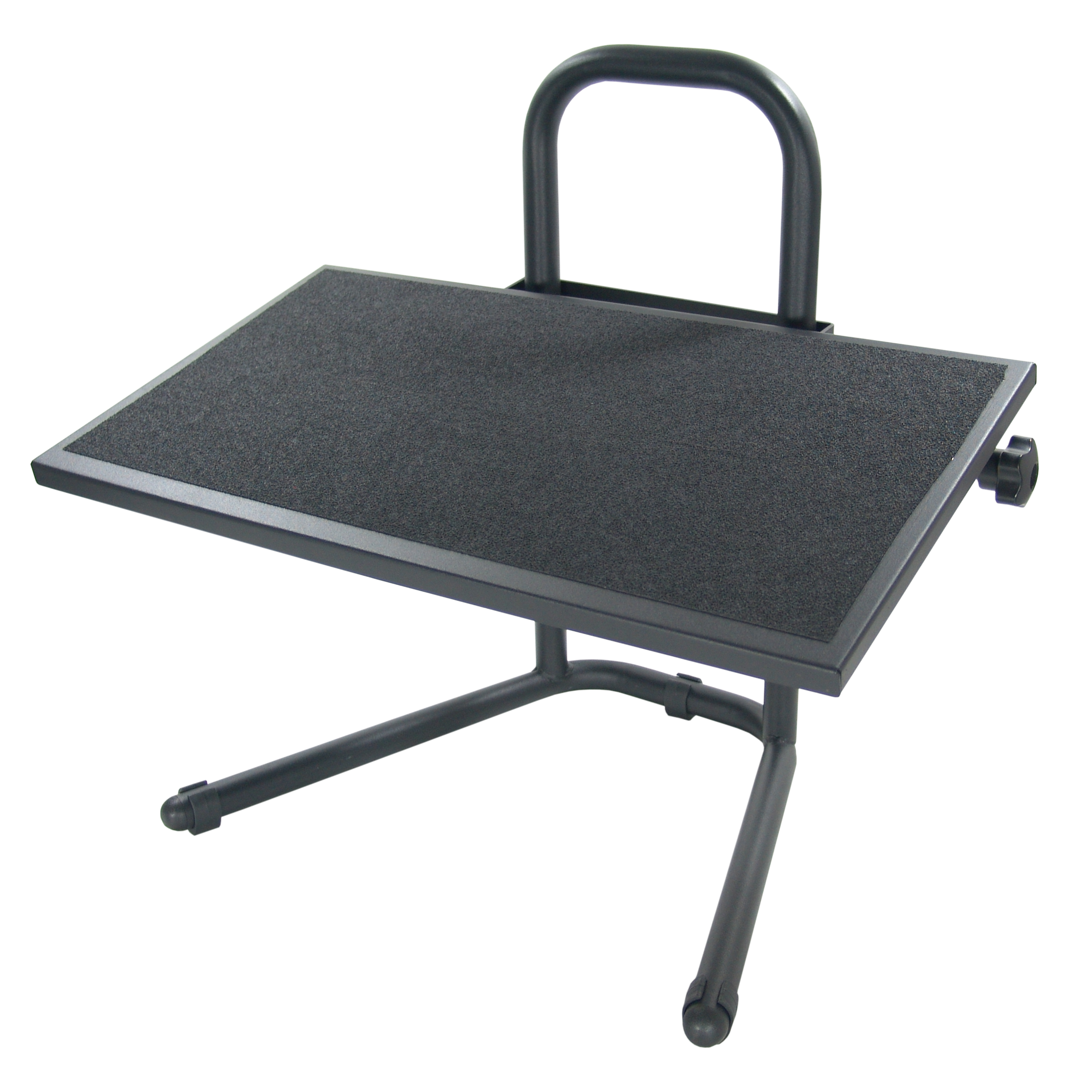

BOOTES Heavy Duty Foot Rest

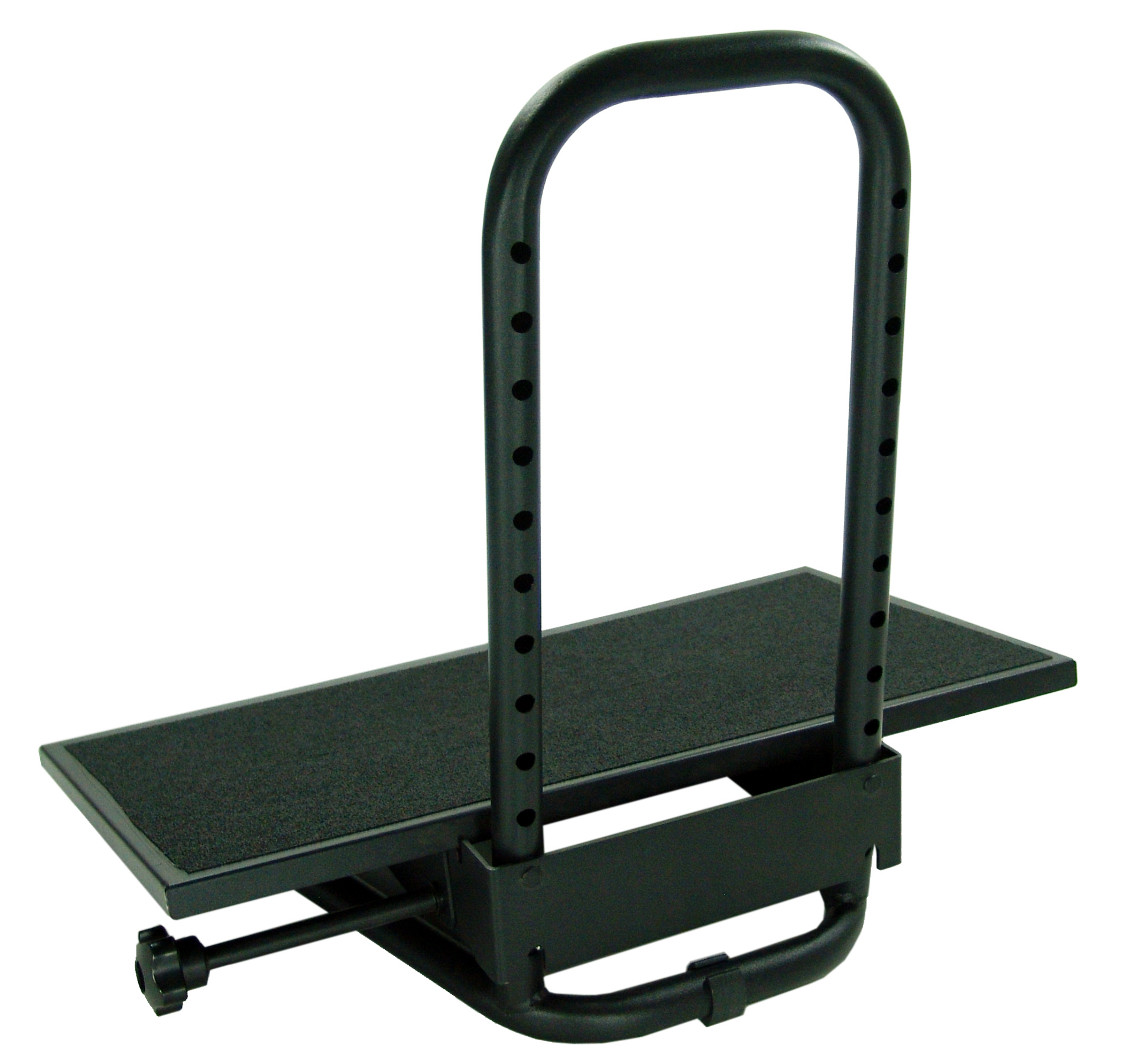

The BOOTES Heavy Duty Foot Rest from ErgoVerse features a large 23.5" wide x 13" deep platform mounted to a sturdy tubular steel frame. The oversized steel platform tilts from 12° - 31° and can be locked in place at any point within this range. For ease of transport the frame also conveniently serves as an integrated handle.

The BOOTES Heavy Duty Foot Rest is height adjustable in 1.5" increments ranging from 3.5" to 17" above the floor, 11 positions in all, for an exceptional range of adjustment. The gravity-lock pin system ensures a stable platform height and provides for ease of adjustment. Deep, widely splayed legs ensure stability while keeping the floor as clear of obstructions as possible. Heavy duty steel construction ensures durability and longevity. For the ultimate in safety the BOOTES Heavy Duty Foot Rest is also surfaced with 3M™ Safety-Walk™ Slip-Resistant General Purpose Tread, a proven and effective traction finish that prevents slippage.

• Easy Adjustment: Height adjustment of the BOOTES foot rest platform is easily accomplished with minimal effort. Two locking pins insert into the rear of the upright column to support the platform, locking it into position as the front edge is lowered into place.
• Wide Range of Height Adjustment: The BOOTES Heavy Duty Foot Rest offers 11 height settings ranging from 3.5 - 17" from the floor. This means that it can meet the foot rest requirements for virtually anyone who is seated on drafting and teller style raised seating.
• Locking Tilt (12° - 31°) Platform: The foot platform can be locked at any point within the 19° tilting range. This provides a comfortable resting surface as well as ensuring that the feet are not subjected to a position of plantar flexion.
• Extra-Large Foot Platform: The oversized 23.5" W x 13" D surface on the BOOTES Heavy Duty Foot Rest offers plenty of support for feet of any size.
• Textured Non-Slip Surface: For safety and to keep feet comfortably positioned the BOOTES Heavy Duty Foot Rest is surfaced with 3M™ Safety-Walk™ tread. This aggressively textured tread material can greatly reduce the risk of feet slipping off the platform at even the greatest angle.
• Robust Construction: The BOOTES Heavy Duty Foot Rest features robust all-steel construction.

• Dimensions:
  Overall: 24.5" (62.5 cm) W x 15" (38.1 cm) D x 22" (55.9 cm) H
  Platform:

  • Width: 23.5" (59.7 cm)
  • Depth (front to back): 13" (33.0 cm)
• Weight: 15.5 lbs (7.04 kg)
• Height Adjustability (above floor):
  Minimum: 3.5" (8.9 cm)
  Maximum: 17.0" (43.2 cm)
  11 increments of 1.5" (3.8 cm)
• Tilt:
  Range: 12° to 31°
  Locking: Locks at any position within the tilt range
• Materials: Durable tubular steel frame, steel footplate, 3M™ Safety-Walk™ Slip-Resistant Tread
• Warranty: 2 years
• Package Contents: BOOTES Heavy Duty Foot Rest
• Assembly Time: Minimal Assembly Required
• Tool Required: No Tools Required

• Set your BOOTES Heavy Duty Foot Rest to the correct height. Your feet should be supported at such a height that your feet are resting comfortably on the footrest without tilting the chair forward or having to stretch to reach the footrest. However, ensure that the platform is not set too high as this will lift the thighs off the seat pan of the chair, reducing overall comfort while also tilting the pelvis backwards and adding undesired pressure to the lower lumbar region.
• Adjust the platform angle to optimize your comfort and to achieve as neutral an alignment of your ankles as possible.
