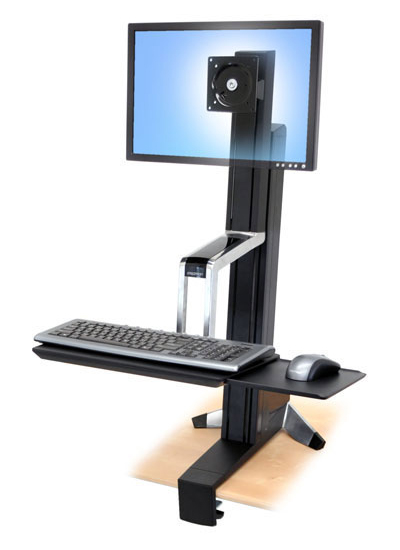

The WorkFit-S clamps on to the front edge of your desk and uses the Ergotron's Constant Force spring lift mechanism to assist in moving the keyboard tray and monitor through the range of motion. The vertical adjustment range is 18", and the monitor mount independently can vertically adjust an additional 5". The desk edge must be between .47" and 2.4" thick for the clamp to function, and the monitor must be between 6 and 16 lbs for the LCD pivot to function correctly. The keyboard tray is 16.5" wide x 9.3" deep, and the slide-out mousing surface is 7.5" wide x 7.9" deep, and the maximum weight on the keyboard surface cannot exceed 3 lbs.
NOTE: It is recommended to strengthen the mounting point to prevent damage to the desktop. |
