The Triple Horizontal 100 Series Desk Stand is an expandable, modular, tool-less freestanding monitor mounting solution which allows three monitors to be positioned in a seamless "side-by-side" orientation. The 25" wide crossbar with telescoping wings provides up to 5 extra inches of extension on each side of the crossbar, accommodating up to three 27" monitors (measured diagonally bezel to bezel). This unit has 2 Height Adjustable Quick Release Pivots which can be precisely adjusted up and down using a simple knob. Both these outer pivots and the central standard pivot are capable of tilting 20° up, 10° down and 25° left and right. This allows sufficient range of movement to ensure monitors are in almost any desired position relative to each other in addition to the capability of rotating from portrait to landscape orientation. All pivots are VESA 75 and 100 compatible and easily moved along the crossbar, or removed from the stand in seconds. The heavy weighted 18" wide x 16" deep heavy duty base is 29 lbs and the vertical pole is 16". | Ergonomic Benefits |
---|
Reduces the Risk of Neck Injury A primary risk factor for injury in an office setting is an improperly positioned monitor. A good articulating monitor arm will help eliminate that problem by allowing height adjustment for the monitor relative to the desk surface on which the keyboard and mouse are situated. The Triple Horizontal 100 Arm provides 16" of vertical adjustment with additional "concave" adjustment along the outer edges of the crossbar, making it easier to adjust the monitor height to an optimal position while sitting. SPECIAL NOTE FOR THOSE WITH MULTIFOCAL OR PROGRESSIVE LENSES: As those with multifocal lenses rely on the lower portion of their glasses for "near" vision, they generally require the monitor to be positioned at a much lower height vertically than individuals with no glasses or who only have single-vision lenses. Failing to address this will force the adoption of an uncomfortable extension at the neck, as they tilt their head back in order to be able to view out of the lower portion of their corrective eyewear. Those with multifocal eyewear may be able to position their monitors far enough away for best viewing at the intermediate range. Doing so can mitigate the neck extension as it may eliminate the need to tilt the head. A pole arm like the Triple Horizontal 100 Arm gives more options for positioning the monitor not only lower but at the right distance and angle to make viewing through these types of eyewear more comfortable.
Monitor Arc Adjustment The Triple Horizontal 100 Arm has two hinged side arms to allow the monitors on the ends to be angled inward at varying degrees, creating an optimal arc for viewing all three screens. This ease of adjustment is a great advantage for those who need the greatest flexibility of positioning, which is essential when using three monitors all in a row.
Increases Desktop Space By raising the monitor above the worksurface, space on the desktop is made available for storage and other office accessories (phones, calculators, etc.).
Optimizes the Viewing Angle Monitors are best viewed when the screen is aligned parallel to the face. The ideal angle of the monitor is not necessarily perpendicular to the desk in all cases, however, since many may feel more comfortable slightly tilting their head forward, especially when working in a standing position. Note: As the head tilts forward, there is typically increased weight and load placed on the muscles in the neck, and as such any flexion should be limited to no more than 10 degrees.
Eliminates Glare Adjusting the vertical and horizontal angle of the monitor will allow elimination of glare.
Helps Maintain Good Posture When Seated When a monitor is too low or high, individuals may choose to adjust the position of their torso instead of or in addition to their neck in an attempt to accommodate incorrect monitor height. This will often result in them leaning forward, shifting out of the ideal "S" posture in the spine, and losing any potential lumbar support that their chair provides. The correct monitor height may prevent this risk factor from arising.
| Features |
---|
- Dual-Joint Extension Arms: The Triple Horizontal 100 Arm contains two extension arms connected at two free-moving joints, making it easy to arc all three monitors at the desired distance.
- Vertical Range: The Triple Horizontal 100 Arm offers a full 16" of vertical range, which is sufficient (if mounted at the ideal height) to provide an appropriate range for sit-stand adjustment for individuals up to 5'10" tall. Although this height-adjustable range is not designed for constant readjustment, it is still useful when initally setting up monitors.
- Solid Metal Base: The Triple Horizontal 100 Arm has a solid metal base which supplies stability to the extended arms and monitors while keeping the whole unit freestanding (no clamping or drilling necessary). For those who prefer a clamp mount, a clamping model is also available.
- Monitor Tilter: The monitor tilter mechanism provides 20° of positive and 10° of negative tilt adjustment for optimizing views at different angles.
- Quick-Release Monitor Brackets: If there is a need to switch monitors into different positions along the crossbar and extension arms, the Triple Horizontal 100 Arm has quick-release brackets which make this easy to do. There is no need to detach and re-attach the VESA mounts, they simply transfer with the monitors.
- Monitor Rotation: The monitor tilter mechanism provides 360° of monitor rotation allowing rotation from landscape to portrait orientation, even upside down (if required).
- Cable Management: Cable clips provide cable management to prevent cables from dragging on the desk.
| Images and Multimedia |
---|

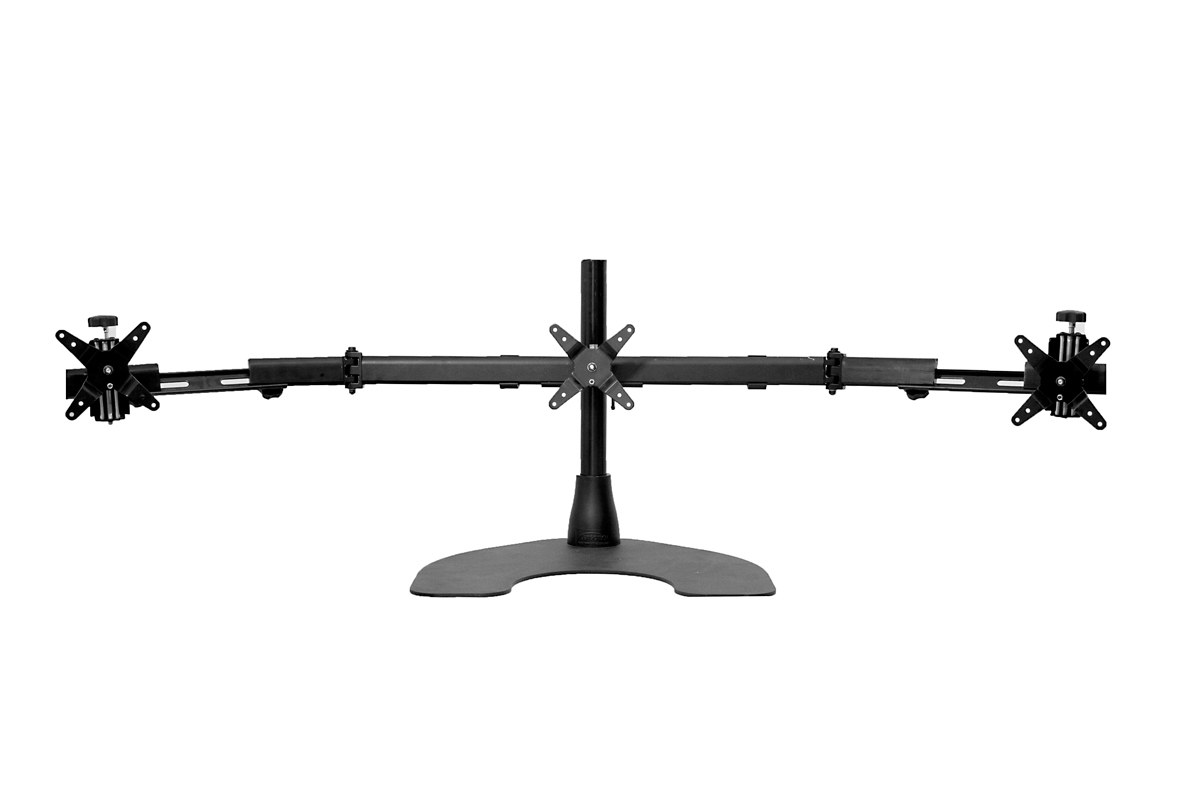

![Click to enlarge Ergotech Group Triple Horizontal 100 Series Desk Stand - Freestanding](https://www.ergonomicdistribution.com/images/gallery/ergotech_group_triple_horizontal_100_series_desk_stand_g1_125.jpg) Ergotech Group Triple Horizontal 100 Series Desk Stand - Freestanding

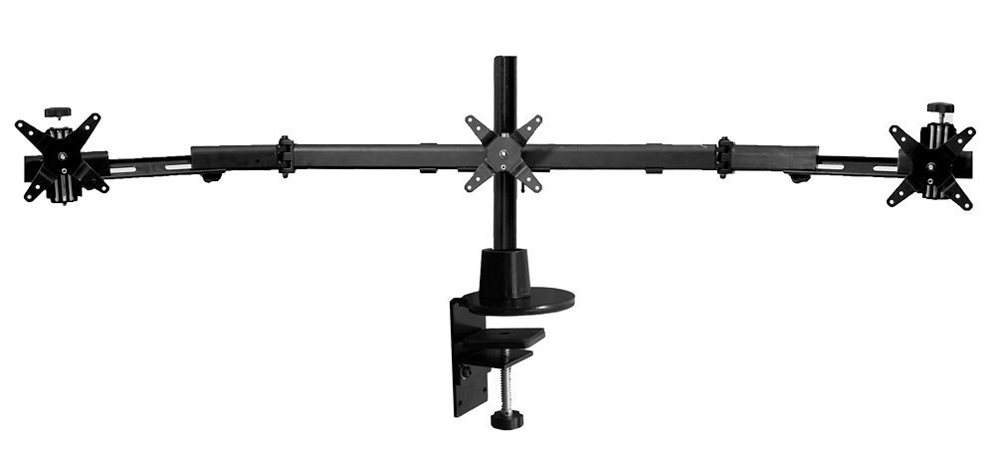

| ![Click to enlarge Ergotech Group Triple Horizontal 100 Series Desk Stand - Clamp Mount](https://www.ergonomicdistribution.com/images/gallery/ergotech_group_triple_horizontal_100_series_desk_stand_g2_125.jpg) Ergotech Group Triple Horizontal 100 Series Desk Stand - Clamp Mount
|
| Technical Specifications |
---|
- Pole Height: 16"
- Base Dimensions: 18" x 16"
- Horizontal Bar Length: 25"
- Max Monitor Size: 27" (diagonally)
- Rotation: 360°
- Tilt: 20°+/10°-
- VESA Compatible: Yes (75/100mm)
- Pivots: 3 (2 with Quick Release)
- Mounting: Freestanding or Desk Clamp
- Colour: Black
| Models |
---|
For related products, visit our online product listing. | Model # | Description | Synnex SKU |
---|
100-D16-B03-TW | Triple Horizontal (3 Wide x 1 High), Freestanding with Base | 5306600 | 100-C16-B03-TW | Triple Horizontal (3 Wide x 1 High), Desk Clamp Model | |
|
|
