L-Trac Switch Adapted

The L-Trac Switch Adapted from Clearly Superior Technologies features the high performance and robust build for which the original PC-Trac line is well-known. The L-Trac features an optical laser sensor which offers "button selectable" tracking resolutions of 400, 800 and 1600 CPI, easily changed on the fly. Combined with this is the ability of the L-Trac to track at speeds exceeding 30 inches per second, even at a 20G acceleration rate. The scroll wheel is smooth and readily accessible, located above the center button. Unique to the Switch Adapted version of the L-Trac is the availability of three jacks which support connection of external switches. Connecting an external switch deactivates the on-board switch for that function - a feature which can be of benefit when seeking to eliminate accidental button activation. This means that the click activations can be performed from alternate locations more advantageous to the user.

The L-Trac provides users with a precision, high performance pointing device. The large 57 mm diameter weighted trackball produces predictable, quick, and precise cursor control. Most users will find that movement becomes intuitive within a few minutes of use, with the level of control increasing over time.

The level of performance and range of features, coupled with the proven contour of the L-Trac makes these trackballs an appropriate option for all applications including general computing, gaming and Computer Aided Design (CAD). CAD users love it because you can drag a line one pixel even on high resolution displays. Then, with a button stroke, they can fly around the screen to get general tasks done. Gamers have called it an "almost unfair advantage", citing the fingertip control and precision, high performance tracking.

Designed to minimize the effects of contamination build up and the resultant degradation of performance, this high performance laser trackball uses highly polished stainless steel rollers. It has been found by CST that the "ruby ball sliders" used in most optical trackballs, cause performance degradation when gunk builds up on them. The L-Trac uses mirror polished stainless steel rollers that do not readily collect unwanted material and are easily cleared by spinning the ball rapidly. The Dupont Delrin bearings are embedded with Teflon and internally coated with a lifetime lubricant making the feel of this trackball extremely smooth and it's reliability very robust. The user-replaceable stainless steel rollers are extremely tough and designed to handle hard usage yet still provide users with controlled smooth movement.

To see examples of switches which can be used with this trackball, check out our Switches category.

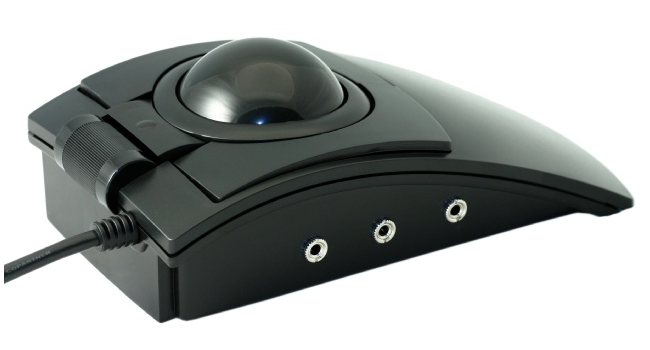

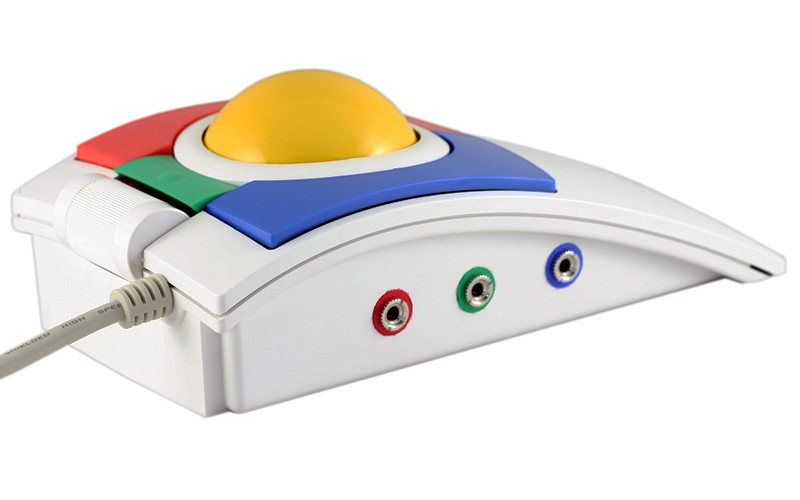

• Switch Adapted Model: The switch adapted L-Trac is a three button device that alsoincludes three 3.5 mm external switch jacks positioned on the side of thetrackball. Users can plug in any standard assistive switch to generate the 3different button actions corresponding to the regular buttons (leftclick, middle click, right click). Switches that can be used with the SAmodels of the L-Trac, PC-Trac or Kid-Trac can be found here.
• 5 Button Model Alternative: The L-Trac is also available in a model with two 3.5 mm external switch jacks allowing the connection of 2 additional switches for a total of 5 buttons (3 built-in, 2 external) for added flexibility. In this case the attached external switches can be programmed to perform 2 actions in addition to those performed by the 3 on-board buttons.
• Universal Compatibility: The universal compatibility of this design means it works well in multi-user environments with a range of individuals.
• Wired Reliability: L-Trac Trackballs employ a wired USB connection which eliminates the potential for wireless to "drop out" at a crucial moment. It also ensures the fastest communication - eliminating any potential for "lag" from wireless.
• Robust Design: Employing strong ABS plastic construction, a virtually indestructible phenolic trackball and stainless steel rollers, Clearly Superior Trackballs are designed with durability a key consideration.
• Multi-Resolution Laser Optical Tracking: The L-Trac is equipped with a laser sensor for precise tracking and control. Users can easily toggle through 400, 800, or 1600 CPI settings to achieve the necessary performance in a matter of seconds without moving their hand from the trackball.
• Low Profile: The low profile case of the L-Trac acts as a natural hand-rest, mirroring the natural contours of the hand.
• Large Weighted Trackball: The large 57 mm ball provides increased accuracy and control. The weight also enables rapid movement across large distances as it can be "spun".
• Scroll Wheel: The scroll wheel is smooth and readily accessible, located above the center button.
• Ideal for Gamers and CAD Users: Superior performance coupled with the natural contour of the L-TRAC makes these trackballs Clearly Superior for all applications including general computing, gaming and Computer Aided Design (CAD). CAD users love it because you can drag a line one pixel even on today's high resolution displays of 1900X1080. Then, with a button stroke, they can fly around the screen to get general tasks done. Game players have called it an "almost unfair advantage", citing the fingertip control and precision, high performance tracking.
• Software for Additional Functionality: Superior-X Button Control software (included), allows the user to set different button settings depending on the application. This allows control of applications, such as media players, directly from the trackball (volume control via scroll wheel, etc.), putting maximum control at your fingertips. Superior-X also allows keystrokes to be recorded and played back with the click of a button, allowing repetitive application tasks to be completed quickly.

• Width: 3.75" (9.5 cm)
• Depth (front to back): 6.75" (17.1 cm)
• Height (to top of case): 1.75" (4.4 cm)
• Ball Diameter: 2.25" (5.7 cm)
• Ball Elevation From Housing: 0.75" (1.9 cm)
• Ball Type: High density phenolic
• Ball Suspension: Stainless steel rollers
• Resolution: User selectable 400, 800, or 1600 CPI (counts per inch)
• Tracking Speed: >30" per second
• Acceleration: 20 G
• Bearings: Dupont Delrin with Teflon
• Construction material: High impact ABS
• Cable: Double shielded USB
• Cable Length: 6.0' (1.8 m)
• Switches: 3 high quality low force stabilized switches rated at 5 million actuations, with over-travel protection..
• Scroll Wheel: Yes
• Compatibility:
  PC: 98SE, 2000, XP, Vista, 7, 8, 10
  Mac: Mac OS 9.8 (or later)
  Linux: most versions
  Other: Virtually any system supporting USB 2.0 Full Speed
• Interface: USB 2.0 Full Speed
• Warranty: 1 year

• This "Switch-Adapted" version of the L-Trac is equipped to accept up to three external switches for easier activation of the click functions. Left, Middle and Right clicks can be remotely activated by any standard switch equipped with a 1/8" (3.5 mm) mini phono plug. Attaching an external switch deactivates the on-board switch which would normally perform the specified function. This can be used to position switches wherever they will best meet the needs of the user.
• If you are new to a trackball expect that it will take a while to get accustomed to the different style of control. It is also a good idea to limit the amount of time you use it in the first while. Rather, build up to longer periods of usage by interchanging with a different mousing device or by Load Balancing (see next point).
• Load Balance Your Use: The freedom of an ambidextrous trackball lets you easily switch between left and right handed use. Make a point of using it with your non-dominant hand. Not only is this good for your dominant hand, which gets a break from working, it can slowly build dexterity and endurance which your non-dominant hand generally does not have. As a bonus, it is also a way of stimulating the other half of your brain, which is never a bad idea.
• Take Regular Breaks: If you find that you are experiencing discomfort in your fingers, especially in the learning stages - that is a good sign that you may want to take a break by switching to a different device or by swapping to the other hand. As with any device, make an effort to regularly change your usage, take breaks, and perform stretches. Some users find that the fingers can benefit from occasionally flexing them through a full range of movement, both extending and contracting them fully.
• Employ the "Dynamic Acceleration" feature to reduce unnecessary repetitive rotation movements when needing to move across large distances. Moving the ball quickly will cause it to cover a much greater distance than it will if rotated slowly for the same amount of rotation (i.e. a quarter of a rotation at a higher speed will cover a much greater distance than a quarter of a rotation at a slow speed).
• The build and design of the L-Trac offers a "race car" style of performance as compared to some other "luxury sedan" trackballs which outwardly appear more refined and may offer a smoother and softer ride. Users looking for a quality, responsive trackball with high performance will appreciate the L-Trac.
• Consider installing the Superior-X Button Control for WindowsNote: Follow the manufacturer's instructions for removing other input device software prior to installing the Superior-X software.
