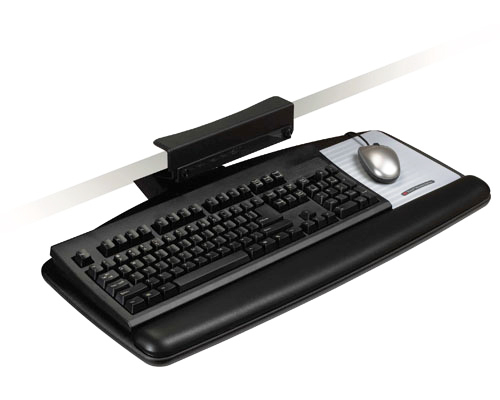

Drill-Free Attachable Articulating Arm and Tray

This tray allows easy height, tilt, and swivel positioning of your keyboard. While it does offer both height and tilt adjustment these cannot be adjusted independent of each other, i.e. any adjustment requires resetting of both height and tilt. It includes a full-width leatherette-covered gel palm pad (with anti-microbial protection; 3M model WR340LE) and a 7.25" x 6.25" 3M Precise Optical Mousing Surface (MP200PS) that can be positioned to the left or right. Installation is done without tools in four easy steps, typically in less than 10 minutes. The sliding track is attached via an adhesive strip and the front is secured by hooking the front lip over the desk edge. Also, the keyboard tray is storable, but not fully under the desk (3.0" protrusion); and the tray itself is made of coated MDF (Medium Density Fiber) board.

• Tray Dimensions:
  Width: 25.7" (65.3 cm)
  Depth:

  • At centre:12.0" (30.5 cm)
  • At edges:9.0" (22.9 cm)
• Track Depth: Depth: 17.75" (45.1 cm)
• Required Desk Thickness: 1" to 1.25"(2.5 cm to 3.2 cm)
• Height Adjustability:
  Maximum: 1.0" (2.5 cm) Above mounting surface
  Minimum: 4.5" (11.4 cm) Below mounting surface
• Tilt Adjustability: ±15°
• Height and Tilt Adjustment Mechanism: Star knob for both height and tilt simultaneously.
• Swivel: 360°
• Materials: Leatherette covered gel palm pad,3M Precise Optical mousing surface,3M adhesive strips to mount the track to the desk,tray is coated medium density fiber board.
